+GF+ - Agie Charmilles Form E600HU-EDM-GFX-2018-00001

Name: +GF+ Agie Charmilles Form E600
Brand: +GF+
SKU: HU-EDM-GFX-2018-00001
Price: 55000 EUR
Availability: InStock

55,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

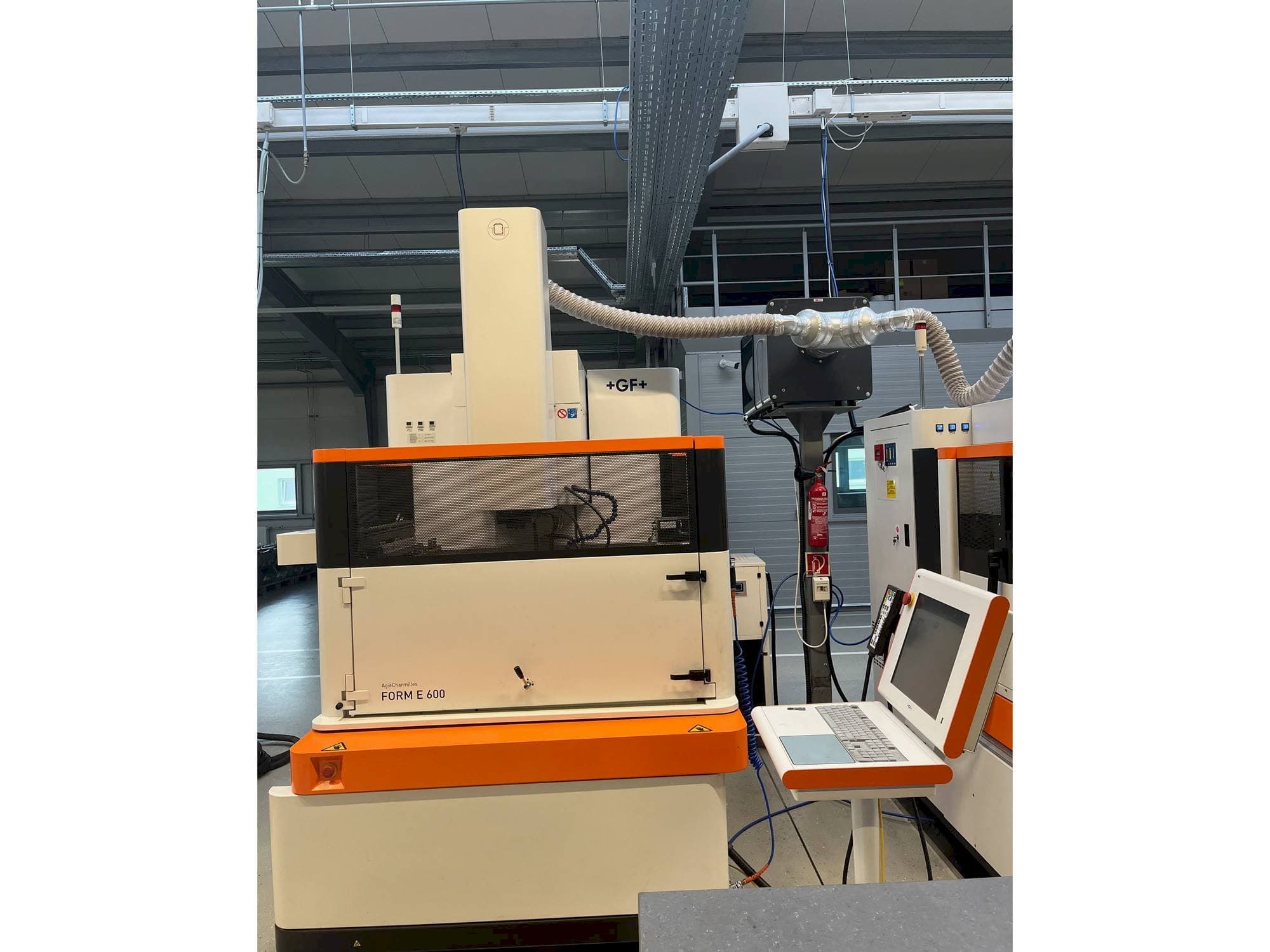

GF Agie Charmilles Form E600 Erosion machine

This GF Agie Charmilles Form E600 Erosion machine was manufactured in the year 2018 in China. It is equipped with a GF AC FORM HMI control unit.

Overview

brand: +GF+
year: 2018
MODEL: Agie Charmilles Form E600
production hours: 2000
application type: EDM
Location: Hungary
machine type: Die-Sinking EDM Machine

Technical Information - +GF+ Agie Charmilles Form E600

General Data

Measurements width: 2858 mm
Measurements depth: 1600 mm
Measurements height: 2700 mm
Machine weight: 4150 kg

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 400 MM

Table

Outer length: 800 mm
Outer width: 600 mm
Table load: 1000 kg

Additional Information

Additional equipment

Control system: AC FORM HMI with 17" touch screen
Linear tool changer capacity: 6 electrodes / Max electrode size: 75 mm diameter, 280 mm length / 4-position electrode changer
Best surface finish: Ra = 0.2 μm
Erowa ITS-50 automatic chuck
Glass scales on X/Y axes
Fire protection system
Optimal ambient temperature: 20°C / Relative humidity: < 80%

Machine Benefits

Technical Machine Benefits

Positioning resolution: 0. 1 μm
Max workpiece size: 1000 x 700 x 400 mm
Dielectric tank capacity: 650 l
Generator current: 140 a
C-axis max electrode weight: 25 kg / c-axis max rotation speed: 80 rpm
Integrated c-axis
Filtration: 6 built-in filter cartridges
Power supply: 3 x 400v, 50/60 hz
Compressed air: 6-8 bar
Lan connection: 10/100 mbit/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
