➤ Used +GF+ Mikron VCE 1000 Pro For Sale | gindumac.com

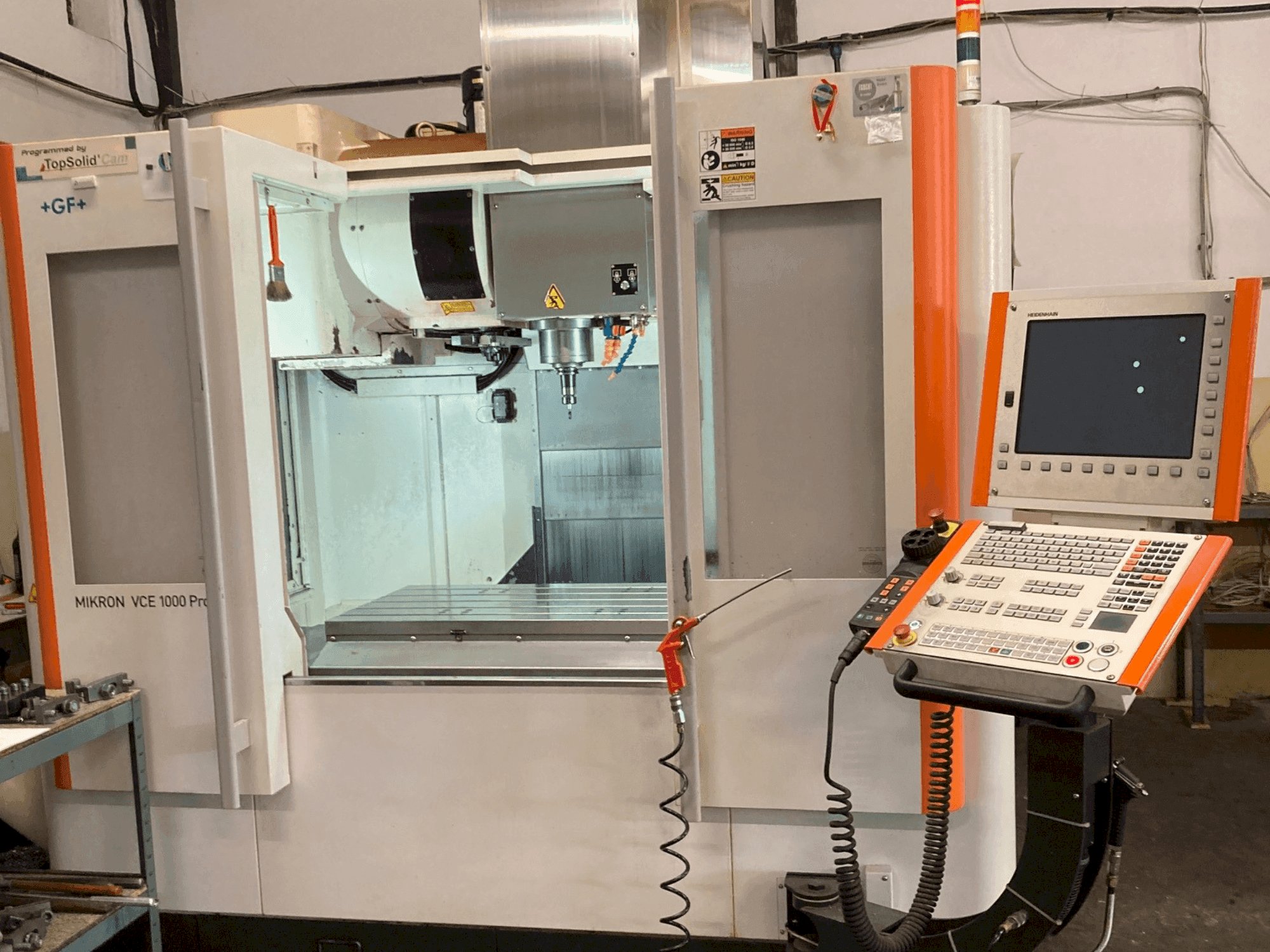

This 3-axis +GF+ Mikron VCE 1000 Pro was manufactured in 2015. It features a Heidenhain TNC 620 CNC control, a travel range of X: 1020 mm, Y: 560 mm, Z: 600 mm, and a side-mounted 24-position tool magazine. The machine supports a maximum spindle speed of 10,000 rpm, with an option for 16,000 rpm, and rapid travel speeds up to 40 m/min on X & Y axes. Contact us for more information about this machine.

Overview

brand: +GF+
year: 2015
MODEL: Mikron VCE 1000 Pro
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
Available from: 11/09/2025

Technical Information - +GF+ Mikron VCE 1000 Pro

General Data

Measurements width: 3010 mm
Measurements depth: 3300 mm
Measurements height: 2270 mm
Machine weight: 6500 kg

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 20 m/min

Workpiece

Workpiece weight: 1350 kg

Tools

Type of tool holder: ISO-B40 or HSK-A63

Additional Equipment

- Cooling System: Integrated filter unit and chip conveyor
- Tool Change Time: Short cycles thanks to fast tool changer system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Type: 3-axis vertical cnc machining center
- - Table size: 1000 × 560 mm
- - Coolant capacity: 300 liters
- - Maximum spindle speed option: 16000 rpm
- - Spindle torque: 149 nm
- - Tool changer type: side-mounted, 24-position tool magazine

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
