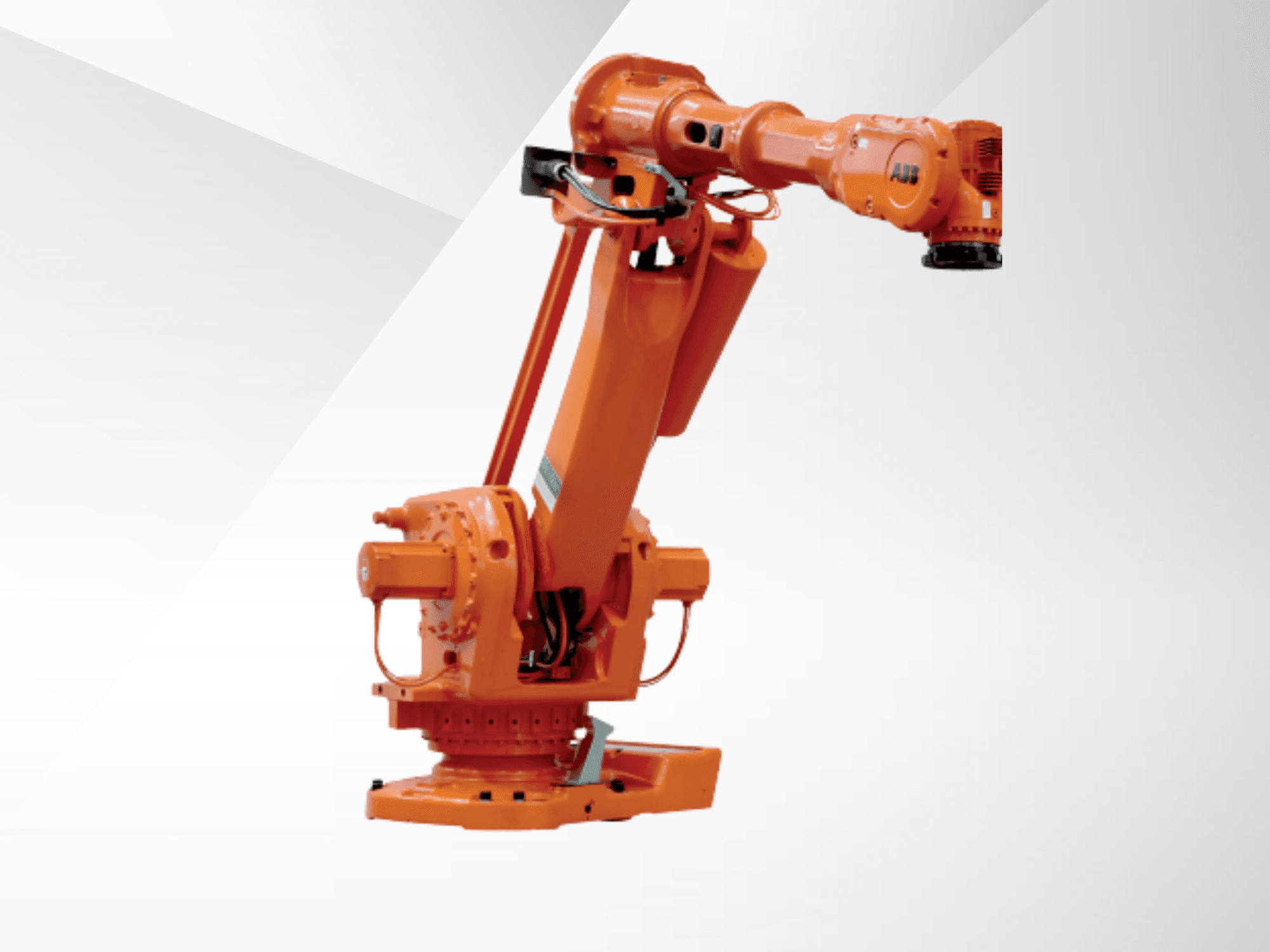

ABB IRB 6650S-90/3.9 robot arm in orange, side view, showcasing joints and base for industrial automation.
ABB IRB 6650S-90/3.9 robot arm in orange, side view, showcasing joints and base for industrial automation.

ABB - IRB 6650S-90/3.9DE-ROB-ABB-2023-00001

38,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 6-axis ABB IRB 6650S-90/3.9 was manufactured in 2023. It has a payload capacity of 90 kg and a maximum load of 2275 kg, making it suitable for various material handling applications. The robot features advanced safety systems, including SafeMove Pro and PROFIsafe F-Device, ensuring secure operation. If you are looking to get high-quality material handling capabilities, consider the ABB IRB 6650S-90/3.9 robot arm we have for sale. Contact us for further details.

Overview

  • brand: ABB
  • year: 2023
  • MODEL: IRB 6650S-90/3.9
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - ABB IRB 6650S-90/3.9

Dimensions

  • Machine Weight: 2275 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 90 kg
  • Max. Reach: 3900 mm

Additional Information

- Payload: 90 kg

- Maximum Load: 2275 kg

- Protection / Execution: Standard

- Supply Voltage: 400 V

- Service Socket Voltage: 230 V

- Control Cabinet Max Ambient Temperature: 45 °C

- Controller: IRC5 Single Cabinet Controller

- Manipulator Cable Length: 7 m

- FlexPendant Cable Length: 10 m

- Cable Reel: 10 m

- Operating System: RobotWare 6

- Software Extensions: World Zones, Path Recovery, Collision Detection, PC Interface, FlexPendant Interface, Multitasking, MultiFunction

- Safety Features: SafeMove Pro, Safety Module, PROFIsafe F-Device, Internal Safety Signals

- Connectivity & Fieldbus: ProfiNet I/O Master/Slave, Ethernet M12, Ethernet at connector field

- Additional Hardware / Drive: Additional drive unit ADU-790A (prepared for IRBT travel axis), Resolver connection for 7th axis at base

- Application / DressPack: Material Handling (Base to Axis 3)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
