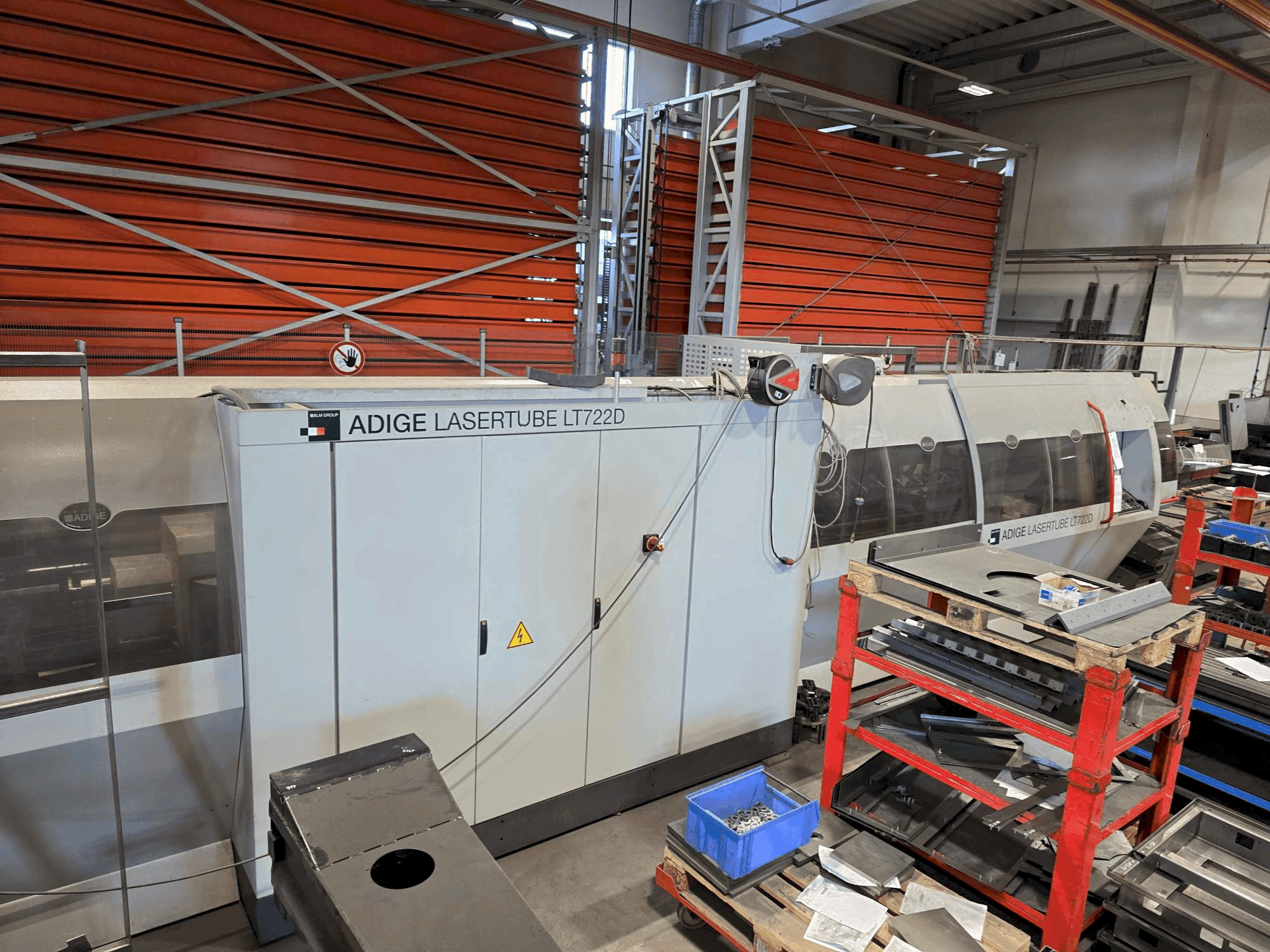

ADIGE - LASERTUBE LT722DDE-CUT-ADI-2021-00001

Additional Equipment

• - Automatic tube bundle loader for initial lengths between 3200 and 6500 mm
• - Loading with an overhead crane possible
• - 4000 kg loading capacity
• - Special lift loader equipment for square, rectangular, and flat-oval tubes
• - Tube separation with length measuring station
• - Equipment for a 6500 mm bundle loader for pipes with sensitive surfaces
• - Artube nesting software included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Main module of the automatic unloading system with 1-cnc-axis controlled support for the tube to be machined
  • - Program-controlled unloading
  • - Extension module of the automatic unloading system for part lengths up to 4500 mm
  • - Sorting of good parts to front (desk side) and rear (loader side)
  • - Sorting of cut pieces and offcuts into a cassette
  • - Suitable for processing open profiles (flat, l, c, and u-profiles)
  • - Specific mechanical devices and process modifications for open profiles

Extra information

• - Workpiece Suitable for processing tubes made of mild steel or stainless steel Round tube dimensions: 12 mm to 140 mm Square tube dimensions: 12 x 12 mm to 120 x 120 mm Rectangular/flat oval tube dimensions: 10 mm to maximum 140 mm side Maximum side difference for rectangular/flat oval tubes: 110 mm Inscribed in a © 170 mm circle with maximum tube weight: 15 kg/m, 100 kg maximum Tools PRECITEC AK-HP universal cutting head holder for non-contact distance control New capacitive distance sensor with reinforced ceramic part Pressure resistance up to 25 bar Mixed cooling (water and dry air) of the lens holder or upper area of the lens Cooling of the ceramic part and nozzle using dry air
