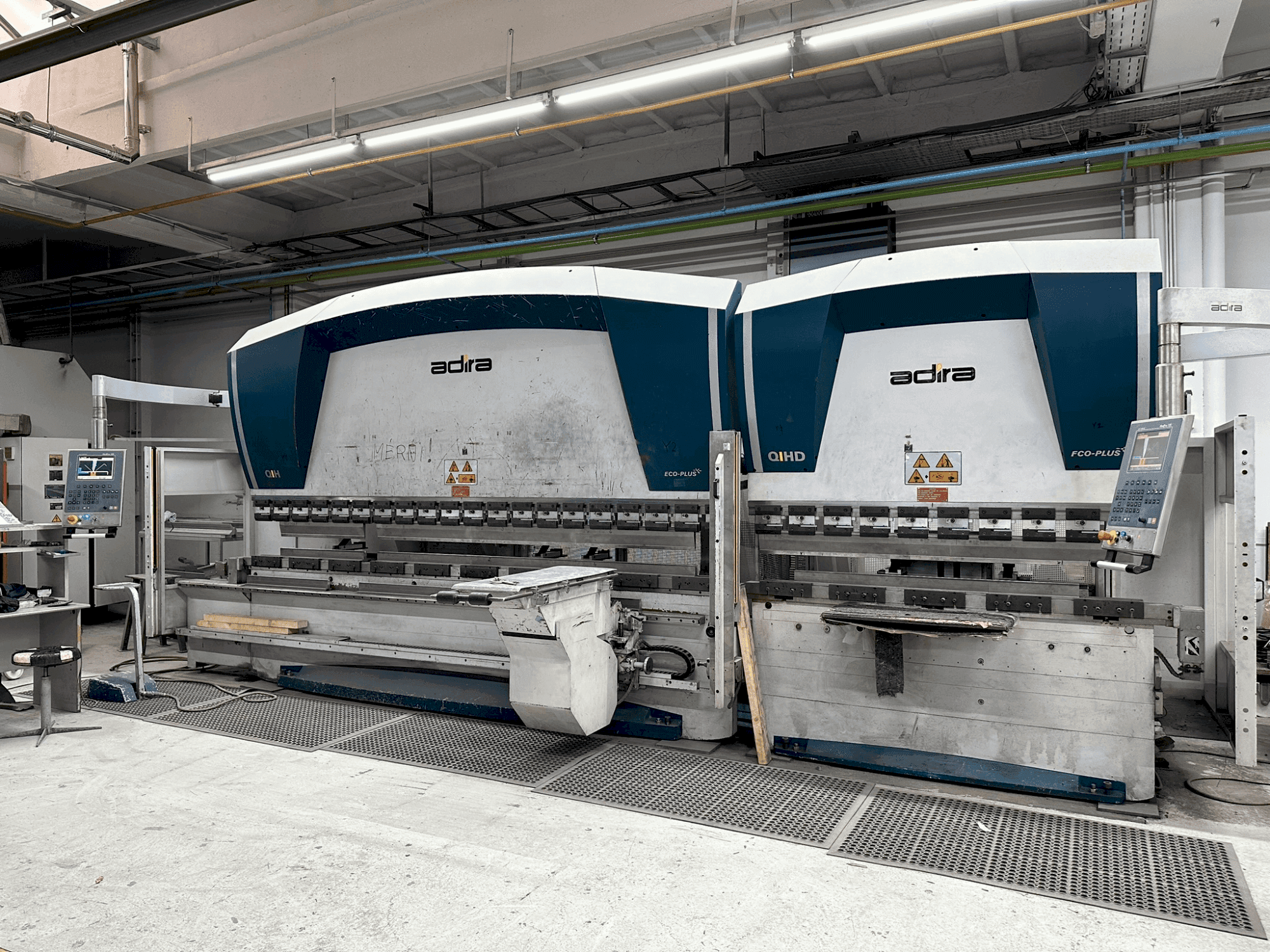

Front view of ADIRA QIHD-5040 + QIHD-5020  machine

ADIRA - QIHD-5040 + QIHD-5020HU-PRE-ADI-2008-00001

59,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ADIRA QIHD-5040 + QIHD-5020 bending was manufactured in 2008. It features a maximum bending length of 4000 mm and a machining length of 4050 mm for the QIHD-5040, and 2000 mm bending length with 2050 mm machining length for the QIHD-5020. Both models offer robust performance with significant force capacities and efficient speeds in pressing and returning. Ideal for high-precision tasks, the ADIRA press machine we have for sale is a valuable addition to any workshop. Contact us for more information.

Overview

  • brand: ADIRA
  • year: 2008
  • MODEL: QIHD-5040 + QIHD-5020
  • application type: Bending
  • Location: Hungary
  • machine type: Press Brake
  • availability: Immediately

Technical Information - ADIRA QIHD-5040 + QIHD-5020

Main drive

  • Pressing force: 1500 kN
  • Bending length: 4000 mm
  • Main motor power: 7.5 kW (10.1 HP) at 50 Hz, 9 kW (12.1 HP) at 60 Hz

Movement

  • X-AXIS Movement: 630 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Approach speed: 100 mm/s (3. 87 in/s)
      • - Pressing speed: 7 mm/s (0. 28 in/s) at 50 hz, 8 mm/s (0. 31 in/s) at 60 hz
      • - Return speed: 65 mm/s (2. 52 in/s) at 50 hz, 80 mm/s (3. 1 in/s) at 60 hz
      • - Machining length: 4050 mm (13. 28 feet)
      • - Distance between columns: 3150 mm (10. 33 feet)
      • - Frame depth: 400 mm (15. 7 inches)
      • - Maximum stroke length: 160 mm (6. 3 inches)
      • - Free height (without tool): 400 mm (15. 7 inches)
      • - Closed height (without tool): 240 mm (9. 4 inches)
      • - Standard upper beam width: 195 mm (7. 7 inches)
    • Qualitative Machine Benefits:
      • - Back gauge speed:induction motor: 125 mm/s (0. 41 in/s)
      • - Servo motor: 500 mm/s (1. 64 in/s)

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
