AGIE - AGIETRON INTEGRAL 2BG-EDM-AGI-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used AGIE AGIETRON INTEGRAL 2 For Sale | gindumac.com

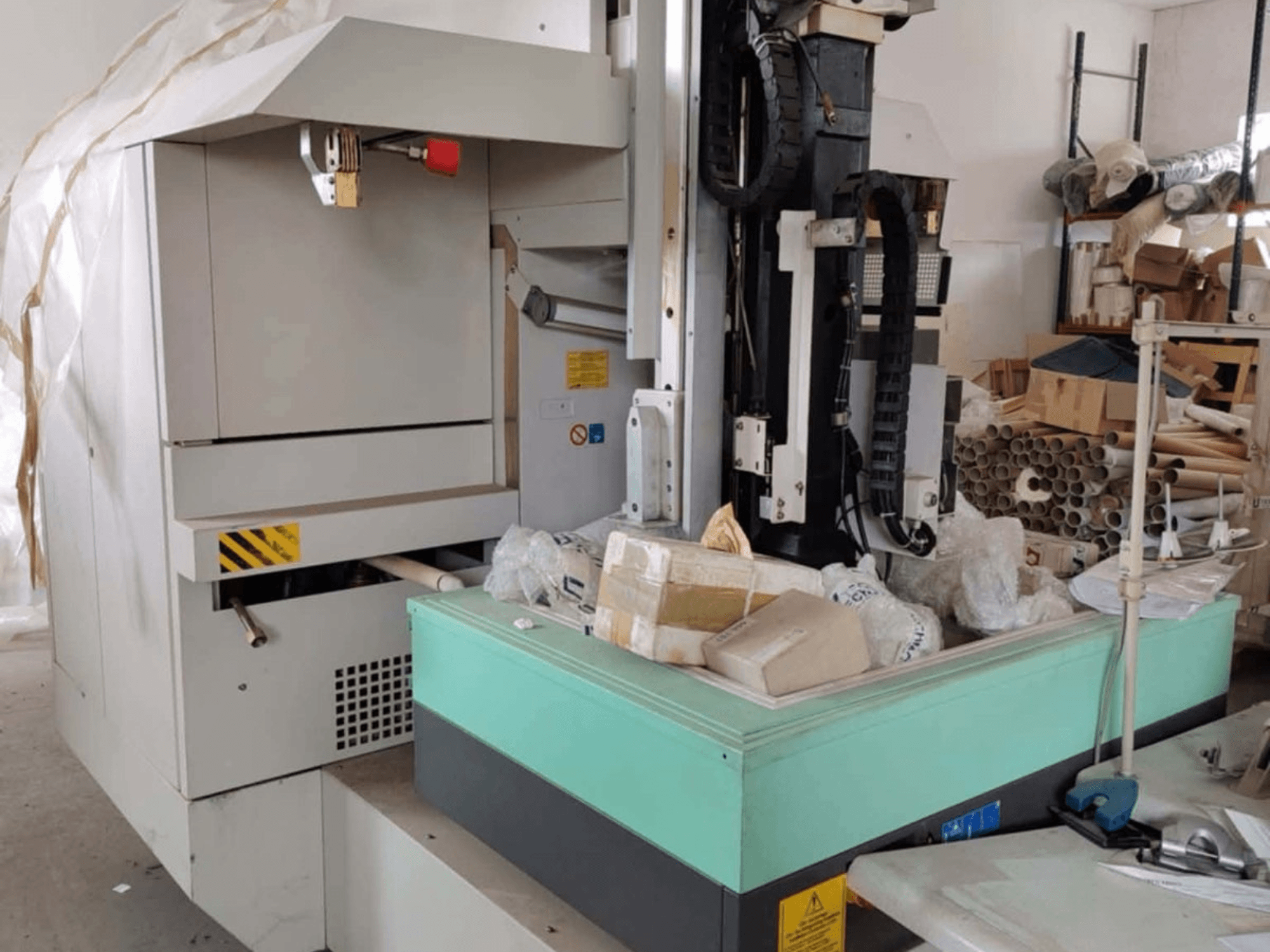

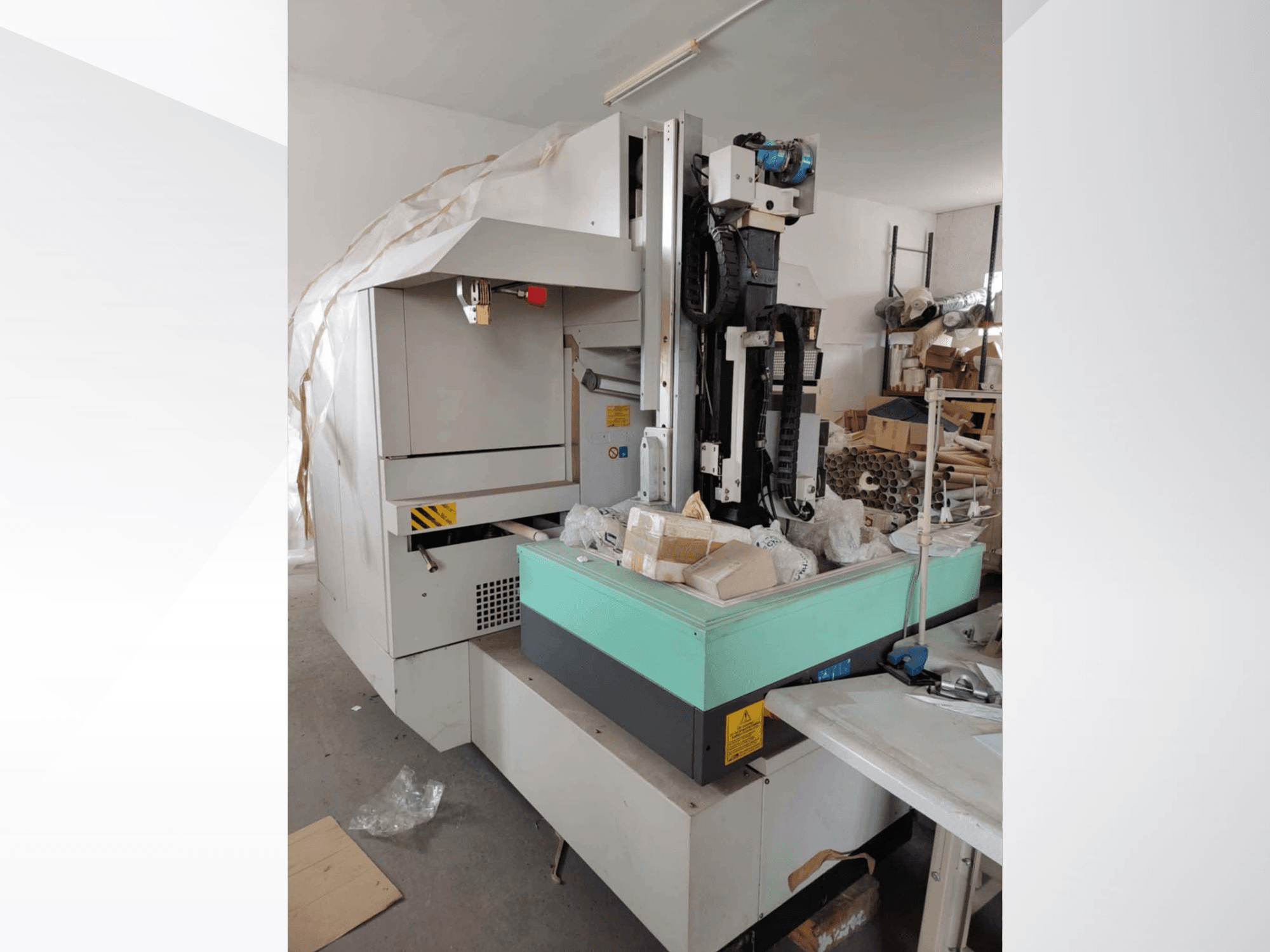

This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details.
Overview
- brand: AGIE
- year: 2006
- MODEL: AGIETRON INTEGRAL 2
- application type: EDM
- Location: Bulgaria
- machine type: Die-Sinking EDM Machine
Technical Information - AGIE AGIETRON INTEGRAL 2
Dimensions
- Machine Height: 2580 mm
- Machine Length: 1630 mm
- Machine Weight: 3200 kg
- Machine Width: 3350 mm
Movement
- Number of Axes: 3
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 350 mm
Additional Information
Units available: 2
Workpiece size: 840 x 670 x 250 mm
Weight: 400 kg
Number of electrodes: 28
Max. electrode weight: 100 kg
Circuit diagram: 625942.8
Electrical: 3 × 400 V, 50 Hz, 6.1 kVA, 8.8 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
