- ALESA MONTI FT45TG (1998) Milling machine

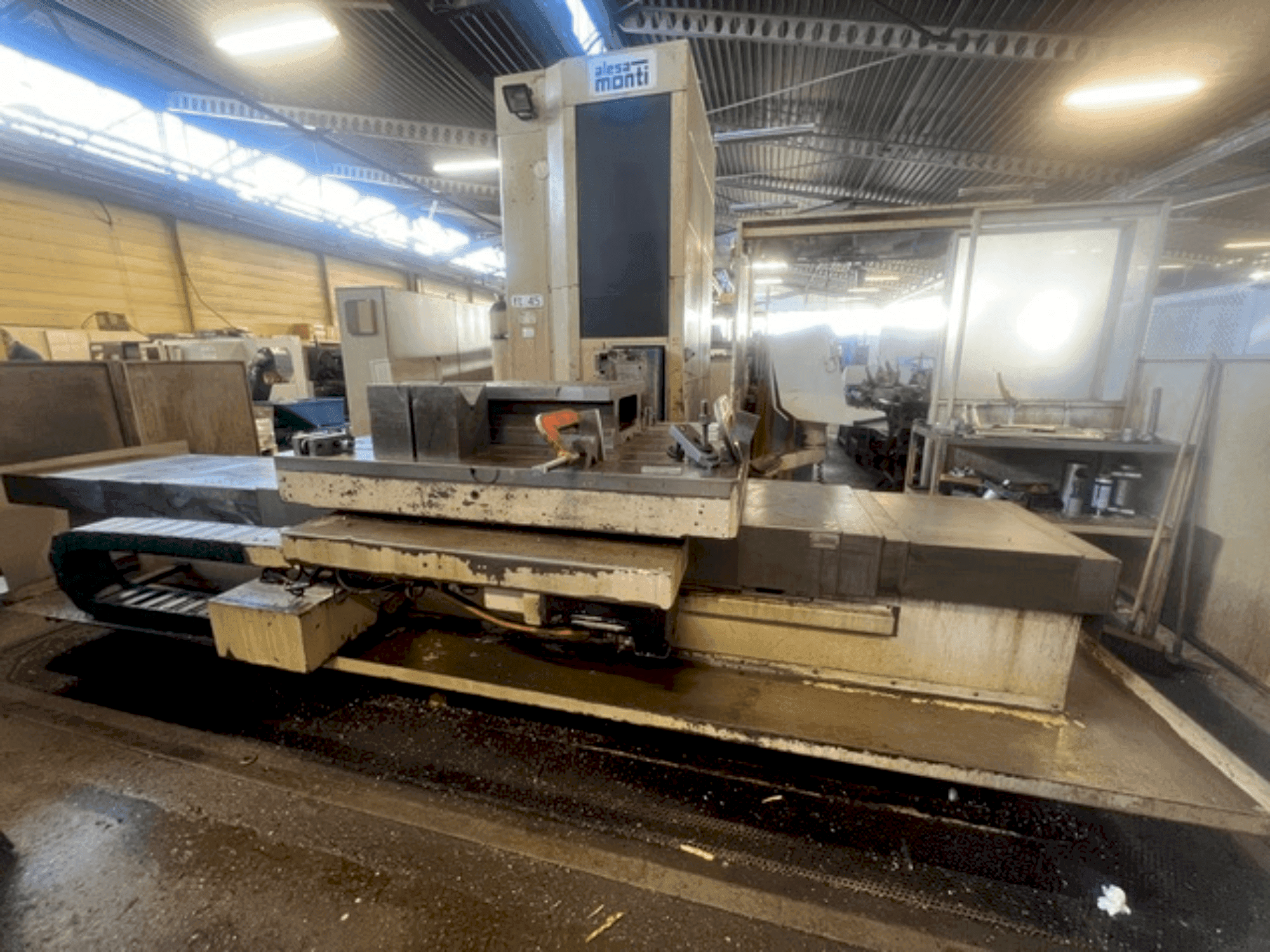

This ALESA MONTI FT45TG Milling machine was manufactured in the year 1998 in Italy. It is equipped with a HEIDENHAIN TNC 430 Control unit. The milling head fixe have 2 types of spindle (horizontal and vertical).
Overview
- brand: ALESA MONTI
- year: 1998
- MODEL: FT45TG
- application type: Milling
- Location: France
- machine type: Milling Machine
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - ALESA MONTI FT45TG
General Data
- Machine weight: 23000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 430
Main drive
- Number of spindles: 2
- Spindle motor power: 24 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 2500 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 1200 mm
- W-Axis Movement: 800 mm
- B-AXIS Movement: 360° MM
Additional Information
- Technical Machine Benefits:
- - Table dimension 1500x1000 mm
- - Weight allow on table 4000 kg
- - Working speed 0 à 2000 mm/mn
- - Rapid speed 10000 mm/mn
- - Working spind b axis 0,1 t/mn
- - Rapid speed b axis 1 t/mn
- - Spindle nose so 50
- - Spindle speed gear 2 ranges 500/ 2000 t/mn - 749/3000 t/mn
- - Milling head fixe 2 spinale horizontal/vertical
- - Carterizatin
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
