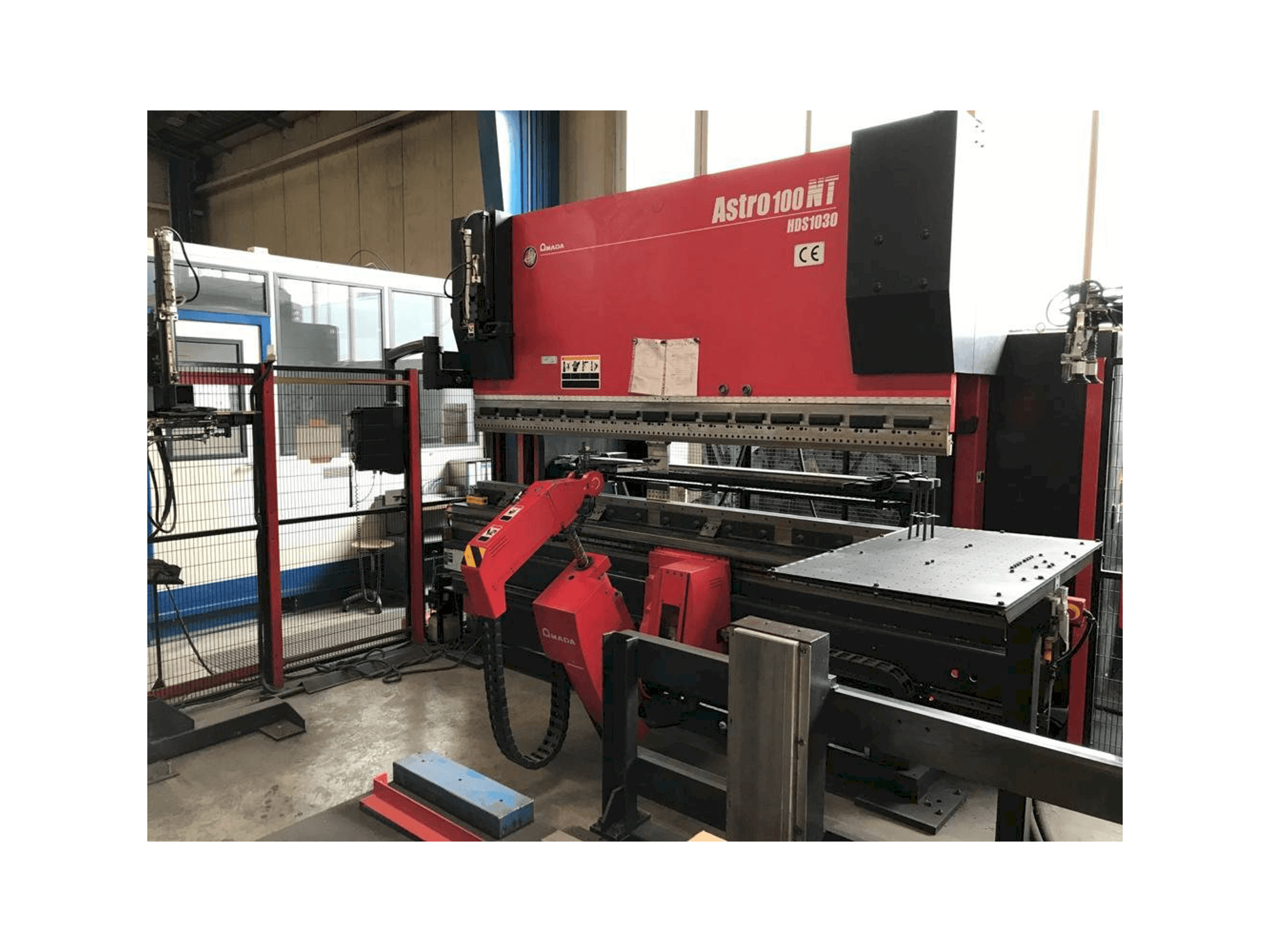

Front view of AMADA Astra 100-NT HDS-1030NTR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA ASTRO 100-NT HDS-1030NTR

Photo Gallery

AMADA - ASTRO 100-NT HDS-1030NTRDE-BEN-AMA-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

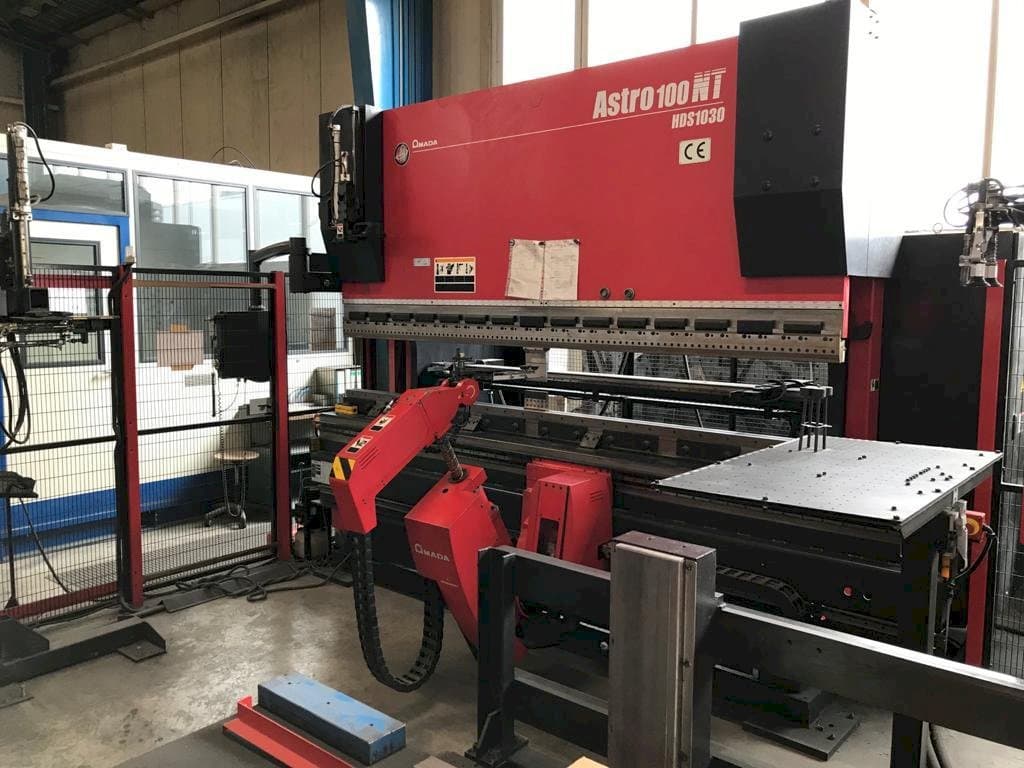

AMADA ASTRO 100-NT HDS-1030NTR Bending and Punching Machine

This AMADA ASTRO 100-NT HDS-1030NTR Bending and Punching Machine was built in 2004 in Japan. It is operated through a AMADA AMNC II-PC control unit. This machine can work with a pressing force of 1000 kN, and bending length of 3000 mm. It includes: Press brake: HDS-1030NTR, Bending robot: ASTRO-100NT, Loading and unloading robot: ASTRO-MP20.

Overview

brand: AMADA
year: 2004
MODEL: ASTRO 100-NT HDS-1030NTR
application type: Bending
Location: Germany
machine type: Press Brake
control unit brand: AMADA

Technical Information - AMADA ASTRO 100-NT HDS-1030NTR

General Data

Machine weight: 8700 kg

Control Unit

Model: AMNC II-PC
Brand: AMADA

Main drive

Pressing force: 1000 kN
Bending length: 3000 mm
Throat: 415 mm
Stroke: 200 mm
Number of axis: 7

Media

Power consumption: 15 kVA

Additional Information

Additional equipment

ASTRO-100 NT Bending Robot: Weight 450 kg
Control unit AMADA AMNC II - AS100CE
Max. Capacity (incl. gripper) 20 kg, Number of controlled axes 5
Length of linear axis 3080 mm, Max. Material thickness 0.6 - 2.5 mm
Max. Blank size 800 x 1000 mm, 300 x 1800 mm, Drive AC servo motors
ASTRO-MP 20 Loading and unloading robot:
Control unit AMADA AMNC II - AS100CE
Max. Capacity (incl. gripper) 20 kg, Number of controlled axes 6
Max. Workpiece dimensions as ASTRO-100 NT
Stack height raw material 500 mm, Drive AC servo motors

Machine Benefits

Technical Machine Benefits

Drive servo-hydraulic
Deflection compensation active hydraulic cylinder
Passage between machine uprights 2700 mm
Installation height 500 mm
Adjustment range back gauge 600 mm
Width of worktable 60 mm
Speed of infeed/return stroke 200 mm/s
Max. Work 20 mm/s
Oil volume 57 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
