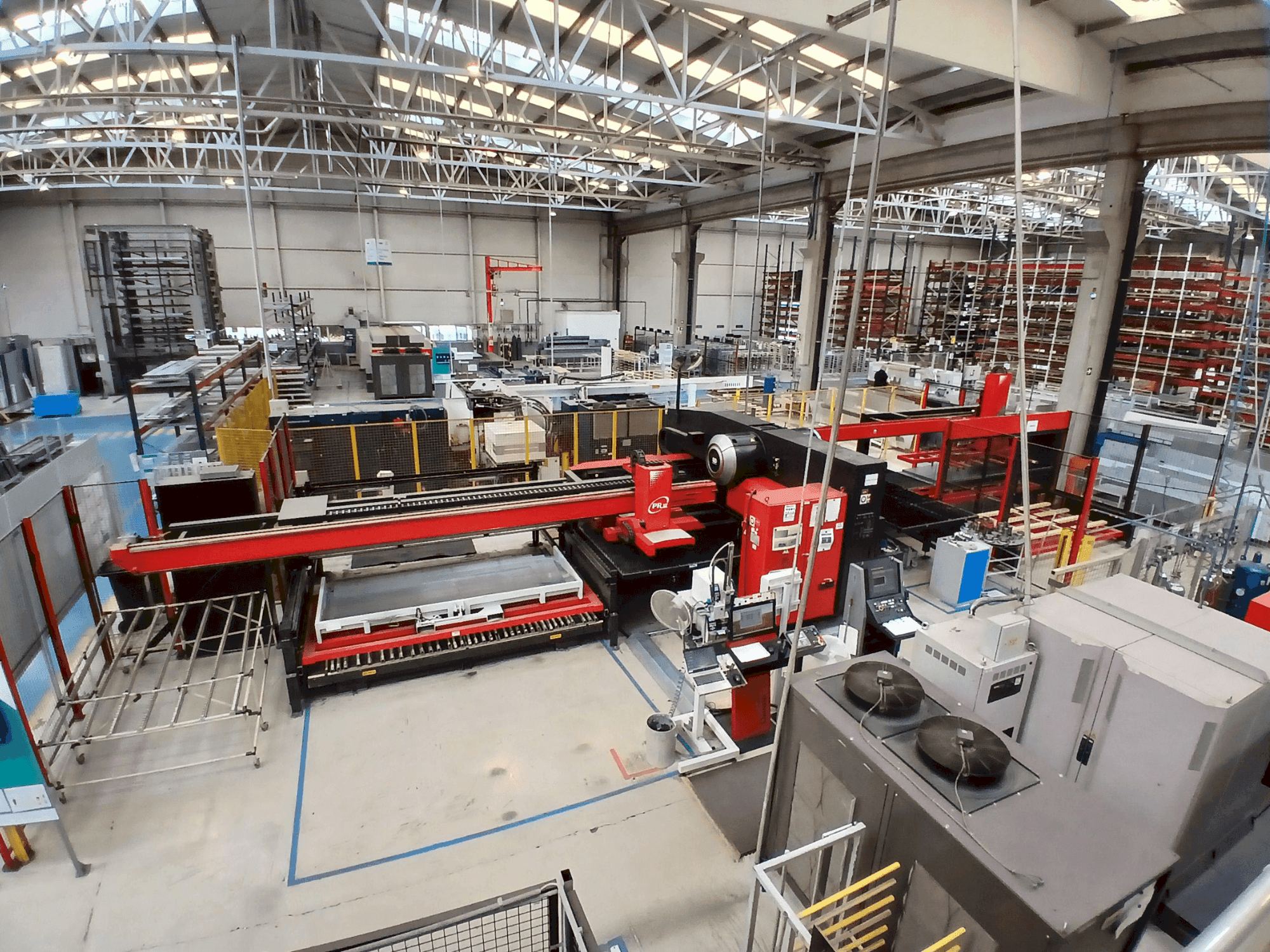

This 4-axis AMADA EMZ3612M2 was manufactured in 2016, featuring a high-speed servo-electric turret punch press with twin AC servo direct drive. It boasts a 33-ton press capacity and an AMNC-F / AMNC-4ie CNC system for enhanced control. The machine handles sheet formats up to 3050x1525 mm and includes a "King" turret with up to 58 stations. Energy efficiency is optimized with AC servo drives. If you are looking to get high-quality punching capabilities consider the AMADA EMZ3612M2 machine we have for sale. Contact us for more information.
Overview
- brand: AMADA
- year: 2016
- MODEL: EMZ 3612 M2
- application type: Punching
- Location: Hungary
- machine type: Turret Punch Press
Technical Information - AMADA EMZ 3612 M2
Dimensions
- Machine Depth: 5436 mm
- Machine Height: 2342 mm
- Machine Weight: 21500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 3050 mm
- Y-axis Travel: 1525 mm
- Z-axis Travel: 37 mm
Additional Information
Additional equipment
- Air-blow oil-mist lubrication
- Slug-vacuum system
- Digital tool ID / barcode system
- Integrated tapping: inch/metric taps (M2.5–M8)
- Marking & deburring tools: on-board marking and deburring options
Machine Benefits
Technical Machine Benefits
- Type: high-speed servo-electric turret punch press with twin ac servo direct drive
- Press capacity: 33 tons (300 kn)
- Maximum sheet format (without repositioning): 3050 × 1525 mm
- Turret type: “king” turret – triple-track, available in 55-station multi-purpose or 58-station version, with 4 auto-index stations including tapping units
- Turret rotation speed: up to 30 rpm
- Feed clearance: 25 mm between turret plates
- Max sheet thickness: 4. 5 mm
- Positioning speed (x/y): 100 m/min / 80 m/min
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
