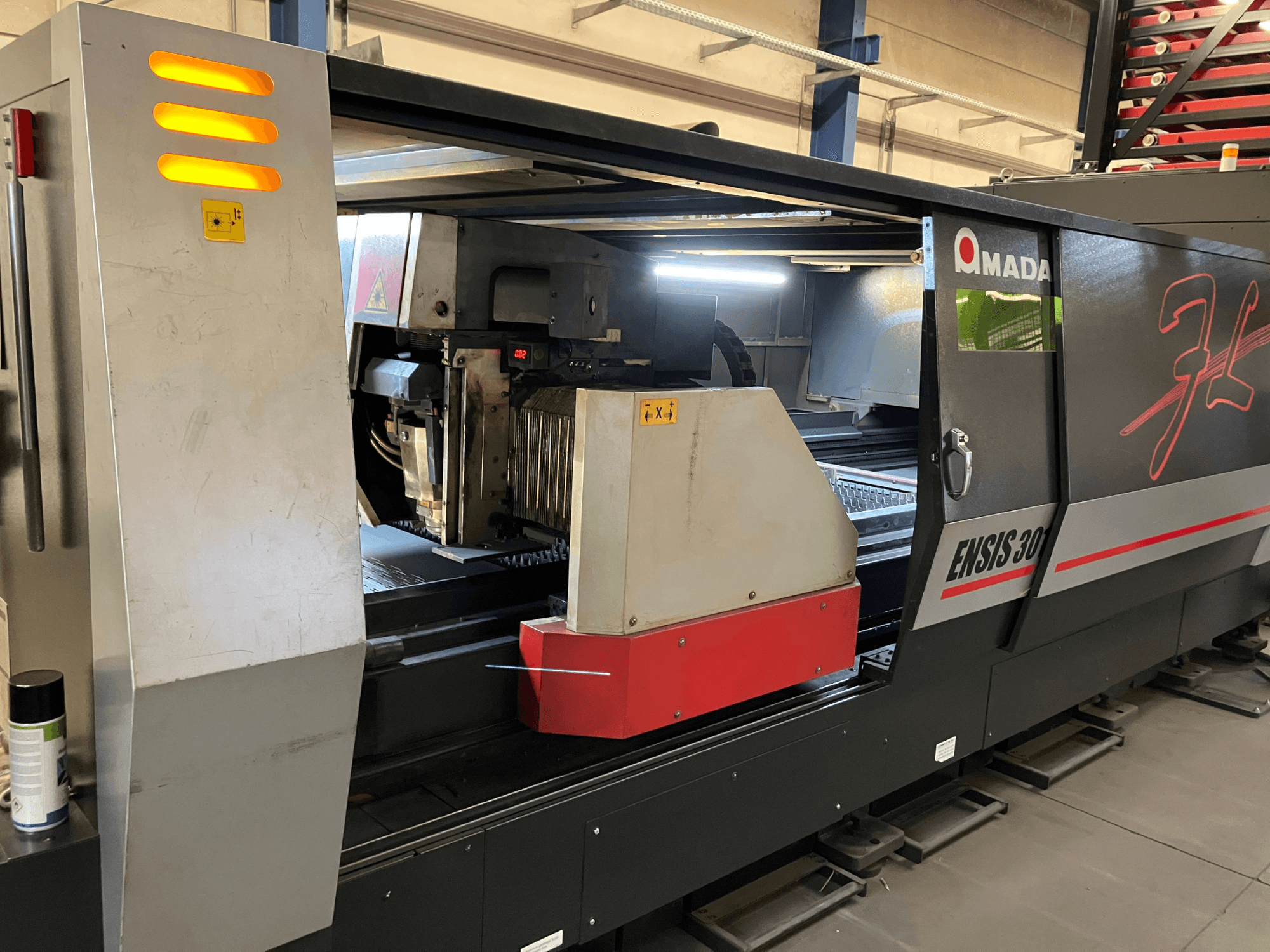

This 3-axis AMADA ENSIS 3015 AJ fiber laser cutting machine was manufactured in 2018. It features a powerful 3000 W fiber laser and a travel range of 3070 x 1550 mm. The machine includes a nozzle changer with 16 stations and a water chiller for efficient cooling. If you are looking to get high-quality cutting capabilities, consider the AMADA ENSIS 3015 AJ machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2018
- MODEL: ENSIS 3015 AJ
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- control unit brand:
Technical Information - AMADA ENSIS 3015 AJ
Dimensions
- Machine Height: 5800 mm
Movement
- Number of Axes: 3
- X-axis Travel: 3070 mm
- Y-axis Travel: 1550 mm
Technical Specification
- Laser Power: 3 kW
Additional Information
Laser power (oscillator plate): 3.15 kW
Control unit: AMNC 3i (21.5" screen)
Power required: 10.4 kVA
Voltage: 200V AC (3-phase)
Frequency: 50/60 Hz
Mass of machine: 400 kg (oscillator unit)
Nozzle changer: 16 stations
Additional equipment
Automation: AMADA ASF 3015 S (ASF EU automation)
Total pallets: 12 (including cutting pallets)
Cutting pallets: 2
Raw material pallets: 7
Unloading pallets: 3
Max. sheet weight: 920 kg
Max. load capacity per pallet: 3000 kg
Max. sheet dimensions: 3050 x 1550 mm
Min. sheet dimensions: 2000 x 1000 mm
Sheet thickness (auto mode): 0.8–25 mm
Machine height: 5.3 m
Electrical connection: 3 x 400V AC + N + PE / 40A
Compressed air: 6 bar, 1000 l/min
Features: 2nd unloading station included, hinge belt conveyor SRF 063 for scrap transport
X-direction conveyor
Cooling system: Water chiller VBOXX 15B
Extraction system: Dust collector DC1500/8/9 SB
ADSS Basic
Water assist cutting system
Profibus for loading/unloading
Water demineralizer: Type S & Type B5
Included software: VPSS3i Blank Solution Pack
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
