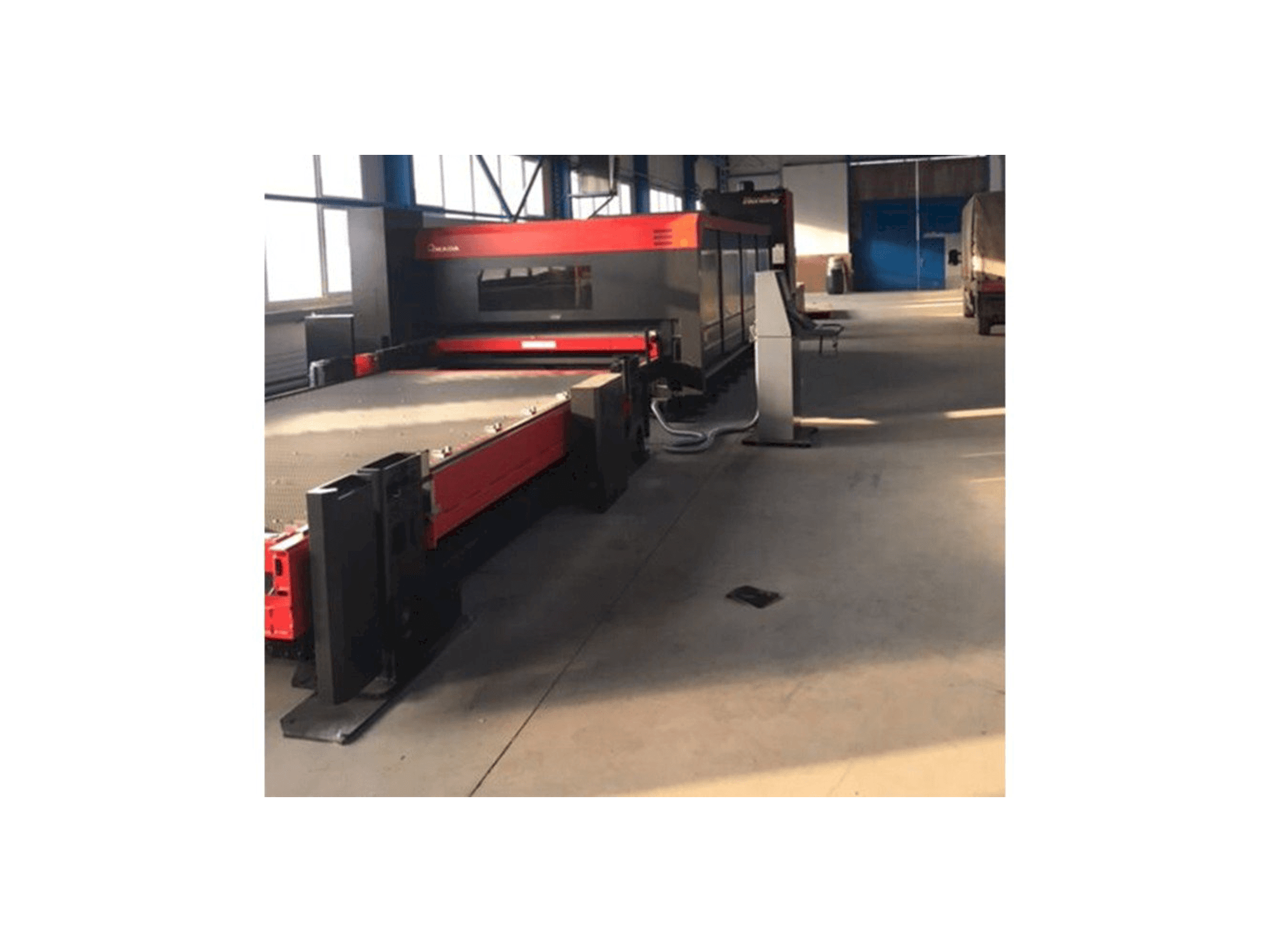

Front view of AMADA FO-4222 M2 NT machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA FO-4222 M2 NT

AMADA - FO-4222 M2 NTSK-LAS-AMA-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
AMADA FO-4222 M2 NT Laser Cutting Machine

This AMADA FO-4222 M2 NT Laser Cutting Machine was manufactured in Japan in the year 2016. It has been working for 4241 hours. It is equipped with a Fanuc AF-4000i – C control unit. The machine operates with a laser power 4 kW, and a rotation axis chuck index for tubes up to 115 mm diameter and for square tube max. dia. 70 mm.

Overview

brand: AMADA
year: 2016
MODEL: FO-4222 M2 NT
production hours: 4241
application type: Cutting
Location: Slovakia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA FO-4222 M2 NT

Control Unit

Model: AF-4000i – C
Brand: FANUC

Main drive

Laserpower: 4 KW

Movement

X-AXIS Movement: 4200 mm
Y-AXIS Movement: 2200 mm
Z-AXIS Movement: 200 mm

Workpiece

Workpiece weight: 1500 KG

Max Material thickness

Steel: 20 mm
Aluminum: 10 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotation axis chuck index for tubes up to 115 mm diameter, square tube max. Dia. 70 mm
- - Working area 4000 x 2000 mm
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
