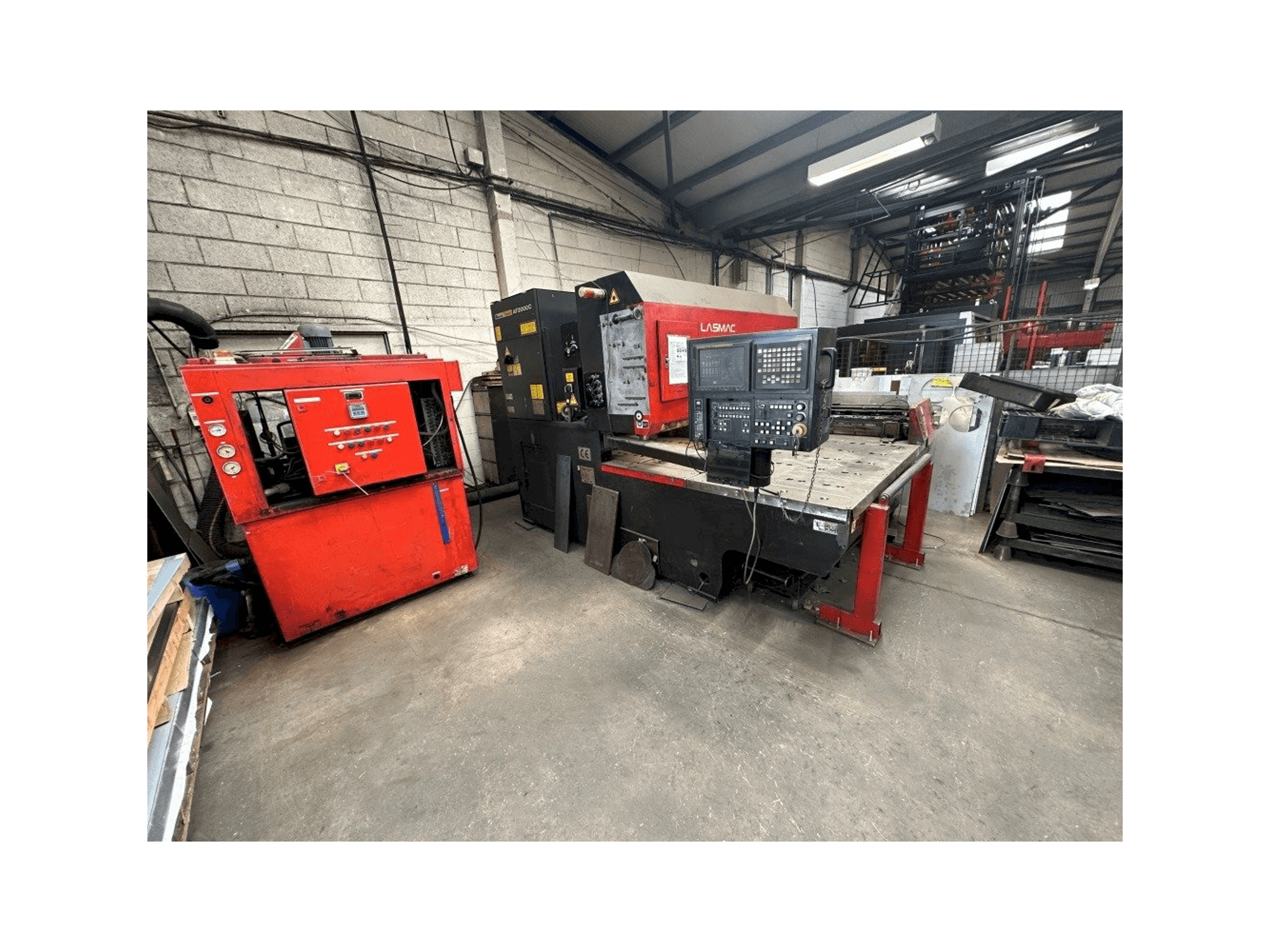

Front view of AMADA Lasmac LC1212A3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA Lasmac LC1212A3

AMADA - Lasmac LC1212A3IE-LAS-AMA-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
AMADA Lasmac LC1212A3 Laser Cutting Machine

This AMADA Lasmac LC1212A3 Laser Cutting Machine was made in 1999 in Japan and has 36641 hours. It is equipped with a Fanuc Series 160i-L control unit. The machine has a laser power of 2 kW.

Overview

brand: AMADA
year: 1999
MODEL: Lasmac LC1212A3
production hours: 36641
application type: Cutting
Location: Ireland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Lasmac LC1212A3

General Data

Measurements width: 3125 mm
Measurements depth: 2230 mm
Measurements height: 2275 mm
Machine weight: 4600 kg

Control Unit

Model: Series 160i-L
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Laserpower: 2 kw
Plasma brand: Fanuc
Laser type: CO2

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 1270 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece x: 2540 mm
Workpiece y: 1270 mm
Workpiece weight: 210 kg

Max Material thickness

Steel: 12 mm
Stainless steel: 9 mm
Aluminum: 4 mm

Media

Main electronic connection: 400 V
Power consumption: 43 kva
Internal cooling: Yes

Additional Equipment

- Tricool 2152-50AMS Chiller
- 5" & 7.5" Laser Heads
- DCE Unicell Extraction Unit
- Optical Vision System on laser

Additional Information

Machine history

Material type: Mildsteel
material thickness: 3 mm
End product: Sub contract parts
Industries: Sub contract laser cutting

Machine Benefits

Technical Machine Benefits:
- - Laser cutting head: 5 & 7. 5"
- - Last resonator maintenance: 06/04/2022
- - Optical vision system for part transfer from punching machine
Qualitative Machine Benefits:
- - Well maintained machine
- - Full service history

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
