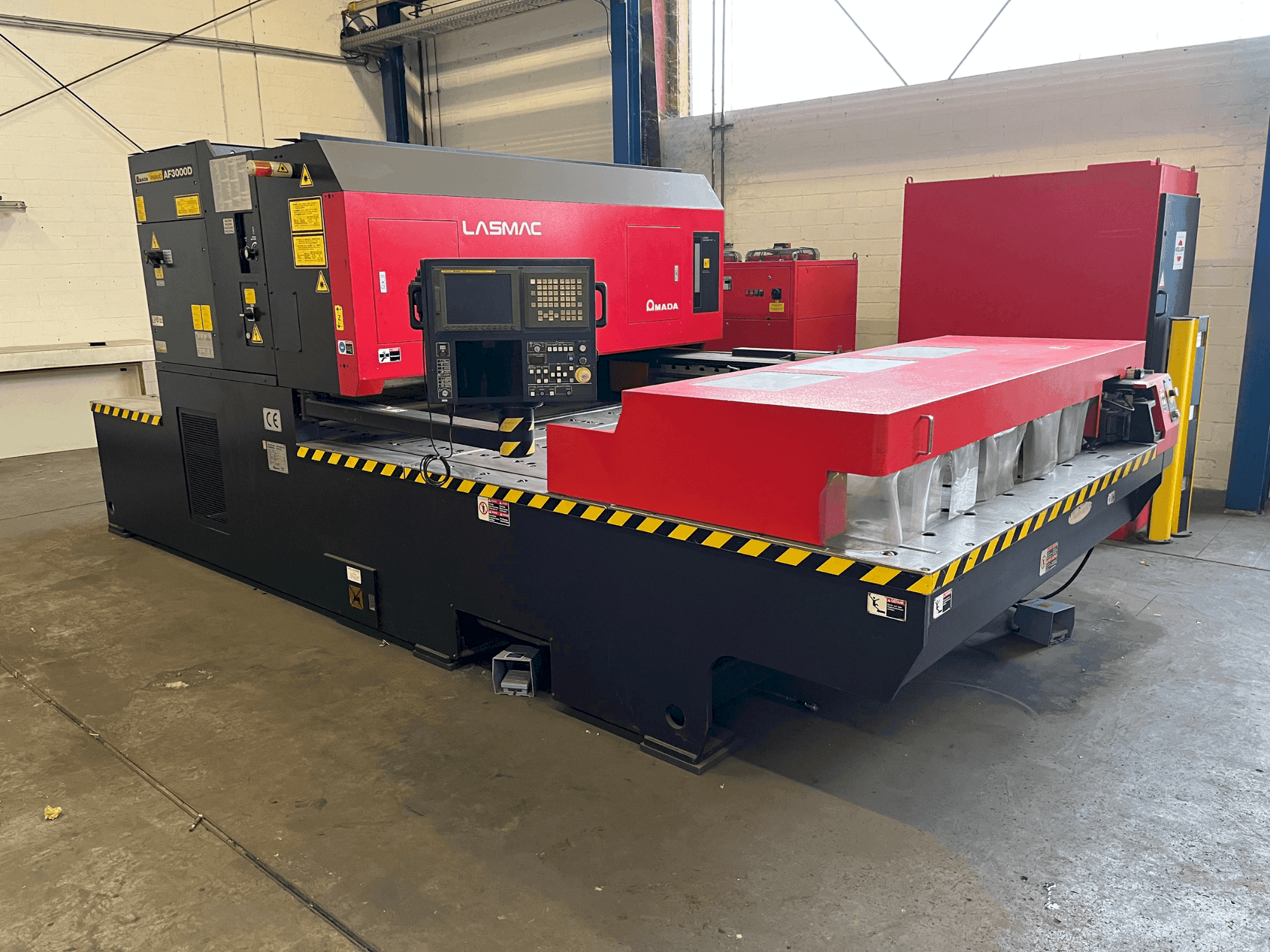

Front view of AMADA LC-2415 A3  machine

AMADA - LC-2415 A3DE-LAS-AMA-1999-00002

9,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This AMADA LC-2415 A3 Laser cutting machine was manufactured in the year 1999 in Japan. It is equipped with a FANUC Series 160i-L control unit and a FANUC C-3000 D laser with 3kW laser power. The laser can cut 12 mm mild steel and 6 mm stainless steel. See tech specs (DE) as PDF attached.

Overview

  • brand: AMADA
  • year: 1999
  • MODEL: LC-2415 A3
  • production hours: 32500
  • application type: Laser Cutting
  • Location: Germany
  • machine type: Laser Cutting Machines (CO2)
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - AMADA LC-2415 A3

General Data

  • Measurements width: 2500 MM
  • Measurements depth: 5654 MM
  • Measurements height: 2275 MM
  • Machine weight: 6400 kg

Control Unit

  • Brand: FANUC
  • Model: Series 160i-L

Main drive

  • Laserpower: 3 KW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2520 MM
  • X-AXIS Rapid traverse: 80 M/MIN
  • Y-AXIS Movement: 1550 MM
  • Y-AXIS Rapid traverse: 80 M/MIN
  • Z-AXIS Movement: 300 MM
  • Z-AXIS Rapid traverse: 60 M/MIN

Workpiece

  • Workpiece x: 5040 mm
  • Workpiece y: 1550 mm
  • Workpiece weight: 330 KG

Max Material thickness

  • Steel: 12 mm
  • Stainless steel: 6 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Cutting speed x- and y-axis 20 m/min
      • - Max. Sheet dimensions 5040 x 1550 mm
      • - Positioning accuracy 0. 01 mm/500 mm
      • - Repeatability +/- 0. 005 mm
      • - Height of the table 820 mm
      • - Size of the opening 550 x 1550 mm
    • Qualitative Machine Benefits:
      • - The laser can cut 12 mm mild steel and 6 mm stainless steel

    Extra information

    • - Supply voltage 200 V (10 %) // Main frequency 50/60 Hz (1 Hz) // Installed power 10 k/A, 3 phases // Compressed air requirement (machine functions) 6 bar; 20 m3 / h // Compressed air requirement (compressed air as cutting gas) additional 17 bar; 63 m3 / h
