AMADA PEGA 357
AMADA - PEGA 357
1993
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA PEGA 357 Turret Punching Machine

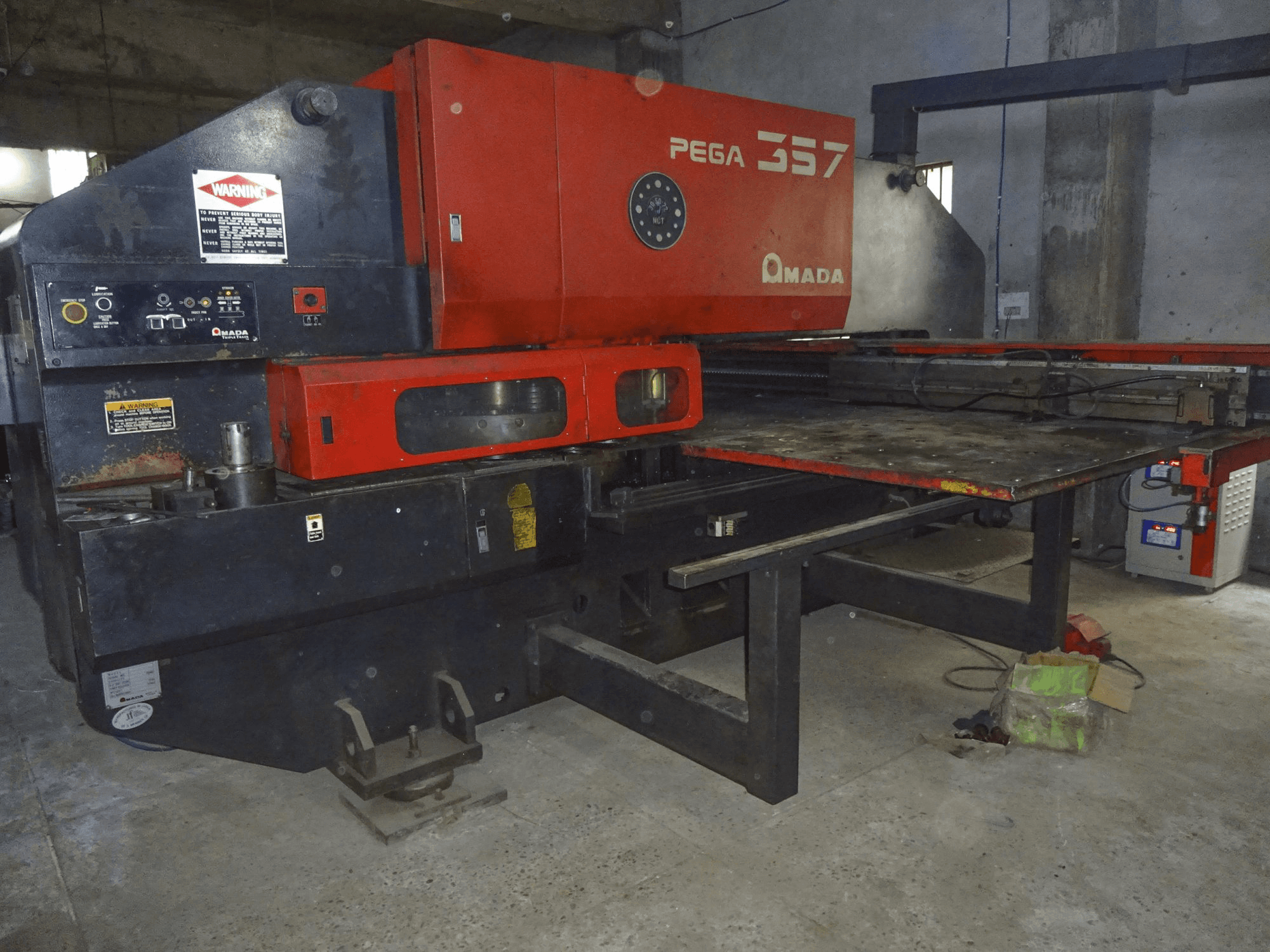

This AMADA PEGA 357 Turret Punching Machine from 1993 was built in Japan and has been active for 48600 production hours. Operated through an Amadan 04PC Control unit, the model is a large format of punching machine and offers easily available tools and spare parts. In the past, this machine has handled mainly mild steel of up to 2 mm of thickness. A stabilizer and 30 complementary tools are included as additional equipment.
Overview
- brand: AMADA
- year: 1993
- MODEL: PEGA 357
- production hours: 48600
- application type: Punching
- Location: India
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: AMADA
- GINDUMAC ID: IN-PUN-AMA-1993-00002
Technical Information
General Data
- Measurements width: 3770 mm
- Measurements depth: 4931 mm
- Measurements height: 2315 mm
- Machine weight: 11600 kg
Control Unit
- Brand: AMADA
- Model: AMADAN 04PC
- Interface: RS232
Main drive
- Punching force: 300 kN
- Maximum sheet thickness: 4 mm
Movement
- X-AXIS Movement: 1830 mm
- Y-AXIS Movement: 1270 mm
Tools
- Number of index: 4
- Number of stations: 45
- Max tool diameter: 114.3 mm
Max Material thickness
- Steel: 4 mm
- Stainless steel: 2 mm
- Aluminum: 5 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 18 kVA
- Air pressure: 6 bar
- Lubrication tank: 1 L
- Oil tank: 80 L
Additional Equipment
- - 30x tools
- - Stabilizer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
