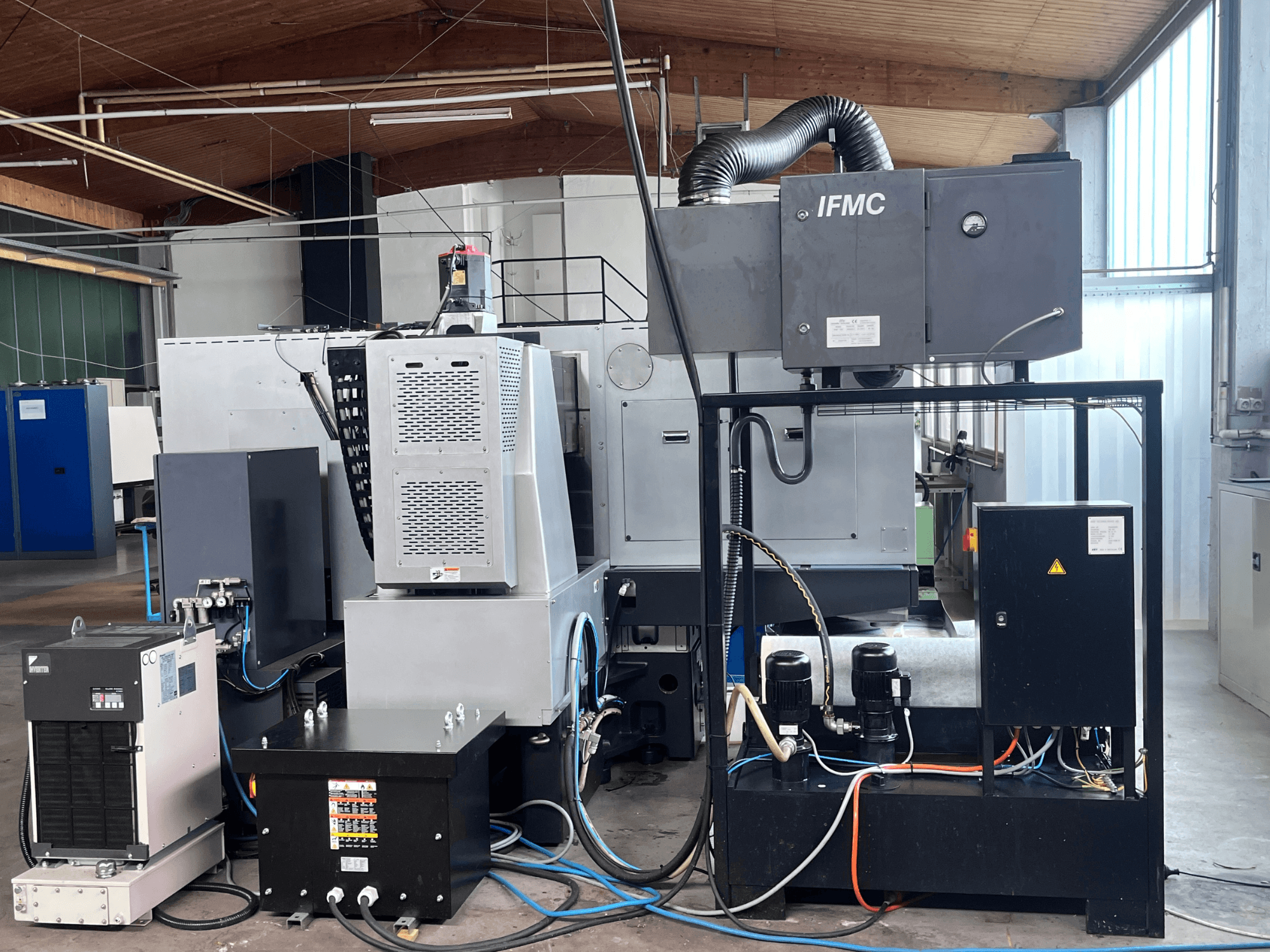

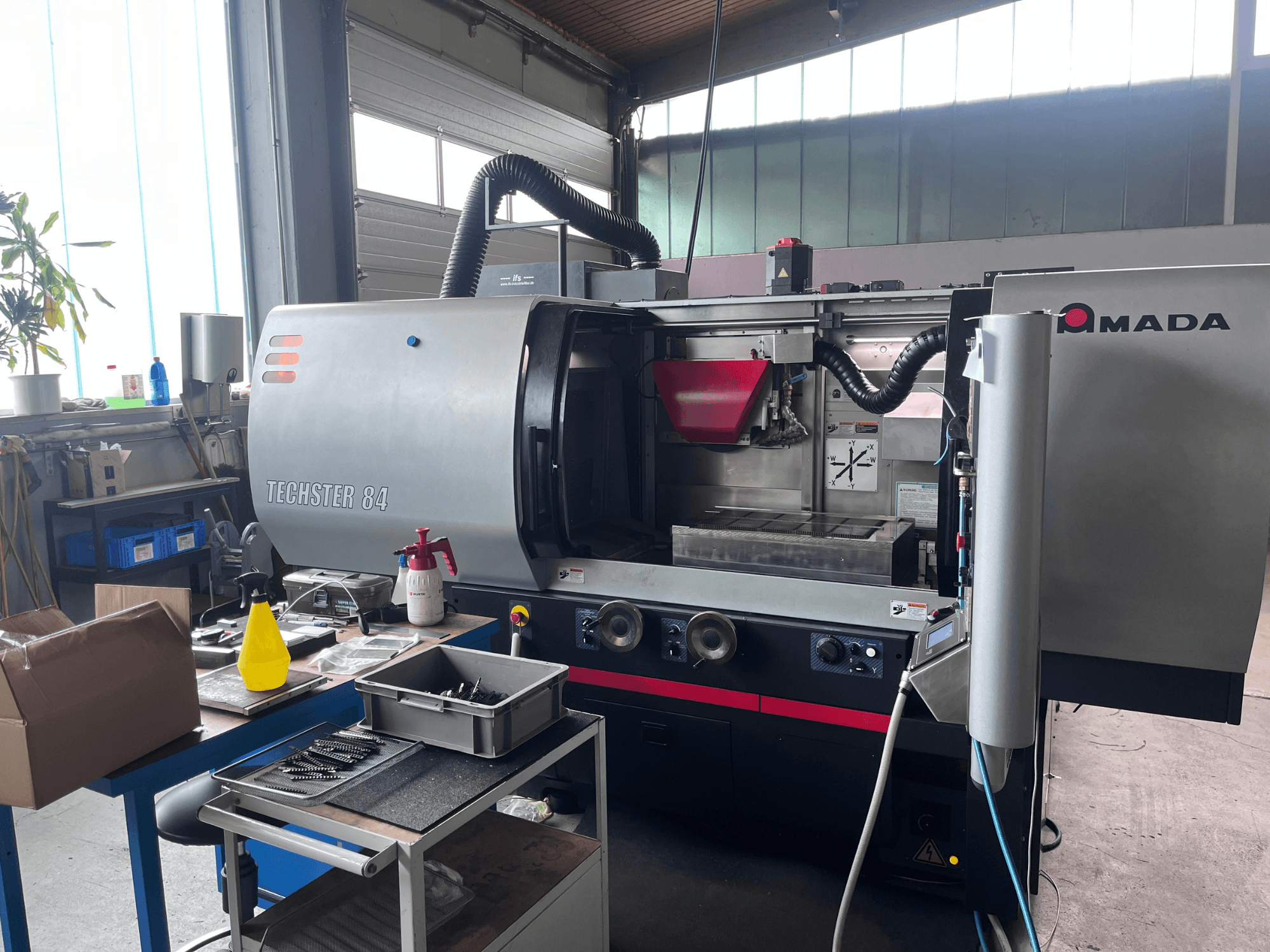

AMADA - Techster 84DE-GRI-AMA-2015-00001

• Control: FANUC Series 32i-Model B

• Power Supply: 200 V

• Power Supply Type: 3-Phase

• Frequency: 50 Hz

• Power Consumption: 23 kVA

• Full Load Current: 50 A

• Spindle Motor: 7.5 kW (Reinforced)

• Grinding Wheel Dimensions: Ø 355 × 38–50 × 127 mm

• Distance from Spindle Center to Table: Approx. 500 mm

• Magnetic Chuck Size: 700 × 400 mm

• Magnetic Chuck Pole Pitch: 4 mm

• LED Working Area Lighting

• Oil-Cooled Grinding Spindle

• Compressor Air-Cooled Spindle Cooling

• Temperature Control Accuracy: Approx. ±0.1 K

• Automatic Touch Probe

• Highskip Feed / High Speed Skip

• Ethernet (LAN) Interface

• Extended Memory Control Module

• FANUC Macro B

• Programmable Timer for Automatic Start/Stop and Warm-Up

• CE Declaration of Conformity

• Band Filter System 450 (E3.1)

• Coolant Tank Capacity: Approx. 450 L

• Filter Fineness: Approx. 20 µm

• Emulsion Mist Extraction System 1100

• IFMC Oil Mist Separator

• Machine Demonstration Possible

• Grinding Spindle Hours: Approx. 2,286 h

• General overhaul including geometric overhaul. The machine has only operated for approximately 504 hours since the overhaul

Additional Equipment

• WinWop Programming Software for Windows

• CGS (Complete Grinding Solutions) CAM Software

• Profile Dressing Unit with TPA 100 R

• Pre-Dressing Unit VPA 100 R with Motorized Diamond Wheel

• Table-Mounted Straight Dresser

• Diamond Dressing Arbor R100-40-0.15 CVD

• Regrinding Package for Diamond Wheel (Techster 84–104)

• 100 mm Diamond Wheel for Pre-Dressing Unit

• 700 mm Stop Bar with Prism

• MPM Automatic Wheel Balancing System

• Grinding Wheel Flange for Techster 64/84 (Ø 355 mm)

• Modified Grinding Wheel Guard

• Operating Tool Kit (Keys and Extraction Arbor)
