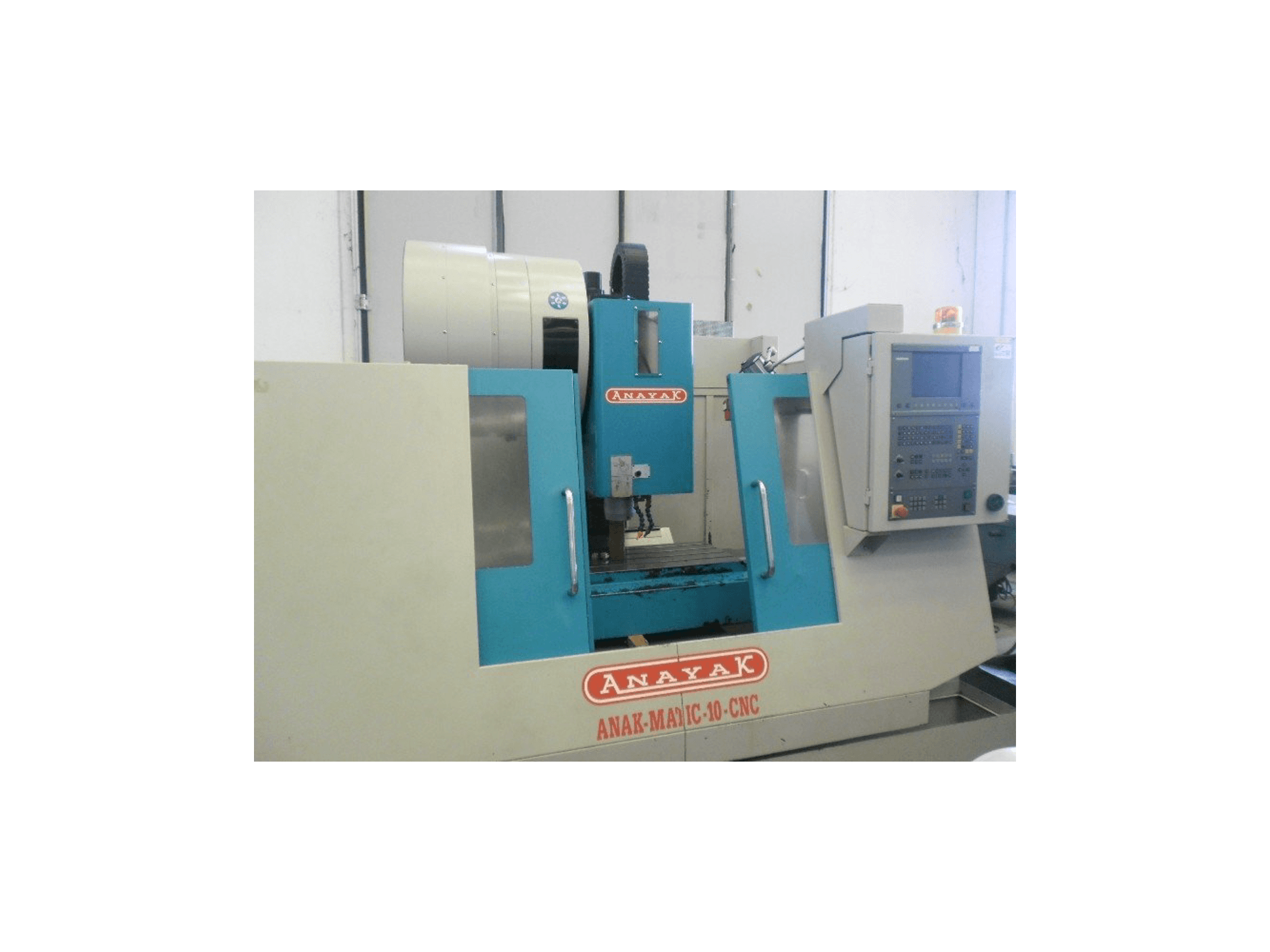

Left side view of ANAYAK ANAK-MATIC 10 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ANAYAK ANAK-MATIC 10

Photo Gallery

ANAYAK - ANAK-MATIC 10IT-MIL-ANA-2002-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

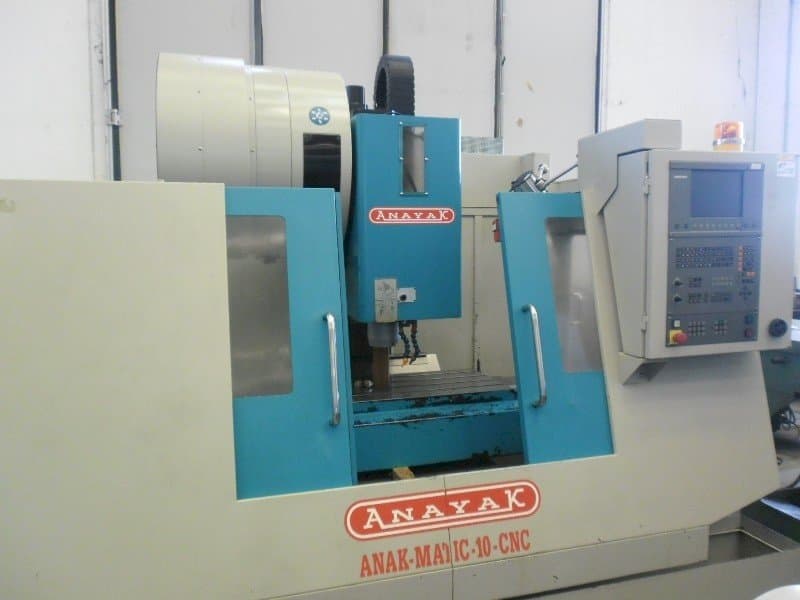

ANAYAK ANAK-MATIC 10 Vertical Machining Center

This ANAYAK ANAK-MATIC 10 Vertical Machining Center was built in the year 2002 in Spain. It is operated through a CNC HEIDENHAIN TNC 410 control unit and has 3 axis. The machine has a spindle speed of 6000 rpm. The machine is in very good condition.

Overview

brand: ANAYAK
year: 2002
MODEL: ANAK-MATIC 10
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - ANAYAK ANAK-MATIC 10

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 410

Dimensions

Machine Weight: 5000 kg
Table Length: 1150 mm
Table Width: 475 mm

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 500 mm
Z-axis Travel: 505 mm

Technical Specification

Spindle Power: 7.5 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle attachment iso 40
Total absorbed power 15 kva
Tool change 24 pos
Chip conveyor
Roller guides

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
