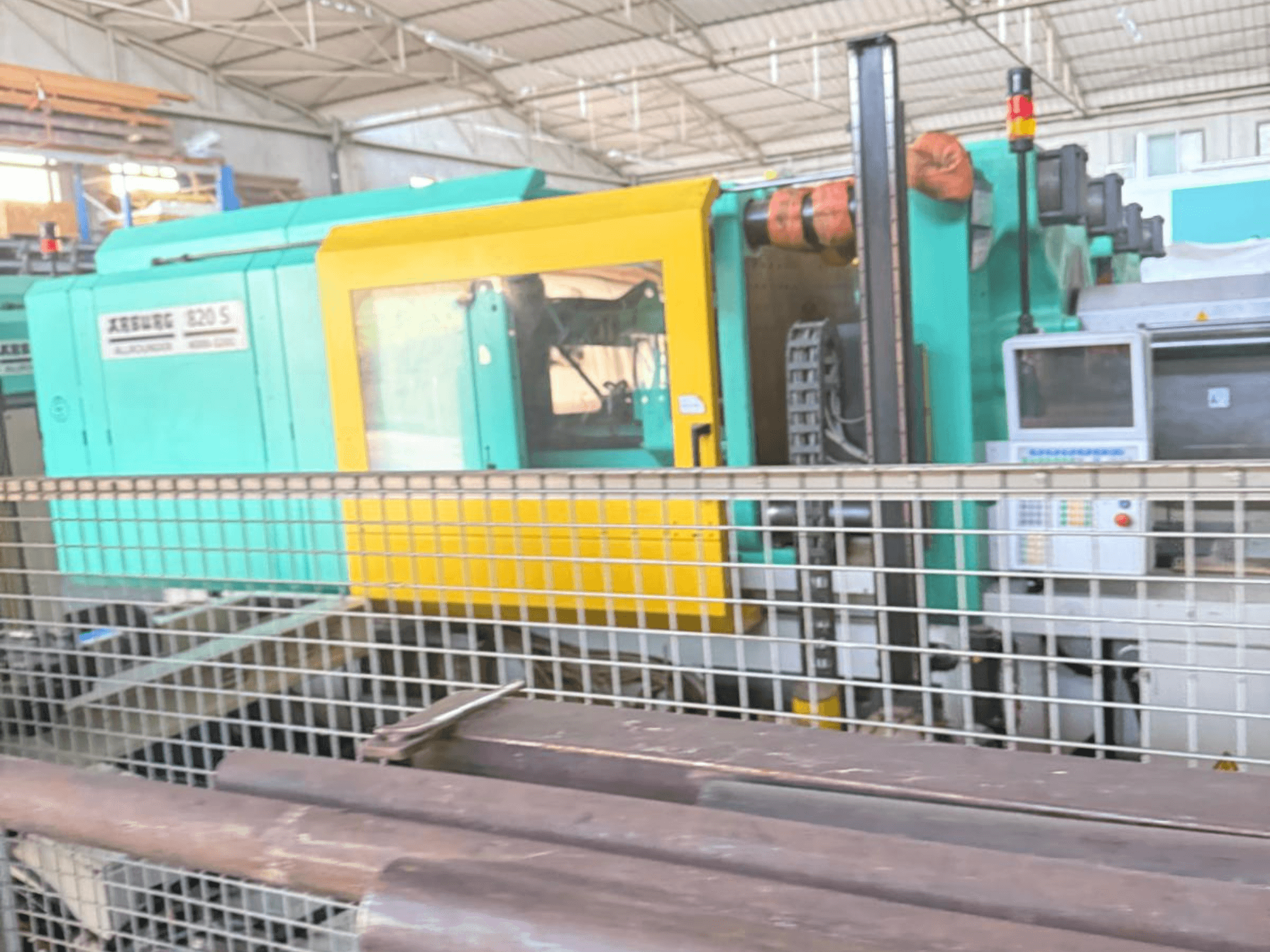

Hydraulic injection moulding machine Arburg SELECTA 820 S 4000-3200, side view, showcasing control panel and vibrant yellow and teal design.
Hydraulic injection moulding machine Arburg SELECTA 820 S 4000-3200, side view, showcasing control panel and vibrant yellow and teal design.

Arburg - SELECTA 820 S 4000 - 3200 IT-INJ-ARB-2005-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Hydraulic injection moulding machine manufactured in 2005. This Arburg SELECTA 820 S 4000 - 3200 features a clamping force of 4000 kN and an opening stroke of 700 mm. The machine has a platen size of 1171 x 1171 mm and a maximum moving platen weight of 4500 kg. If you are looking to get high-quality injection moulding capabilities, consider the Arburg SELECTA 820 S 4000 - 3200 machine we have for sale. Contact us for further details.

Overview

  • brand: Arburg
  • year: 2005
  • MODEL: SELECTA 820 S 4000 - 3200
  • application type: Injection Moulding
  • Location: Italy
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg SELECTA 820 S 4000 - 3200

Dimensions

  • Machine Weight: 22500 kg

Technical Specification

  • Clamping Force: 4000 kN

Additional Information

  • Quantity available: 4

  • Clamping unit:

    • Opening force: 100 kN

    • Opening stroke: 700 mm

    • Minimum mould height: 350 mm

    • Maximum daylight: 1550 mm

    • Tie bar spacing: 820 x 820 mm

    • Platen size: 1171 x 1171 mm

    • Max. moving platen weight: 4500 kg

    • Ejector force: 100 kN

    • Ejector stroke: 250 mm

  • Injection unit:

    • Screw diameter: 70 / 80 / 90 mm

    • Screw L/D ratio: 23 / 20 / 18

    • Max. screw stroke: 320 mm

    • Shot volume: 1323 / 1608 / 2036 cm³

    • Max. shot weight (PS): 1215 / 1469 / 1860 g

    • Injection pressure: 2500 / 2000 / 1530 bar

    • Injection rate: 304 / 396 / 502 cm³/s

    • Plasticizing capacity: 1188 / 1552 / 1964 g/s

    • Screw speed: 350 rpm

    • Screw peripheral speed: 65 / 75 / 80 m/min

    • Screw torque: 2247 Nm

    • Nozzle contact force: 110 kN

    • Nozzle stroke: 600 mm

  • Drive and power:

    • Hydraulic pump motor: 55 kW

    • Total installed power: 96.2 kW

  • Heating:

    • Cylinder heating capacity: 6 zones (5500 + 4300 W)

    • Nozzle heating: 1250 W

  • Oil tank capacity: 590 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
