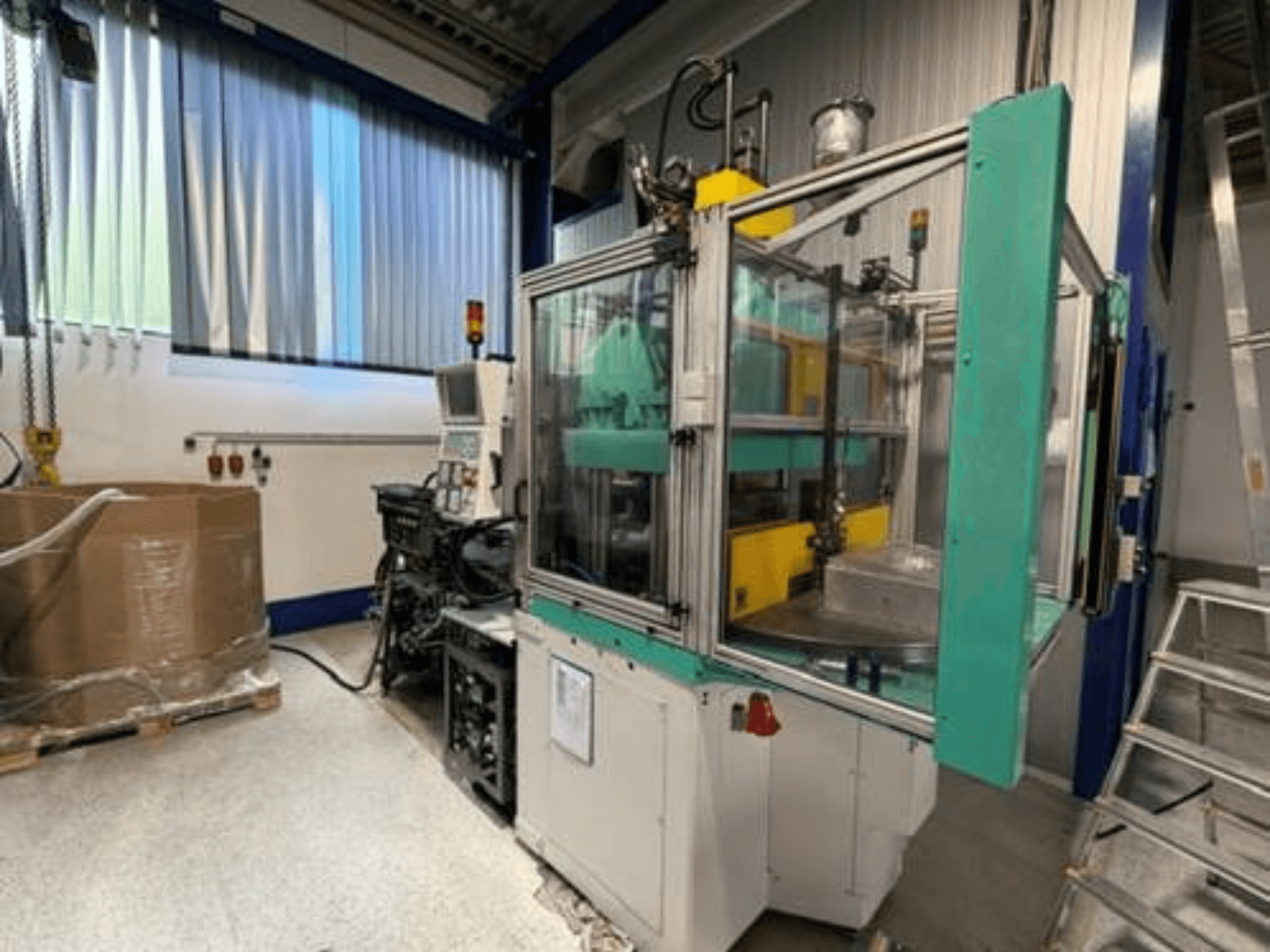

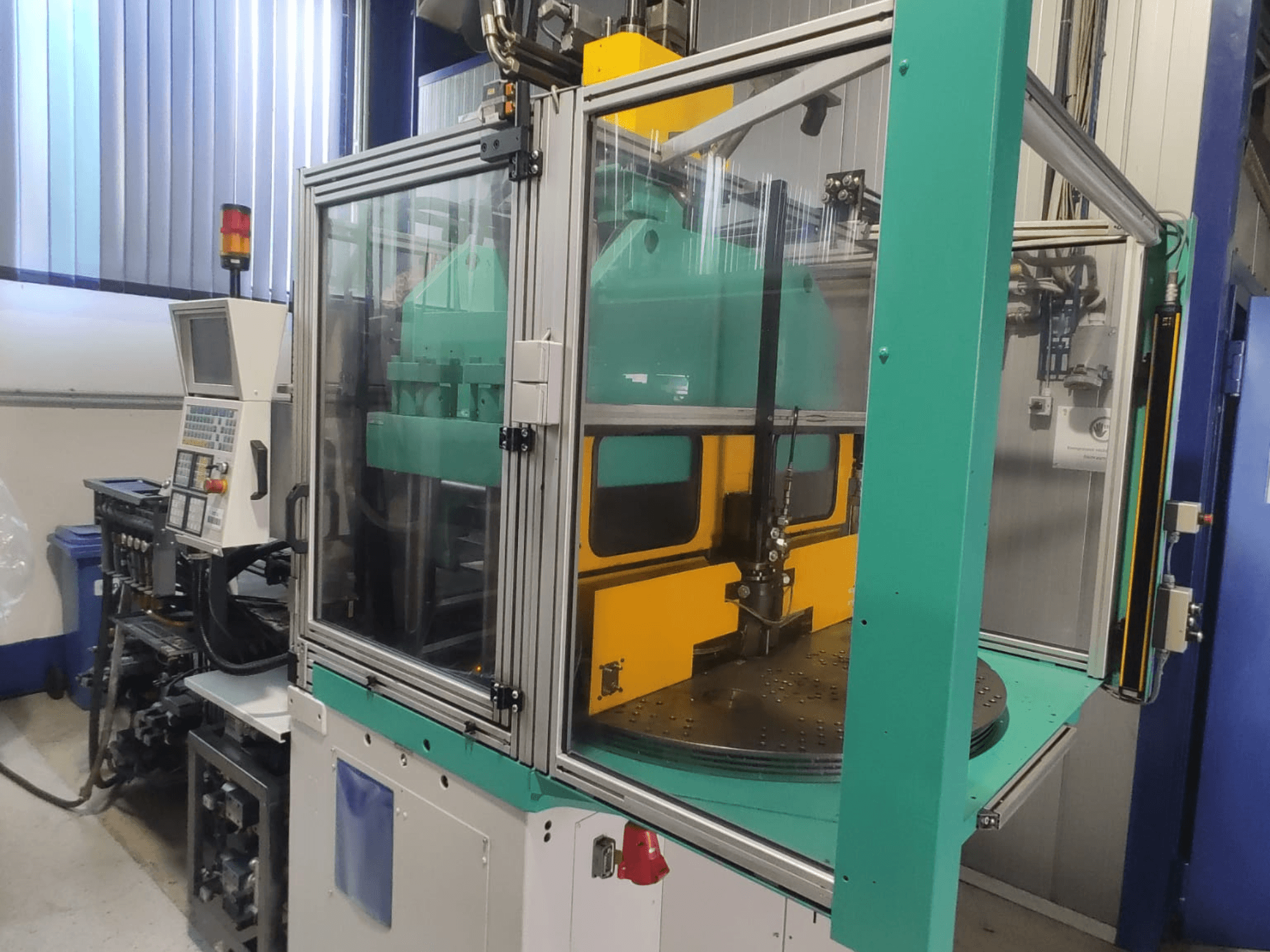

Vertical injection moulding machine manufactured in 1998. This Arburg 1200 TS 800-60-350 features a clamping force of 800 kN and includes two injection units: a vertical unit with a Ø22 mm screw and a horizontal unit with a Ø35 mm screw. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 1200 TS 800-60-350 machine we have for sale. Contact us for further details.
Overview
- brand: Arburg
- year: 1998
- MODEL: 1200 TS 800-60-350
- production hours: 28701
- application type: Injection Moulding
- Location: Germany
- machine type: Vertical Injection Moulding Machine
Technical Information - Arburg 1200 TS 800-60-350
Technical Specification
- Clamping Force: 800 kN
Additional Information
Clamping Force: 800 kN
Number of Injection Units: 2
Injection Unit 1: Vertical, Ø22 mm screw
Injection Unit 2: Horizontal, Ø35 mm screw
Operating Voltage: 400 V
Phase: 3~
Frequency: 50 Hz
Connected Load: 55.9 kW
Rated Current: 93 A
Control Voltage: 24 V DC
Protection Class: IP54
Hydraulic Pressure: 210 bar
Rotary Table: Yes
Safety Enclosure: Yes
Pump Operating Hours: 35,290 h
Automatic Operating Hours: 28,701 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
