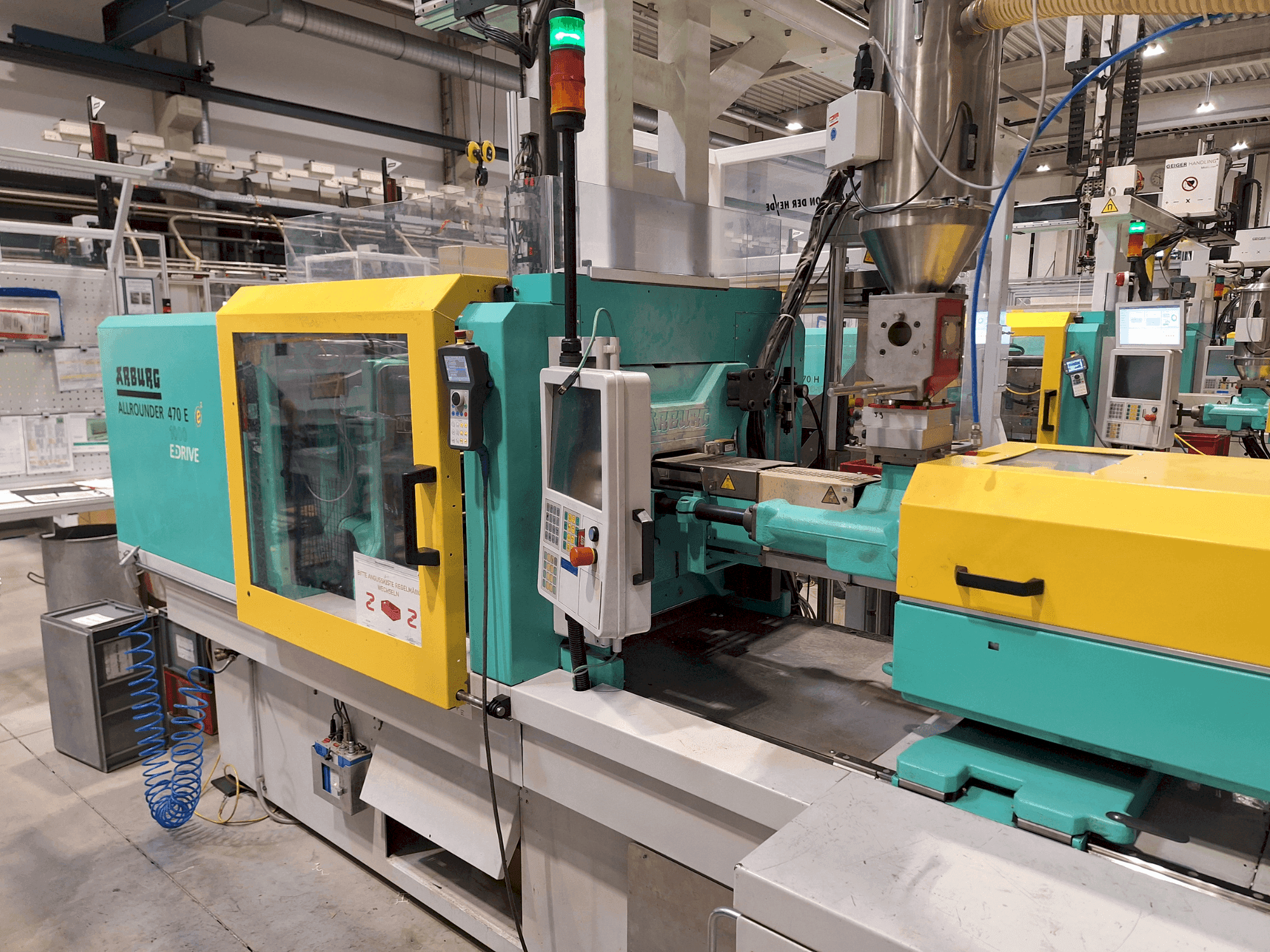

This Arburg 470 E 1000-700 was manufactured in 2011. A robust electrical injection moulding machine, it features a closing force of 100 tons and a screw diameter of 25mm. Operating on 400V 3∼, 50Hz with a total connected load of 78kW, it's designed for efficient performance. Consider the opportunity to buy this Arburg 470 E 1000-700 electrical injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2011
- MODEL: 470 E 1000-700
- production hours: 68463
- application type: Injection Moulding
- Location: Germany
- machine type: Electrical Injection Moulding Machine
Technical Information - Arburg 470 E 1000-700
Technical Specification
- Screw Diameter: 35 mm
Additional Information
Operating voltage: 400 V, 3-phase, 50 Hz
Control voltage: 230 V, 50 Hz; 24 V AC
Motor rated current: 61 A
Heating rated current: 58 A
Total rated current: 119 A
Total connected load: 78 kW
Calibration (year): 2027
selection unit: yes
single platen: yes
beam spacing: 470 x 470
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
