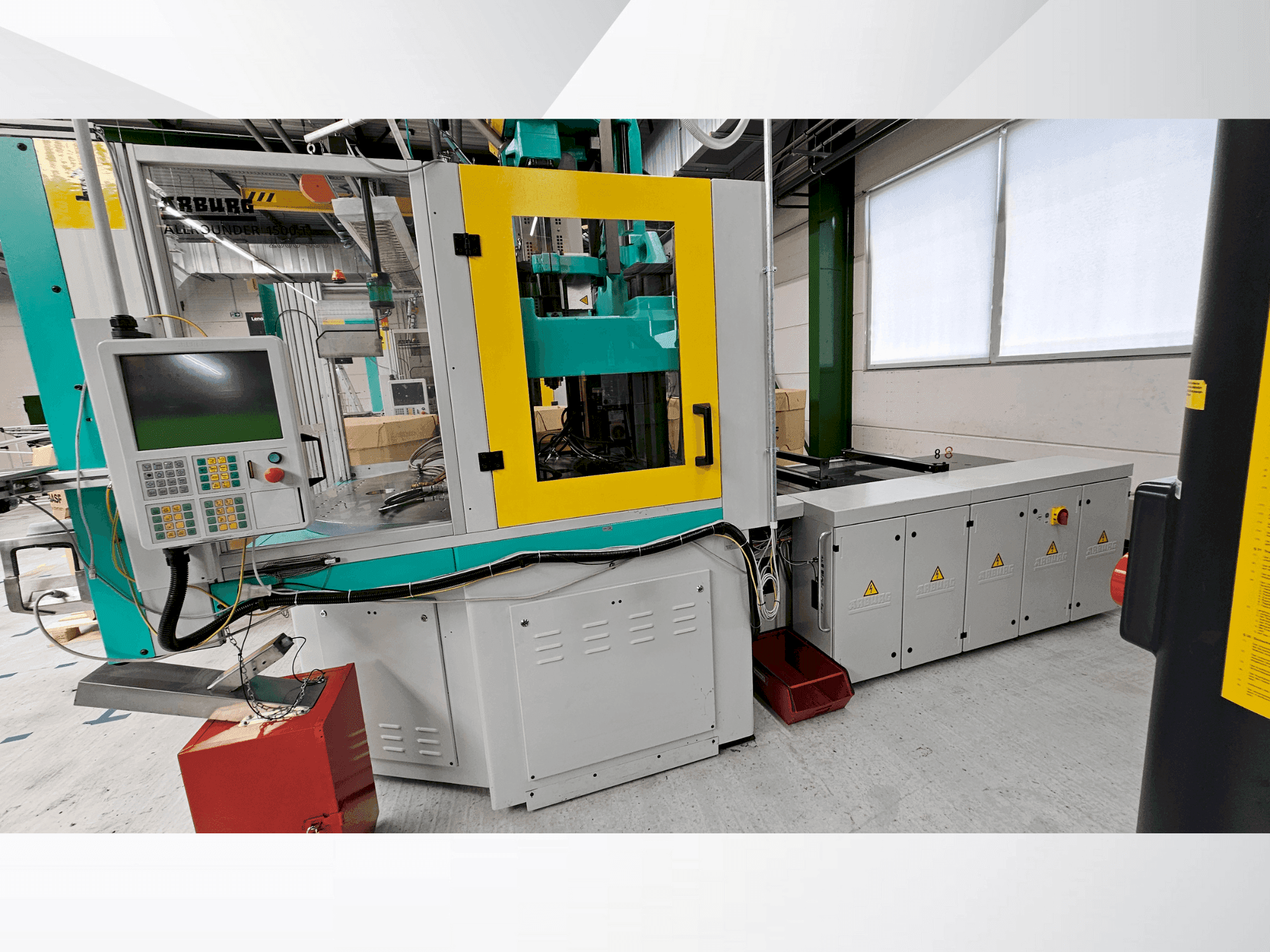

Arburg - Allrounder 1500 T 2000-400CZ-INJ-ARB-2013-00004

Additional Equipment

• - Rotary Table: Yes (180° rotation angle left/right)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Comprehensive injection unit with high injection pressure and material throughput
  • - Rotary table with 180° rotation angle for efficient moulding

Extra information

• - Clamping Unit Clamping Force: 2000 kN Opening Force Max.: 115 | 300 kN|mm Mould Installation Height Fixed Min.: 400 mm Pallet Distance Fixed: 700 mm Table Diameter: 1500 mm Rotation Angle Left/Right: 180° Weight of Moving Mould Half: 500 kg Ejector Force|-Travel: 25|175 kN|mm // Injection Unit Screw Diameter: 40 mm Effective Screw Length: 20 L/D Screw Stroke: 160 mm max. Calculated Stroke Volume: 201 max. cm³ Shot Weight: 184 g PS Material Throughput: 29 kg/h PS Injection Pressure Max.: 2000 bar Holding Pressure Max.: 2000 bar Injection Flow² Max.: 168 cm³/s (2 pumps) Screw Circumferential Speed² Max.: 53 m/min (2 pumps) Screw Torque Max.: 550 Nm Nozzle Contact Force|-Lifting Movement Max.: 60 | 400 kN|mm Granulate Container: 50 litres

Payment Terms

• Payment in advance

•

  Asset Financing
