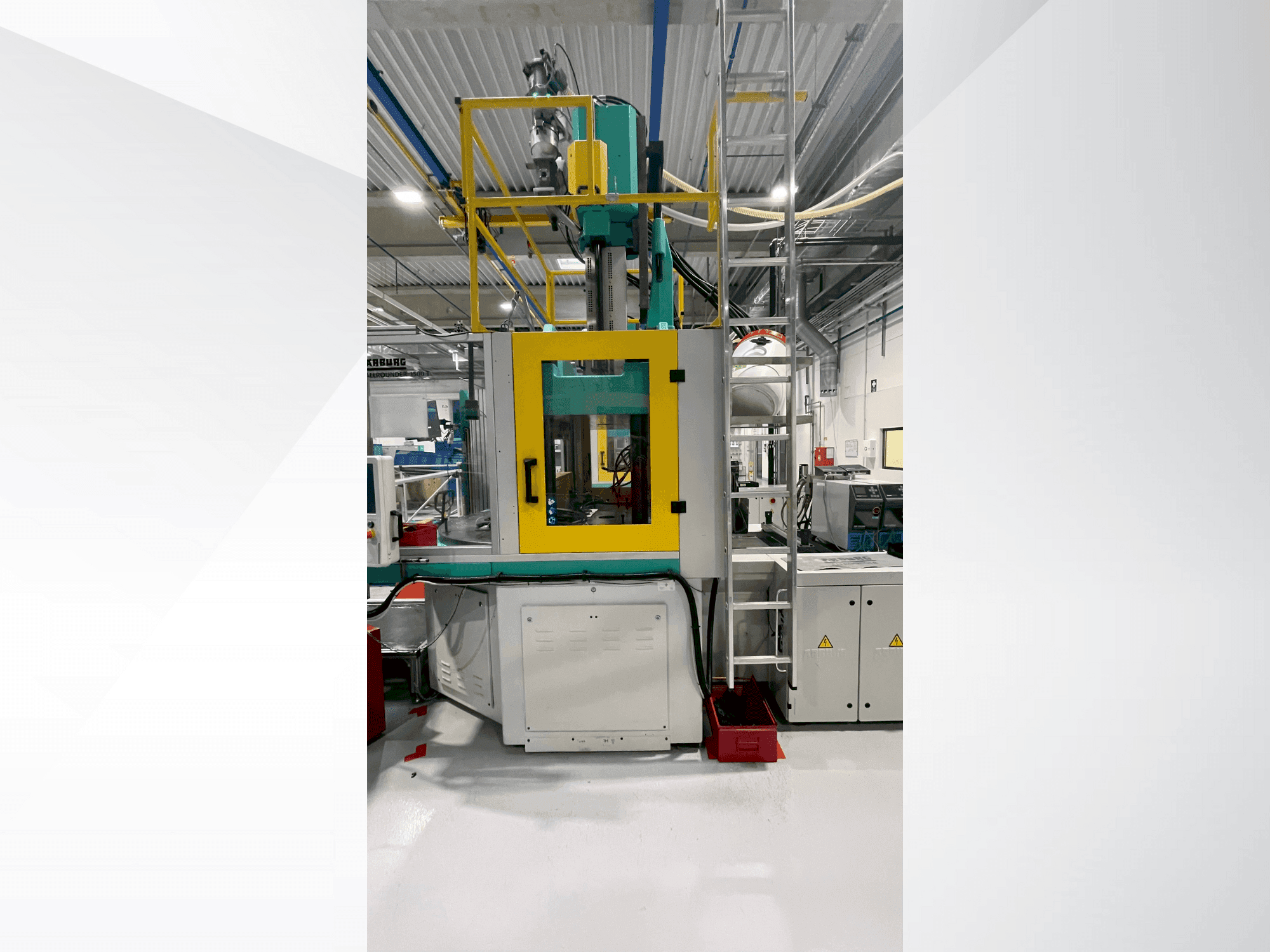

This vertical injection moulding machine was manufactured in 2015. It features a clamping force of 2000 kN and a table diameter of 1500mm, suitable for various mould sizes. The screw diameter is 40mm, ensuring precise material processing with a maximum injection pressure of 2000 bar. Ideal for producers looking for a robust and efficient machine, the Arburg Allrounder 1500 T 2000-400 represents a significant opportunity. Contact us for further details regarding this vertical injection moulding machine.
Overview
- brand: Arburg
- year: 2015
- MODEL: Allrounder 1500 T 2000-400
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Vertical Injection Moulding Machine
- availability: Immediately
Technical Information - Arburg Allrounder 1500 T 2000-400
Injection Unit
- Screw diameter: 40 mm
- Shot weight: 184 g PS
- Stroke volume: 201 max. cm³
- Injection pressure: 2000 bar
- Plasticizing rate max.: 29 kg/h PS
- Screw speed: 53 m/min (2 pumps)
- Nozzle pressure: 60 | 400 kN|mm
Clamping unit
- Clamping force: 2000 kN
- Mould height min: 400 mm
- Ejector stroke: 175 mm
- Ejector force for / back: 25 kN
Additional Information
- Technical Machine Benefits:
- - Opening force max. : 115 | 300 kn|mm
- - Pallet distance fixed: 700 mm
- - Table diameter: 1500 mm
- - Rotation angle left/right: 180°
- - Weight of moving mould half: 500 kg
- - Granulate container: 50 litres
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
