Arburg - Allrounder 470S 1100-400 with Multilift handlingDE-INJ-ARB-2010-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ARBURG Allrounder 470S 1100-400 with Multilift handling Injection moulding machine

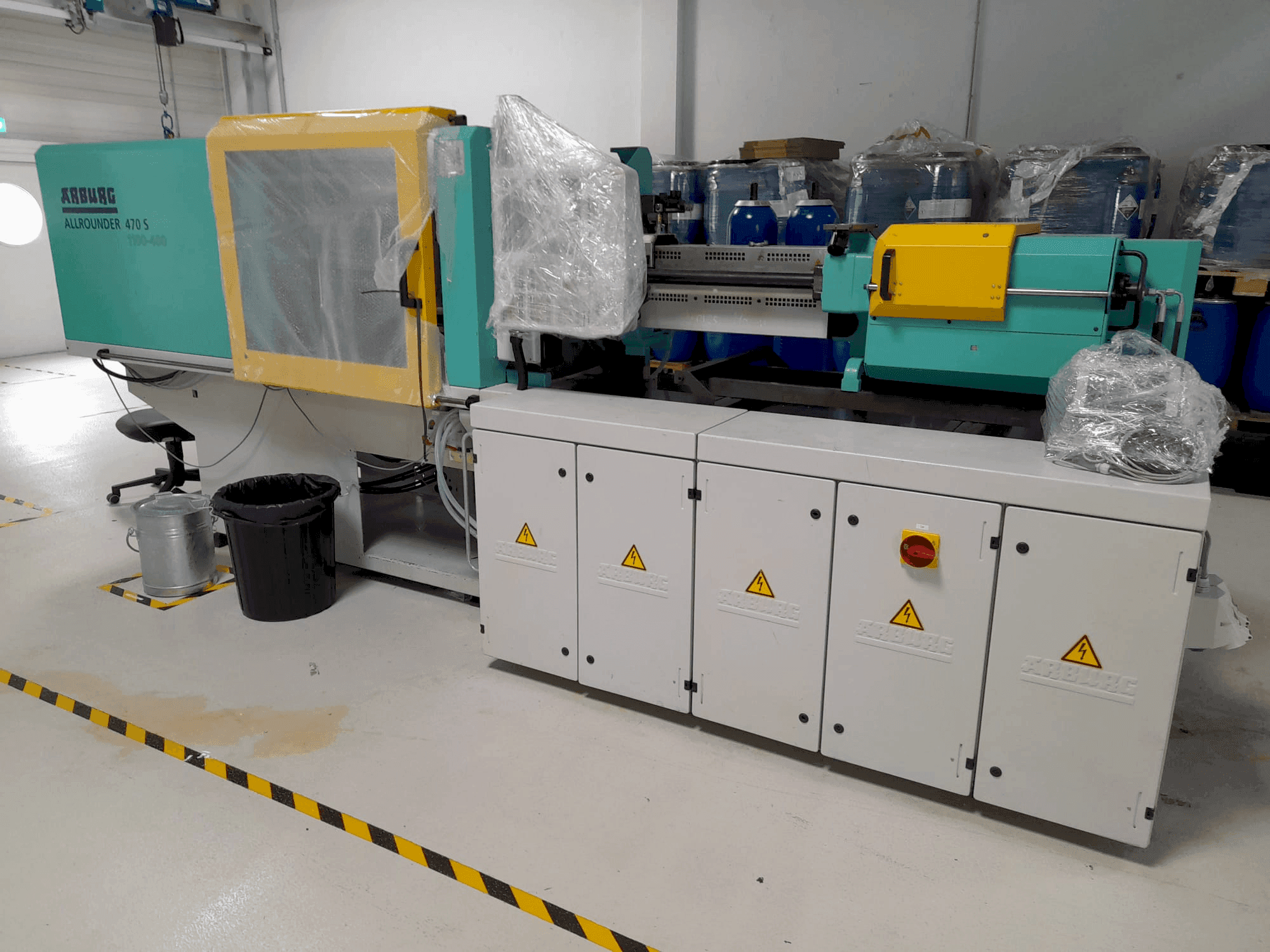

This ARBURG Allrounder 470S 1100-400 with Multilift handling Injection moulding machine was manufactured in the year 2010 and has 63300 pump operating hours. It is equipped with a two blow-out devices with pressure reducer. The machine has a MULTILIFT V SELECT type (cross-mounted on the machine, 3 CNC axes, freely programmable, axes can be moved simultaneously, drive via servo motors). Disposes of a protective housing Bosch profile with wave grille, access door electrically protected
Overview
- brand: Arburg
- year: 2010
- MODEL: Allrounder 470S 1100-400 with Multilift handling
- production hours: 63300
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg Allrounder 470S 1100-400 with Multilift handling
General Data
- Measurements width: 2500 mm
- Measurements depth: 4500 mm
- Measurements height: 3000 mm
- Machine weight: 4800 kg
Main drive
- Number of axis: 4
Injection Unit
- Stroke volume: 154 ccm CM³
Media
- Oil tank: 290 l
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Locking device: 1100 kn // voltage: 400 v / 50 hz // motor / heating back-up fuse: 125 a // max. Injection volume: 154 ccm
- - Position-controlled screw // pressure accumulator for high pressures / speed
- - Plasticizing cylinder 35 mm highly wear and corrosion resistant, max. Processing temperature 450° b9ksppti8d // piezo charge amplifier for internal pressure measurement
- - Programmable nozzle contact force // centering diameter nozzle side: 125 mm
- - Ejector with quick-release coupling // ejector stroke max. : 175 mm mold height min. : 300 mm // maximum platen distance: 950 mm // column spacing: 470 x 470 mm
- - Printer interface // temperature control unit interface 20ma max. 6 devices // allrounder at web interface // interface for coloring / dosing device // interface for mold monitoring through ejector plate safety device
- - Machine cycles: 4,649,834 h // pump operating hours: 63,300 // operating hours car: 57,584
- - Axis lengths, axis speed: z-axis (transverse to the longitudinal machine axis) 1400 mm ---- mm/s // x-axis (parallel to the longitudinal machine axis) 400 mm --- mm/s // z-axis (plunge axis) 600 mm ---- mm/s // c-axis pneumatic folding axis
- - Deposit height: 1100 +/- 200 mm
- - 4 x pneumatic valves 5/3 with locked center position for gripper functions - 4 x vacuum equipment incl. Vacuum switch for parts monitoring
- Qualitative Machine Benefits:
- - Multilift v select (cross-mounted on the machine, 3 cnc axes, freely programmable, axes can be moved simultaneously, drive via servo motors)
- - Technology level 2 with two control pumps for controlled machine movements
- - Protective housing bosch profile with wave grille, access door electrically protected
- - 16 freely programmable inputs
- - 16 freely programmable outputs
- - Temperature in the control cabinet controlled by water cooling
- - Special process extended guard locking
- - 9 electrical heating control circuits for mold heating (hot runner) sensor type j
- - Two blow-out devices with pressure reducer // Three freely programmable core pulls // Off-line filtering
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
