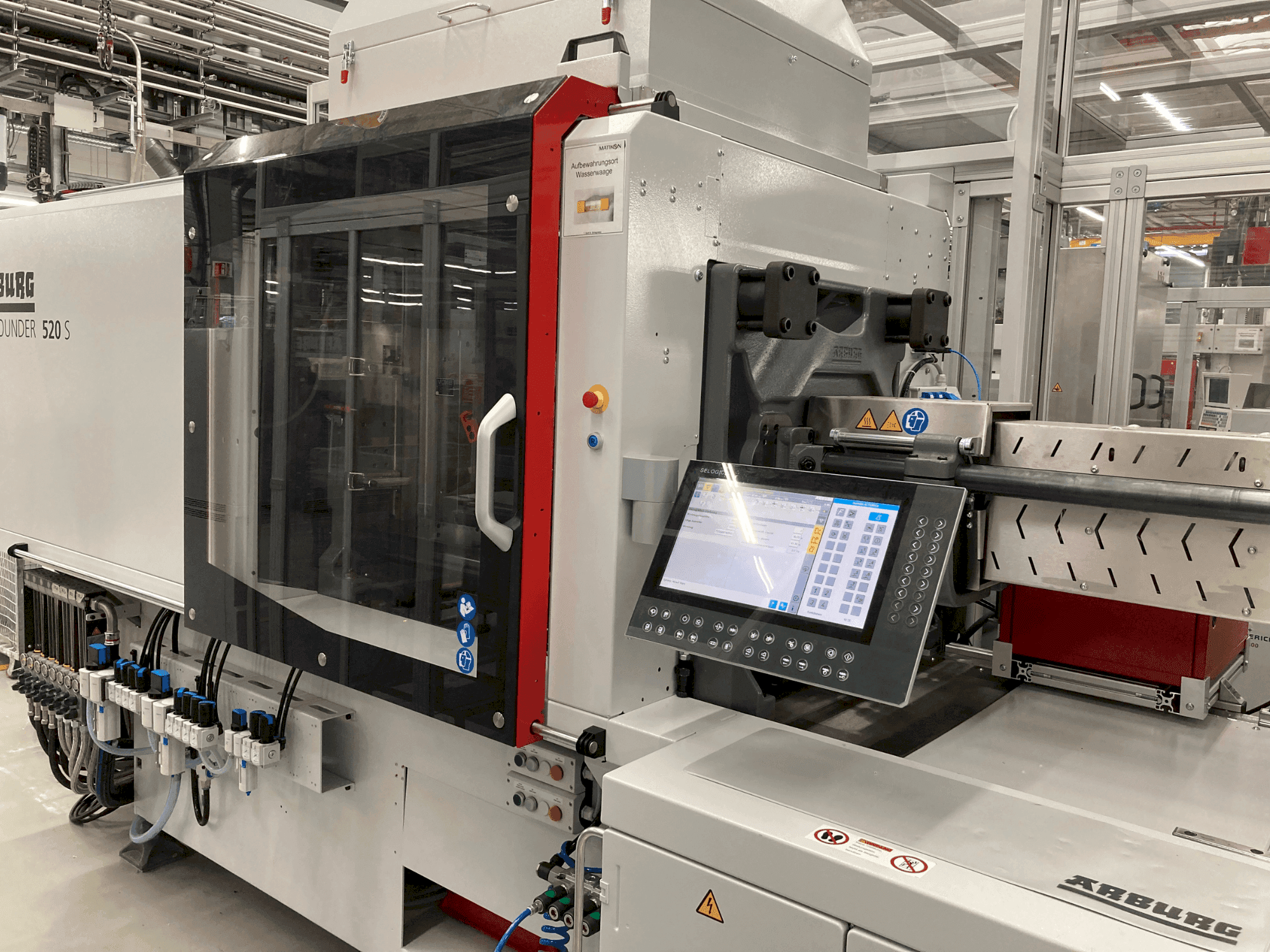

Arburg - Allrounder 520 S 1600-400DE-INJ-ARB-2024-00001

Additional Equipment

• - Optional: Automationsystem KUKA Cybertech (2 KUKA robots, KR 10 + KR22)
• - 4x Temperature Control Units: Thermo 5
• - Language Options: German, English, Czech
• - Maximum opening: 575 mm / Maximum plate distance: 1025 mm / Maximum ejector length: 175 mm
• - Coupling diameter: 32 mm / Center ring diameter: 125 mm
• - Valve gate: 6
• - HK Control points: 42
• - Number of hydraulic core pulls (Fixed side): 1 / Number of hydraulic core pulls (Moving side): 2 / Number of pneumatic core pulls (Fixed side): 2

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Operating voltage: 400 v, 3-phase, 50 hz
  • - Control voltage: 230 v, 50 hz
  • - Control voltage: 24 v
  • - Motor/heating rated current: 160/150 a
  • - Total connected load: 197 kw
  • - Tonnage: 160 tons
  • - Firing force 1600 kn
  • - The arburg machine is available for individual purchase.
  • - Alternatively, it can be acquired as a complete system, including either a kuka kr 22 or kuka kr 10 industrial robot.
  • - An optional configuration with both robots integrated into the setup is also possible.

Extra information

• - Machine still under power // Machine Specifications: • Type of control: Selogica ND • Tie bar distance: 520 • Tonnage group: 160 to • Number of components: 1K • Maximum clamping force: [kN]: 160 • Minimum tool height: [mm]: 450 • Maximum opening: [mm] 575 • Maximum plate distance: [mm]: 1025 • Ejector specifications: o Maximum ejector length: [mm]: 175 o Coupling diameter: [mm]: 32 • Index shaft: o Diameter: [mm]: x o Distance: [mm] - • Center ring diameter: [mm]: 125 • Injection Unit: • Aggregate 1: o Size: 400 o Screw diameter: [mm]: 35 o Maximum shot volume: [ccm]: 141 o Maximum injection pressure: [bar]: 2500 • Aggregate 2: / o Size: - o Screw diameter: - o Maximum shot volume: [ccm]: - o Maximum injection pressure: [bar]: - • Aggregate 3: / o Size: [Specify] o Screw diameter: [mm] o Maximum shot volume: [ccm] o Maximum injection pressure: [bar] Valve gate (number) : 6 HK Control points Number (measuring points): 42 Booster (kompresor): 1/0 = yes/no: 0 Internal pressure: 1 Number of hydraulic core pulls (Fixed side): 1 Number of hydraulic core pulls (Moving side): 2 Number of pneumatic core pulls (Fixed side): 2 Number of pneumatic core pulls (Moving side): - Ionization: 1/0 = yes/no: 0 Generator available: 1/0 = yes/no: 0 Temperature Control Units: • Temperature control unit 2 [°C]: 160 • Temperature control unit 3 [°C]: 160 • Temperature control unit 4 [°C]: 160 • Temperature control unit 5 [°C]: 160 • Temperature control unit 6 [°C]: - • Temperature control unit 7 [°C]: - • Temperature control unit 8 [°C]: - • Number of thermolators: 4 • Thermolator max temperature [°C]: 160 • Serie: Serie 5 HB Therm • Type of controller: Panel 5 extren • Cold water cycles max (only for tool, fixing site): 2 • Cold water cycles max (only for tool, moving site): 2 • Temperature sensor (mold): 1/0 = yes/no: 1 • Material Dryer at Machine1/0 = Yes/No: 1 • Interface Coloring Device 1/0 = Yes/No: 0 Robot: KUKA KR 22 Robot Payload [kg]: 22 Quick Coupling (1 = QCA90/ 2 = QCA150): 2 • Communication Connector (1 = Sub-D/ 2 = Double Sub-D): 2 • Robot Vacuum Circles Nr.: 8 • Robot Gripper Circles Nr.: 8 • Robot Axes: A1, A2, A3, A4, A5, A6 • Conveyor System: • Tray type: Standard/with tray stopper (1 or 2 lanes): Standard and Tray • Conveyor belt with tray stopper (1 or 2 lanes): 2 • Direction: Lengthwise (2) or transverse (1): 2 • Additional Specifications: • Dimensions: o Width: [m]: 6 o Length: [m]: 7 o Area: [m²]: 42 • Cable cross-section: [mm²]: - • Water connection details: o Size: [inch]: - o Number of points: [Number]: - • Energy consumption: [kW/h]: - • Machine weight: [kg]: - • Oil filling quantity: [l]: - • Automation Details: • Automation integrated: Yes/No: 1 Automation description: [Details]: Automation for Lightring EVA 2 Seite MOPF - Cleaning Tayfun Clean - cooling table - Ultrasonic punching - second KUKA KR10
