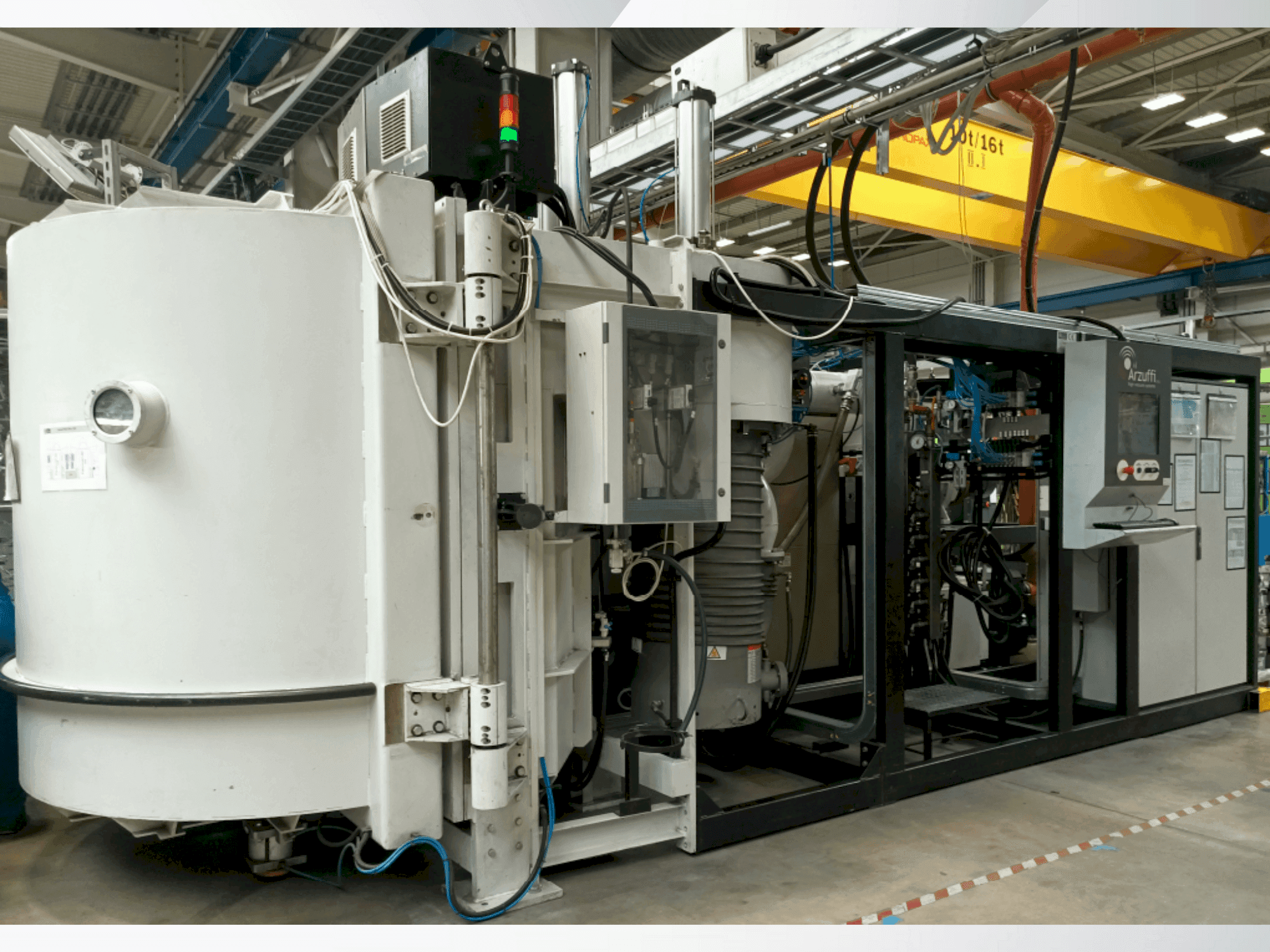

ARZUFFI AM/KW 1DA2 1900/1800 IC MF (2013) Other

This ARZUFFI AM/KW 1DA2 1900/1800 IC MF Other machine was manufactured in the 2013. This machine has a loading system which inside each door is installed a planetary that allows to charge 7 fixtures.

Overview

brand: ARZUFFI
year: 2013
MODEL: AM/KW 1DA2 1900/1800 IC MF
application type: Forming
Location: Czech Republic
machine type: Metal Press
availability: Sold

Technical Information - ARZUFFI AM/KW 1DA2 1900/1800 IC MF

General Data

Measurements width: 6500 mm
Measurements depth: 7550 mm
Measurements height: 3270 mm
Machine weight: 10500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High vacuum coating system
- - Chamber dimension: diameter 1. 900 mm, height 1. 800mm, chamber volume 5,1 m3
- - Electrical drawing: tension 440, volt frequency 50 hz, power 106 kw, max current consumption 108 amp.
- - Power distribution: diffusion pump no. 2 12 kw each // rotary pump no. 1 15 kw // roots pump no. 1 11 kw // polycold 1102 pfc no. 1 15,3 kw // motoreducer no. 2 0,75 kw // evaporation transformer no. 1 25 kw // power supply mf no. 1 10 kw // hmdso heating no. 1 0,3 kw each
- - Cooling system pressure 2 / 3 bar
- - Cooling system capacity 90 - 100 lt/min
- - Pneumatic system pressure 6 - 7 bar
- - Diameter of fixture 6 - 560 mm / 8 - 460 mm
- - Total height of fixture 1600 mm
- - Useful height of fixture 1500 mm

Extra information

- Loading system: Inside each door is installed a planetary that allows to charge n. 7 fixtures

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
