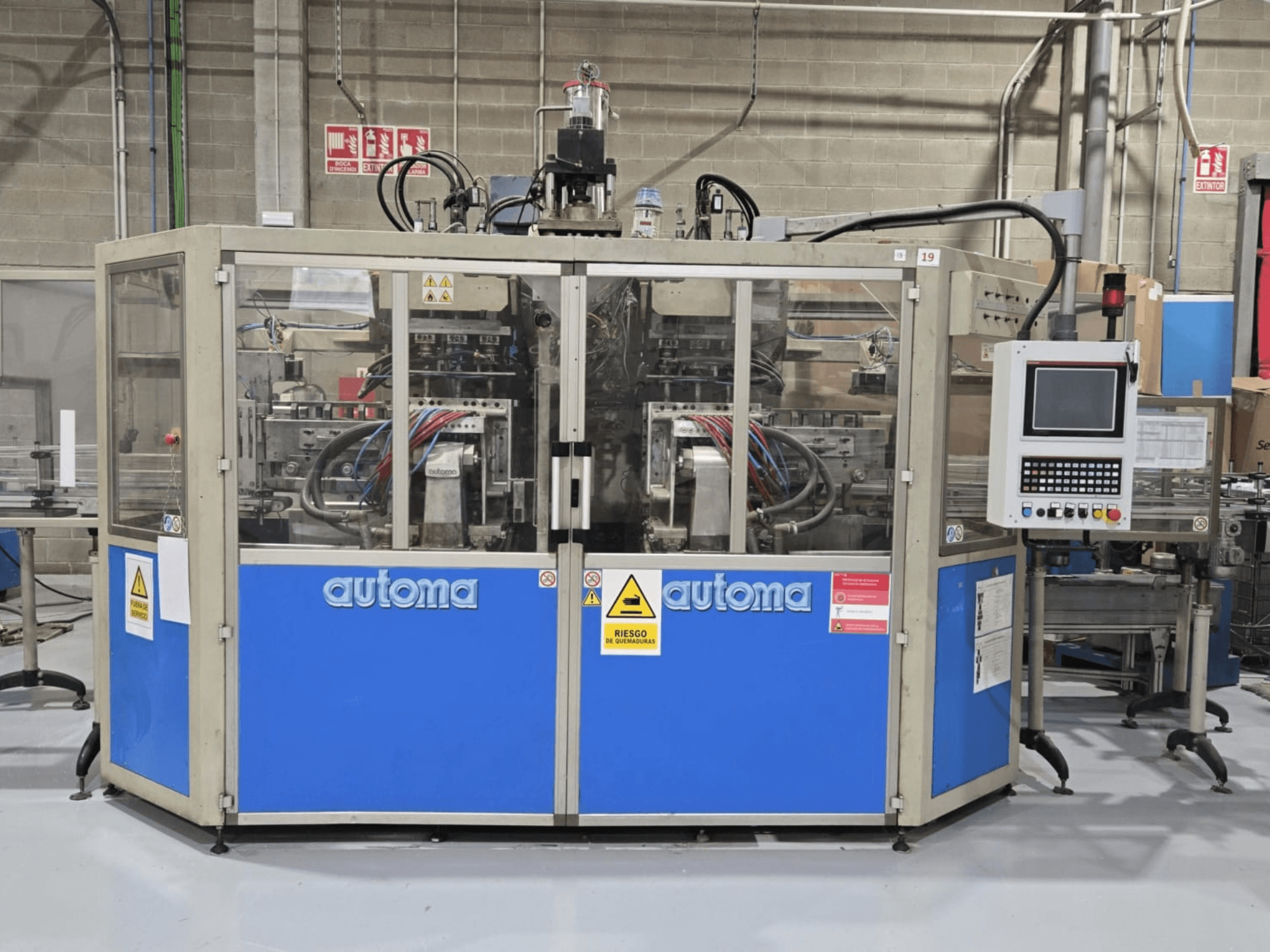

Blow moulding machine manufactured in 2008. This AUTOMA APEX AT500D features a screw diameter of 90 mm and a clamping force of 120 kN. It has a plasticizing capacity of 200–130 kg/h and a horizontal stroke of 500 mm. If you are looking to get high-quality blow moulding capabilities, consider the AUTOMA APEX AT500D machine we have for sale. Contact us for further details.
Overview
- brand: AUTOMA
- year: 2008
- MODEL: APEX AT500D
- application type: Blow Molding
- Location: Spain
- machine type: Blow Moulding Machine
Technical Information - AUTOMA APEX AT500D
Dimensions
- Machine Weight: 13000 kg
Technical Specification
- Clamping Force: 120 kN
- Screw Diameter: 90 mm
Additional Information
Extruder: E904-WT AC
Screw speed: 69 rpm
Extruder motor power: 65 kW
Heating power: 24 kW
PE/PP plasticizing capacity: 200–130 kg/h
Horizontal stroke: 500 mm
Dry cycle time: 2.4 s
Air pressure: 6–8 bar
Pump motor power: 22 kW
Total installed power: 77–115 kW
Minimum water pressure: 3 kg/cm²
Maximum cycles: 14/min
Number of cavities: 3 + 3
Distance between axes: 100–135 mm
Maximum container length: 85–120 mm
Maximum container height: 350 mm
Capacity: 1 L
Maximum mould width: 495 mm
Maximum mould height: 460 mm
Mould thickness: 170 + 170 mm
Opening: 265 mm
Condition: Operational
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
