➤ Used Avia VMC 1000 For Sale | gindumac.com

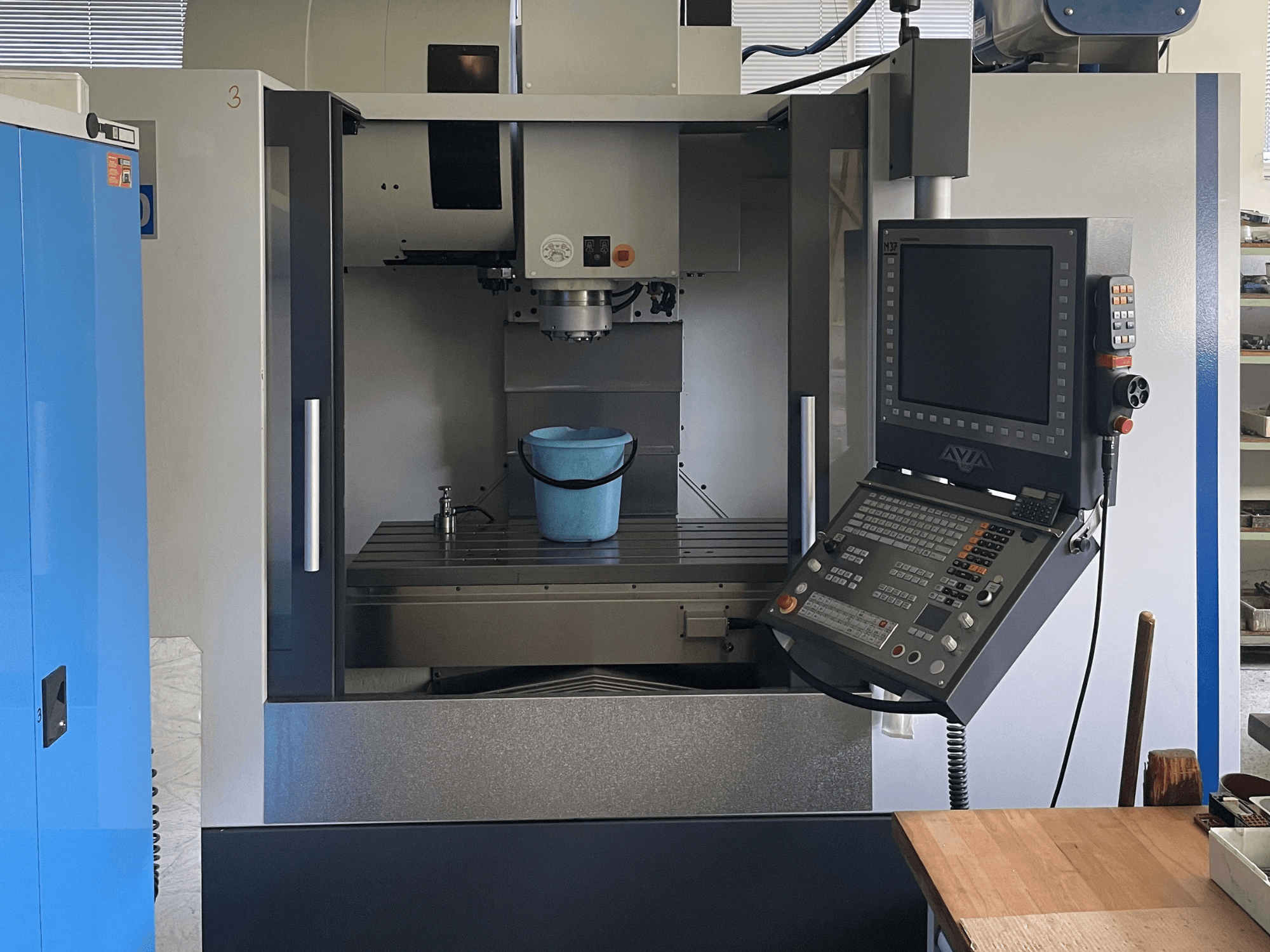

This 4-axis Avia VMC 1000 was manufactured in 2017. It features a generous X-axis travel of 1000 mm, Y-axis travel of 540 mm, and Z-axis travel of 620 mm. The machine is equipped with a robust table size of 1200 x 540 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the Avia VMC 1000 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Avia
year: 2017
MODEL: VMC 1000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Avia VMC 1000

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530 HSCI

Dimensions

Machine Weight: 5500 kg
Table Load: 1000 kg

Movement

Number of Axes: 4
X-axis Travel: 1000 mm
Y-axis Travel: 540 mm
Z-axis Travel: 620 mm

Technical Specification

Spindle Power: 17 kW
Spindle Speed: 15000 RPM
Taper Size: ISO 40
Tool Stations: 30

Additional Information

Table size: 1200 x 540 mm
Spindle-to-table distance (min/max): 150 / 770 mm
Working feed: 0–35 m/min
Rapid traverse (X/Y/Z): 35 / 35 / 35 m/min
Spindle motor power (S1 100% / S6 25%): 10 / 17 kW
Condition: Machine in top condition with very low hours

Additional equipment

Spindle through-coolant, 20 bar
4th axis preparation with 200 mm table, base, and 3-jaw chuck
Heidenhain TS 640 infrared workpiece probe
Heidenhain TT 160 tool probe
Oil mist collector (Mistresa, Japan)
Tool cooling with compressed air, 5 bar
Coolant oil separator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
