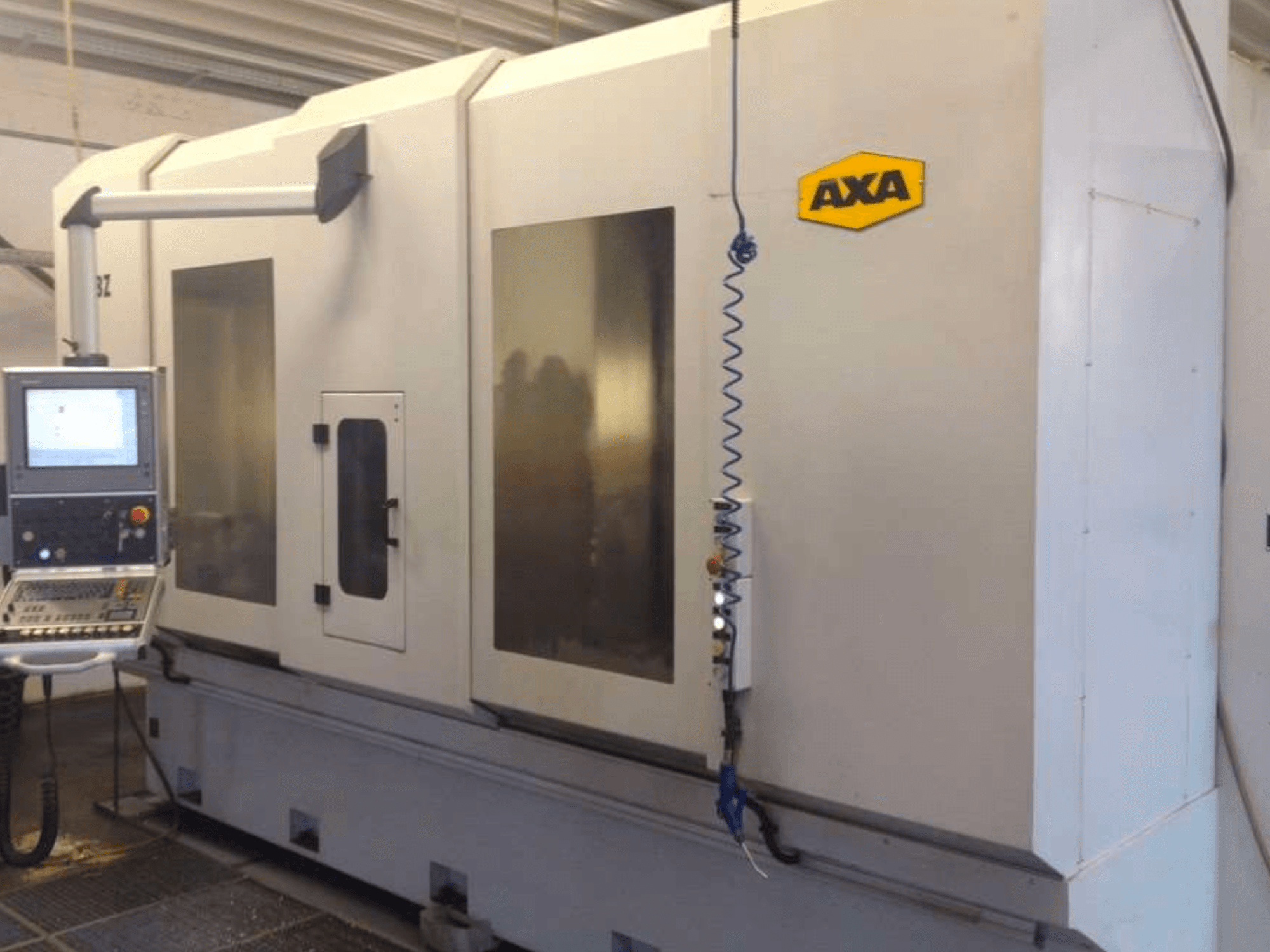

AXA DBZ vertical machining centre viewed from the front, featuring a control panel and large transparent safety windows.
AXA DBZ vertical machining centre viewed from the front, featuring a control panel and large transparent safety windows.

AXA - DBZDE-MIL-AXA-2007-00002

32,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis AXA DBZ vertical machining centre was manufactured in 2007. It features an impressive X-axis travel of 2 x 750 mm, Y-axis travel of 500 mm, and Z-axis travel of 600 mm. The machine is equipped with a main spindle speed range of 30–10,000 rpm and a maximum table load of approximately 550 kg. If you are looking to get high-quality machining capabilities, consider the AXA DBZ vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: AXA
  • year: 2007
  • MODEL: DBZ
  • production hours: 65155
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - AXA DBZ

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Weight: 1000 kg
  • Table Length: 1350 mm
  • Table Load: 550 kg
  • Table Width: 500 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 750 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Number of Tools: 22
  • Spindle Power: 30 kW
  • Spindle Speed: 10000 RPM
  • Through-spindle Coolant: Yes

Additional Information

with 2x 4th axis RTA 1-180
Automatic doors (possible for robot handling system)
Main spindle speed range 30–10,000 rpm
Main spindle drive power ~30 kW 40% ED
Max. torque ~143 Nm
Tool holder SK 40 DIN 69871 / A
Internal coolant supply (water - air)
Table clamping surface 2 x 1,350 x 500 mm
Max. table load approx. 550 kg
Number of T-slots 3
T-slot width 14H9 mm
T-slot distance 160 mm
4th axis 2 x RTA 1-180
Number of tool positions 22 pos.
Max. tool diameter 85 mm
Max. tool diameter with free adjacent pocket 135 mm
Max. tool length 400 mm
Tool change time 4.0 sec
Rapid traverse X/Y 25 m/min
Rapid traverse Z 20 m/min
Feed force 9 kN
Total power requirement 55 kVA
Machine weight approx. 10.0 t
Operating hours: 65155 h (05/2026)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
