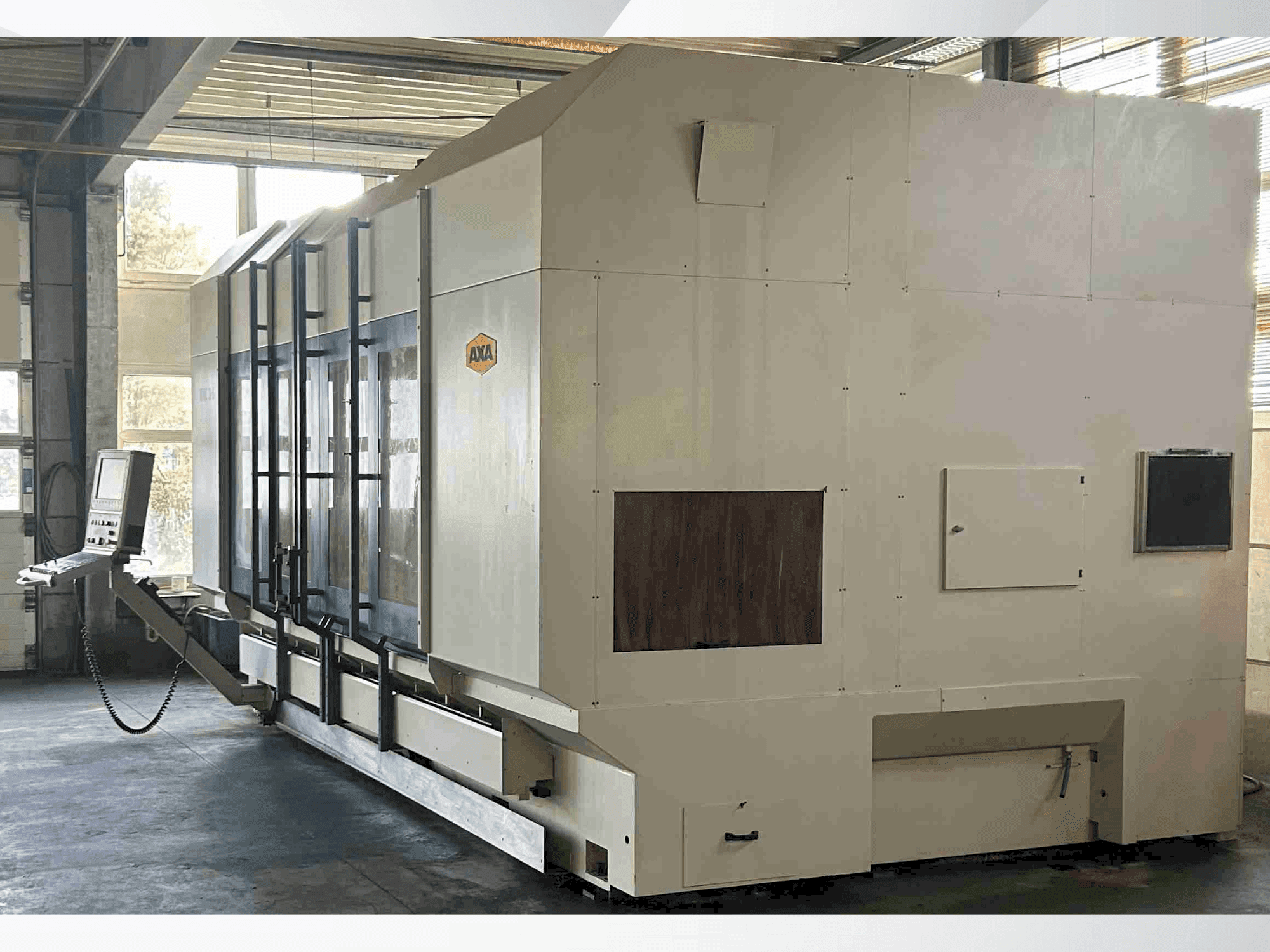

AXA - VHC 3-3000 SDE-MIL-AXA-2006-00002

Additional Equipment

• - Machines comes with C-axis and a +/-100º b-axis head.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Torque at 40%: 143 (-255) nm
  • - Max. Power at 40%: 30 (40) kw
  • - Coolant supply through spindle: 40 bar
  • - Max. Feed force: 9000 n
  • - X-axis travel: 1760 - 9000 mm
  • - Pendulum travel: approx. X-travel/2 - 500 mm
  • - Y-axis travel (horizontal/vertical): 700 (900) mm
  • - Z-axis travel (horizontal/vertical): 850 (950) mm
  • - Distance table to spindle nose (horizontal/vertical): 250 - 1100 mm / 40 - 890 mm
  • - T-slots, center slot as alignment slot h7: 14 h9 mm
• Qualitative Machine Benefits:
  • - T-slot spacing: 160 mm
  • - 3d probe: rmp 60 renishaw
  • - Tool probe: tt140 heidenhain
  • - Nc swivel head, infinitely adjustable, swivel range ± 100°
  • - Swivel range b-axis: ± 90°
  • - Locking: 2. 5° (1°, stepless)
  • - Min. Tool change time: 5 sec.
  • - Positioning accuracy over 1000 mm: ± 0. 015 (0. 0075) mm
  • - Repeatability: ± 0. 005 mm
  • - Milling in st 60 max. : 800 cm³/min

Extra information

• - Machine still under power / Drilling in St 60 max.: Ø 35 mm/ Thread cutting in St 60 max.: M 30/ Additional weight per meter of X-travel: approx. 2500 kg/ Weight of base machine (X = 1760): approx. 14500 kg/ Working height: min. 40 mm max. 890 mm (vertical)/ min. 250 mm max. 1100 mm (horizontal)/ Drive Power: The AC hollow shaft motor provides a power of 30 kW/143 Nm at 40% ED./ Spindle Speed: The spindle has a speed range of 30−6,000 U/min./ Tool Changer: It has a chain magazine with 22 tool slots (SK40 DIN69871A/69872 A)./ Dimensions: Weight: approximately 16,500 kg./ Dimensions (L×B×H): approximately 5.7 m×3.9 m×3.4 m (+1.7 m for the chip conveyor)./ Workspace Encapsulation: A bellows cover with sheet metal lamellae is used for encapsulation./ Extension of the Y-axis stroke to 900 mm and Z-axis stroke to 950 mm/ Shuttle operation with a shuttle plate made of aluminum, including a viewing window and safety switch./ Expansion of the tool magazine to 36 tool slots/ Hydraulic clamping for the SK 40 tool holder/ 1-axis NC swiveling head that is continuously positionable with a range of ±100∘/ and programmable in steps of 0.001∘/ Increased drive power with an AC hollow shaft motor (No. 111). The maximum power is 27 kW/100% ED or 40 kW/40% ED. The maximum torque is 127 Nm/100% ED or 191 Nm/40% ED./ Increased spindle speeds with a range of 30−12,000 U/min with oil-spray-mist lubrication/ Coolant supply through the spindle, including an external 400-liter tank with a paper band filter system and a high-pressure pump. It can provide up to 40 bar of pressure. This option requires the chip conveyor option/ A hinged belt chip conveyor (left or right) with an integrated 200-liter coolant tank and a pump for external cooling/ A 5th axis NC rotary table RTA 4L-800 with a faceplate diameter of 1000 mm. The table is designed for a horizontal setup with hydraulic clamping/ The RTA is integrated to be level with the rigid table/ A Heidenhain iTNC 530 control system, combined with digital drive control and a 15" TFT display/ A 3D touch probe (Renishaw RMP 60) for tool measurement, which is stored in the tool magazine and can be automatically changed. The probe software is used for zero point and position determination, centering, and electrical workpiece alignment/ A tool touch probe system (Heidenhain TT 130) for measuring tool lengths and radii, which can be mounted in the machining area and measures with either a standing or rotating tool
