AXA VPC 50U

AXA - VPC 50UDE-MIL-AXA-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AXA VPC 50U For Sale | gindumac.com

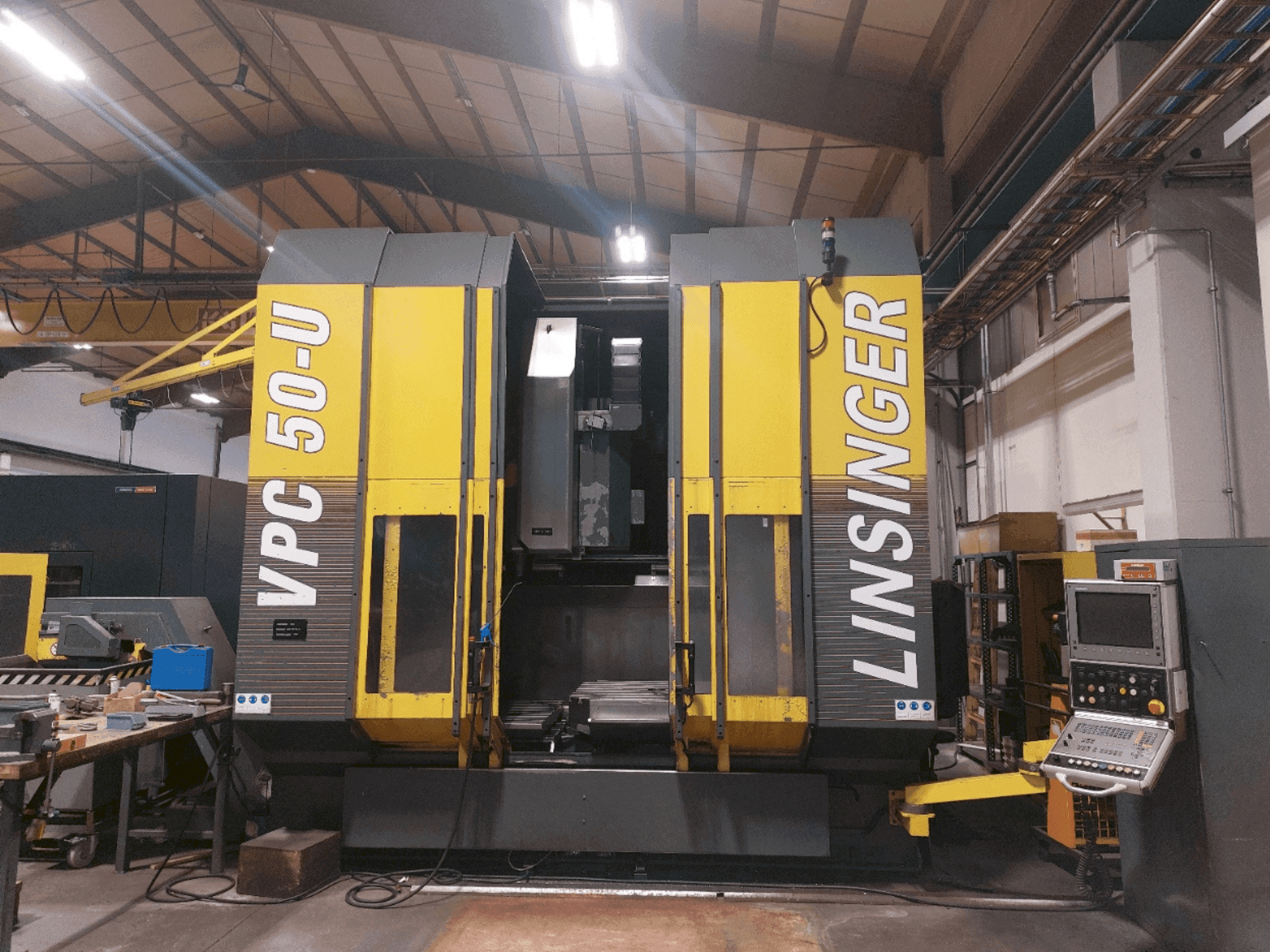

This 5-axis AXA VPC 50U vertical machining center was manufactured in 2004. It features a large X-stroke of 2300mm, Y-stroke of 1200mm, and Z-stroke of 700mm, with a spindle speed range of 30-7500 rpm and a robust SK50 spindle design. Equipped with an iTNC 530 control type and capable of holding 60 tools, consider the opportunity to buy this AXA VPC 50U vertical machining center. Contact us for more information.

Overview

brand: AXA
year: 2004
MODEL: VPC 50U
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AXA VPC 50U

General Data

Machine weight: 22000 kg

Control Unit

Brand: HEIDENHAIN
Model: ITNC 530

Main drive

Spindle speed range: 30-7500 rpm 1/MIN
Tool taper: SK50
Number of axis: 5

Movement

X-AXIS Movement: 2300 MM
Y-AXIS Movement: 1200 MM
Z-AXIS Movement: 700 MM

Additional Equipment

- Tool places: 60
- Y (+U) Ball screw drive defective
- B-axis loses zero position
- electric handwheel HR 410 Heidenhain
- 3 D-probes MP 10 E Renishaw / TT 130 Heidenhain tool probe
- 2 Manual guns / 4 Work area lights

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nc round table tvd:rtas-1100x1100
- - 1 swivel head
- - External belt filter unit t v : sa 25/400 20 bar 400 liter usb
- - Enclosure climate control unit rittal
- - Workspace encapsulation with 200mm extraction sleeve and sieve
- - Table clamping surface1100x 1100 with 13 t-slots 18h9 central alignment slot 18h7

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Technische Daten AXA VPC 50 U (2004).pdf
