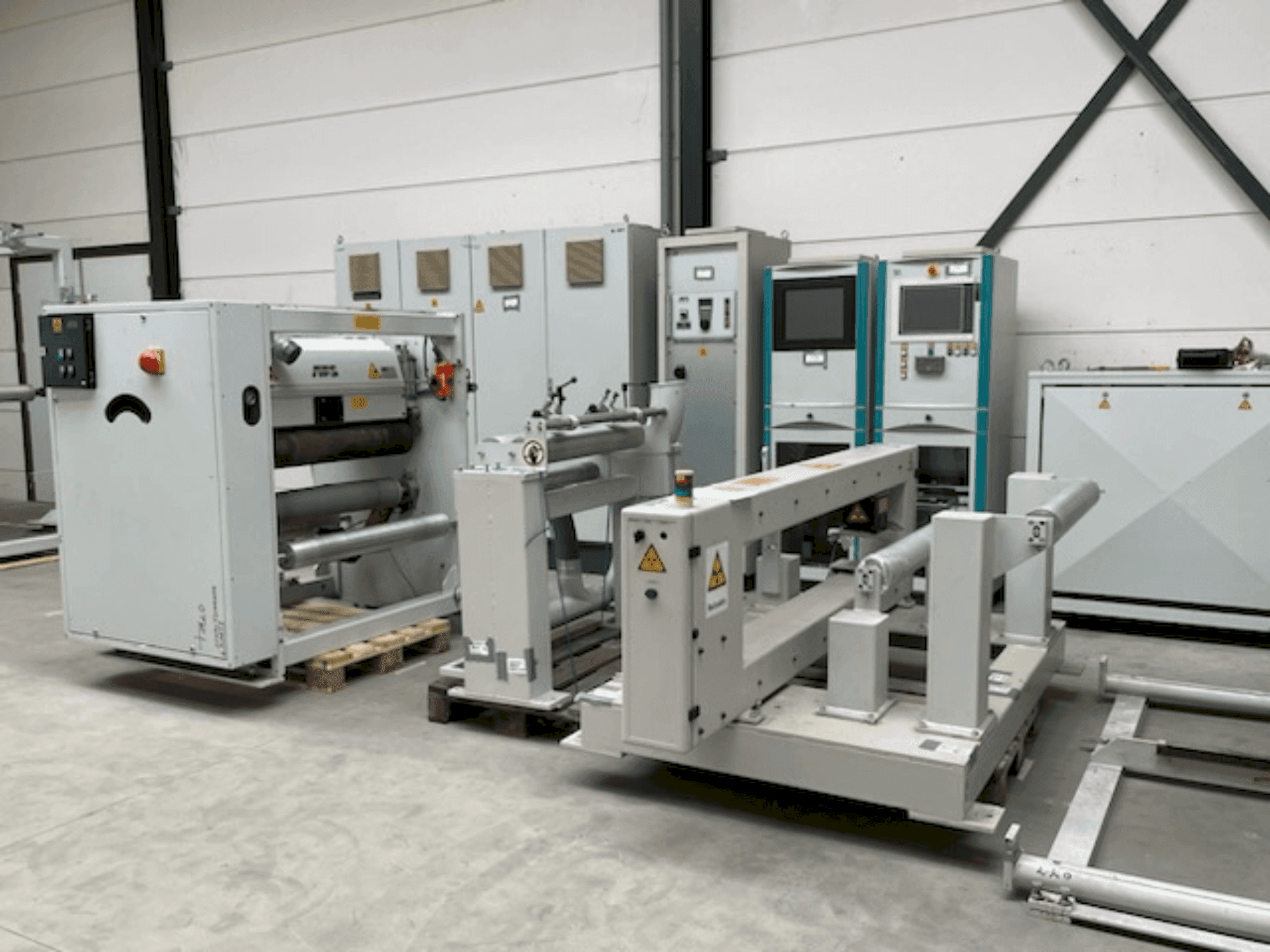

Battenfeld - BA 60NL-EXT-BAT-1998-00001

Additional equipment

• Non-contact thickness measurement for automatic TD profile measurement with double-sided corona treatment (max 12000W)
• Optical inspection system, including a marking system for detecting faults, incident and transmitted light system
• Includes components for cooling, screen changing, feed block, slot die, cutting, edge banding, drying, dosing, transferring, and antistatic control.

Machine Benefits

Qualitative Machine Benefits

• Equipped with high-quality additional components for efficient production and quality control

Technical Machine Benefits

• The extrusion line is intended for the production of cast film
• Processing thermoplastics within a temperature range of 150°c to 300°c
• Possible layer structures: monofilm/multi-layer
• Total capacity of extruder: maximum 200 kg/h / film width range (net): 600 - 700 mm / cutting of two rolls possible: 2x 800 - 2x 1055 mm / thickness range: 25-580 μm / production speed: 10 - 150 m/min / roll width: 2500 mm / max roll weight: 2000 kg
• The system can process pp/pe/pet / data of the line / total capacity of the extruder max. 200 kg/h / battenfeld extruder type; s5 type 95u / bex 1-60-30b/u
• Film width range (net): 600 - 700 mm / cutting of two rolls possible (2x 800 - 2x 1055 mm) / thickness range: 25-580 μm / production speed: 10 - 150 m/min / roll width: 2500 mm / max. Roll weight: 2000kg
• Length 20 m/ width 5 m /height 3. 4 m (without the dosing systems)
