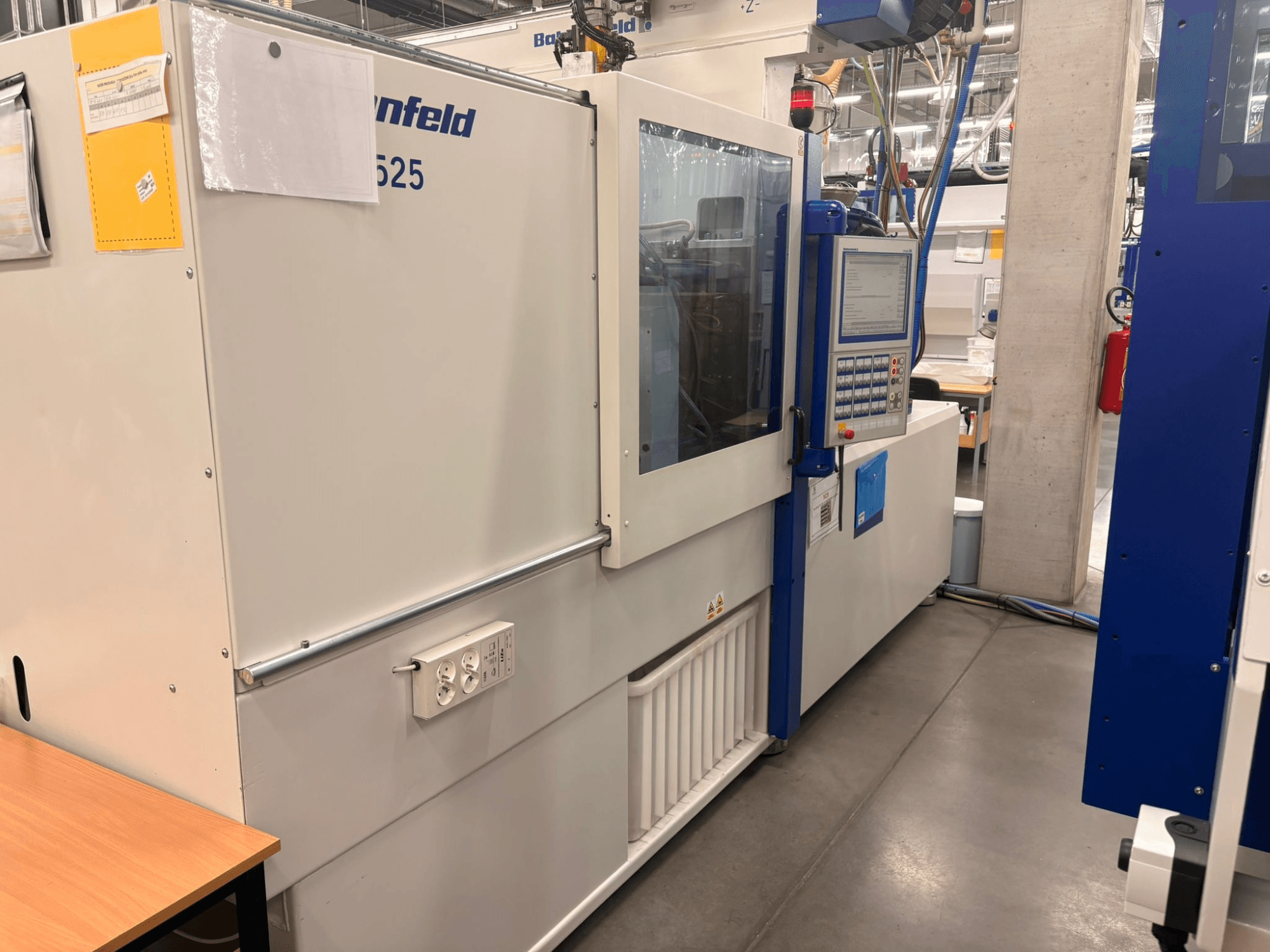

This Battenfeld HM 100/525 was manufactured in 2008. A hydraulic injection moulding machine with a screw diameter of Ø40 mm and injection volume of 251 cm³. It features tie bar spacing of 470 x 420 mm and has been operating for approximately 26580 hours. Currently used with a Battenfeld UNIROB R10S robot for producing polypropylene containers. Net weight is 4600 kg. Contact us for more information about this machine.
Overview
- brand: Battenfeld
- year: 2008
- MODEL: HM 100/525
- production hours: 26580
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: BATTENFELD
Technical Information - Battenfeld HM 100/525
Control Unit
- Control Brand: BATTENFELD
- Control Model: UNILOG B6
Dimensions
- Machine Weight: 4600 kg
Technical Specification
- Screw Diameter: 40 mm
Additional Information
Total operating hours: approx. 26,580 h
Current application: Producing PP (polypropylene) containers; currently running with a robot (see Additional equipment)
Injection unit:
Injection volume: 251 cm³
Clamping unit:
Tie bar spacing: 470 x 420 mm
Number of core pulls: 1
Additional equipment
Robot:
Manufacturer: BATTENFELD
Model: UNIROB R10S
Year of manufacture: 2007
Type: Cartesian handling robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
