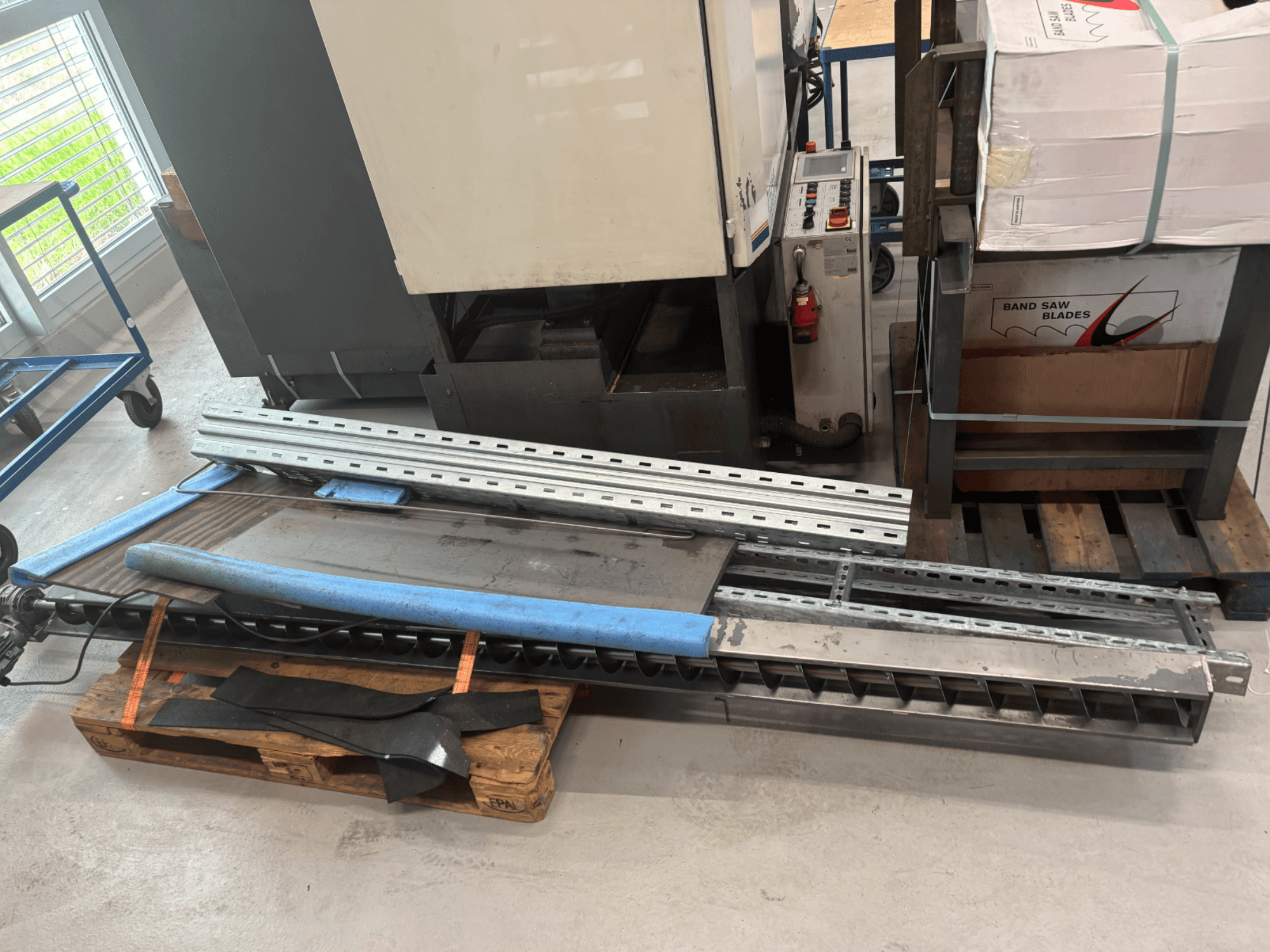

Metal Band Saw manufactured in 2009. This BAUER SA 430 ZA features a cutting capacity of 430 mm and includes a hydraulic material clamping system for efficient operation. It is equipped with a touchscreen control for preselection of cutting pressure and force, ensuring precision in cutting tasks. If you are looking to get high-quality cutting capabilities, consider the BAUER SA 430 ZA machine we have for sale. Contact us for further details.
Overview
- brand: BAUER
- year: 2009
- MODEL: BAUER SA 430 ZA
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
Technical Information - BAUER BAUER SA 430 ZA
Dimensions
- Machine Height: 2400 mm
- Machine Length: 3110 mm
- Machine Weight: 2500 kg
- Machine Width: 2210 mm
Additional Information
CE Marked
Voltage: 400 V
Control Voltage: 24 V
Frequency: 50 Hz
Motor Power: 4 kW
Rated Current: 11.5 A
Fuse Protection: 13 A
Coolant Pump
Hydraulic Pump
Cutting Capacity: 430 mm
Saw Blade Dimensions: 5200 x 43 x 1.3 mm
Infinitely Variable Cutting Speed
Saw Blade Guidance: Guide Rollers and Carbide Guides
Hydraulic Material Clamping
Hydraulic Saw Frame Feed with Cutting Pressure Control
Manual Material Feed
Hydraulic Vice Feed System
Touchscreen Control for Preselection of Cutting Pressure and Cutting Force
Rapid Downfeed
Parts Collection Tray
More Than 5 Saw Blades Included
Saw Blade Type: SIGMA
Saw Blade Length: 5200 mm
Saw Blade Width: 43 mm
Saw Blade Thickness: 1.3 mm
Ready for Immediate Operation
Roller Conveyor optional, not included
Chip Conveyor optional, not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
