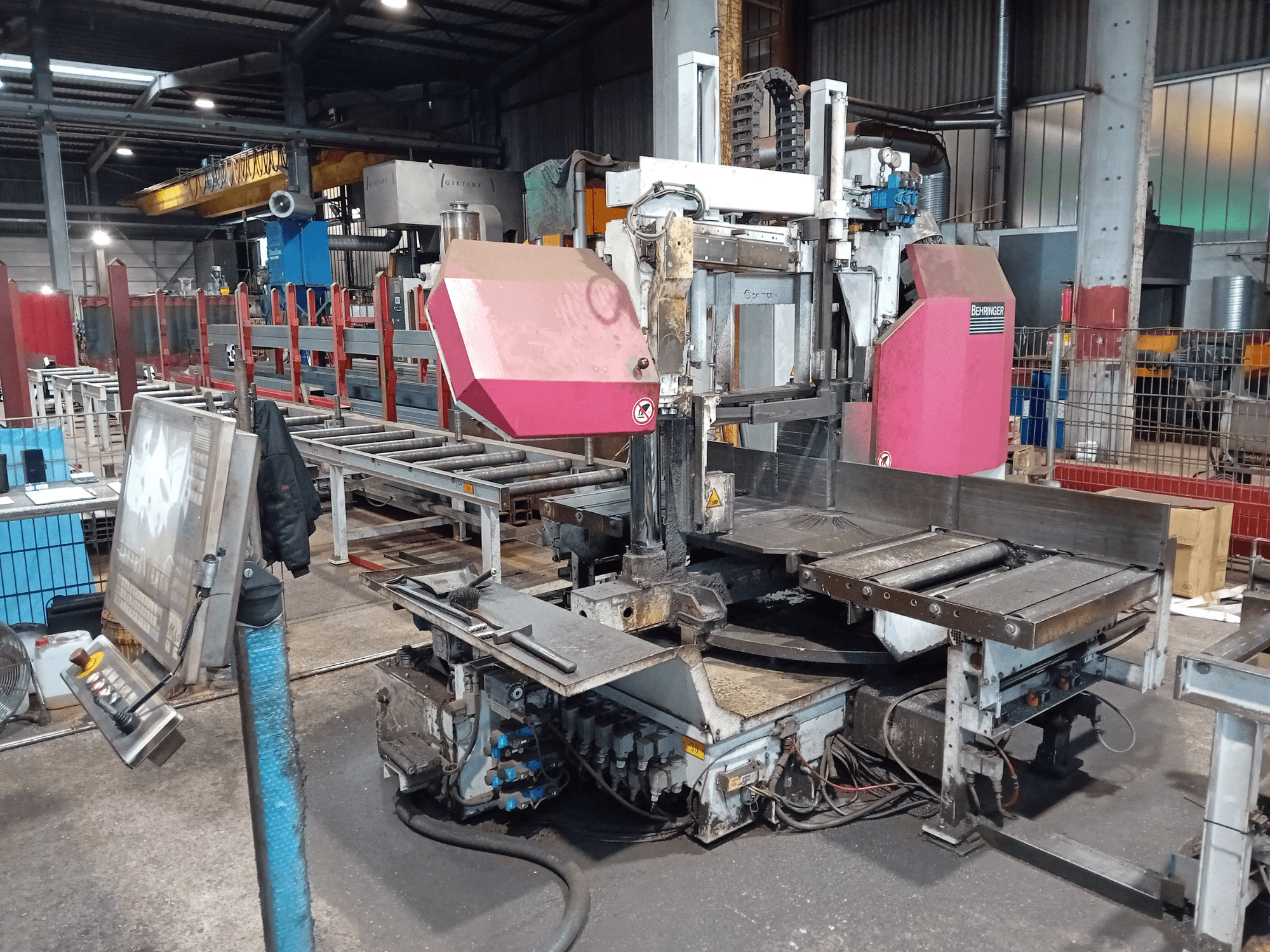

This Behringer HBP 410-723 G Metal Band Saw was manufactured in 2014. It features an automatic feed and discharge system, with a working area capacity up to 700 mm x 400 mm. Operating for approximately 5,900 hours, it supports a cutting speed of 20 – 140 m/min and is powered by a 4.0 kW saw drive. Consider the opportunity to buy this Behringer HBP 410-723 G Metal Band Saw. Contact us for more information about this machine.
Overview
- brand: Behringer
- year: 2014
- MODEL: HBP 410-723 G
- production hours: 5900
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
- Available from: 01/10/2026
Technical Information - Behringer HBP 410-723 G
Dimensions
- Machine Depth: 1850 mm
- Machine Height: 2600 mm
- Machine Weight: 2800 kg
Additional Information
Working area (Ø / flat at 90°): 410 mm / 700 mm x 400 mm
Working area (Ø / flat at 75° left): 410 mm / 660 mm x 400 mm
Working area (Ø / flat at 60° left): 410 mm / 580 mm x 400 mm
Working area (Ø / flat at 45° left): 420 mm / 450 mm x 420 mm
Working area (Ø / flat at 30° left): 300 mm / 300 mm x 300 mm
Working area (Ø / flat at 75° right): 410 mm / 660 mm x 400 mm
Working area (Ø / flat at 60° right): 410 mm / 580 mm x 400 mm
Working area (Ø / flat at 45° right): 380 mm / 450 mm x 380 mm
Smallest material dimensions (Ø / flat): 20 mm / 20 mm x 20 mm
Smallest cutting length (90°): approx. 45 mm
Remaining cutting length, manual (90°): approx. 90 mm
Cutting speed: 20–140 m/min
System/belt tensioning pressure: 65 bar
Connected load: approx. 14 kW
Voltage: 400 V, 50 Hz
Control/hydraulic valve voltage: 24 V DC
Current consumption: approx. 36 A
Fuse protection: 50 A
Cable cross-section: min. 16 mm²
Material support height: 800 mm
Additional equipment
Automatic feed and discharge
Chip conveyor (motor power: 0.09 kW)
