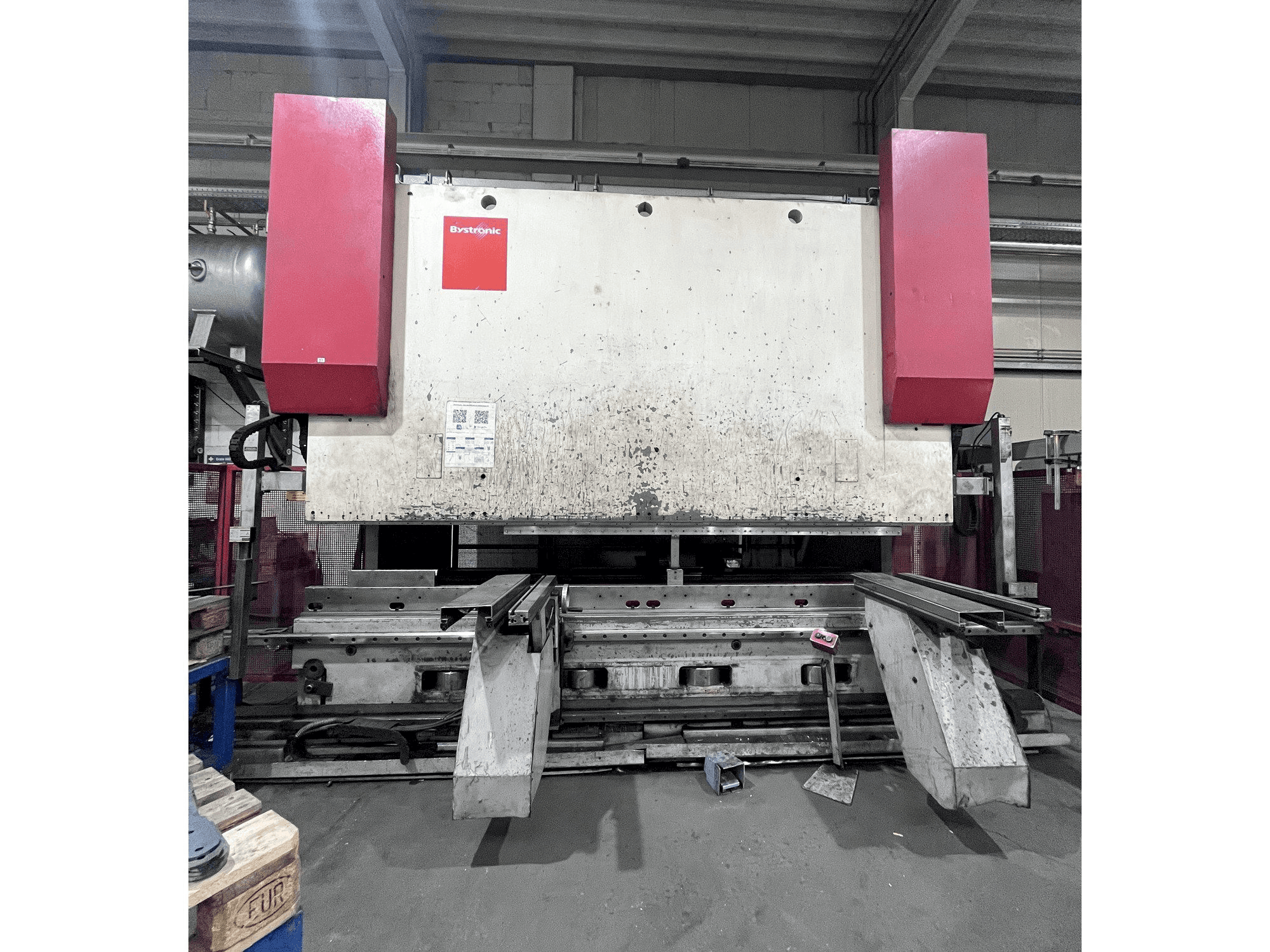

Front view of BEYELER PR10 320/4100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

BEYELER PR10 320/4100

BEYELER - PR10 320/4100DE-BEN-BEY-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Beyeler PR10 320/4100 Bending machine

This Beyeler PR10 320/4100 Bending machine was manufactured in the year 2004 in Germany. It is equipped with a CYBELEC ModEva 12 control unit. The machine has a pressing force of 3200 kN and a bending length of 4100 mm.

Overview

brand: BEYELER
year: 2004
MODEL: PR10 320/4100
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold
control unit brand: CYBELEC

Technical Information - BEYELER PR10 320/4100

General Data

Machine weight: 28800 kg

Control Unit

Model: ModEva 12
Brand: CYBELEC

Main drive

Pressing force: 3200 kN
Bending length: 4100 mm
Distance between bars: 3600 mm
Stroke: 565 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Delivery speed: 180 mm / sec
- - Working speed: 1 - 10 mm / sec
- - Retraction speed: 110 mm / sec
- - Stand projection: 510 mm
- - Installation height: 850 mm, table height: 830 mm
- - Engine power: 22. 0 kw
- - Controlled axes y1 - y2 - x - r - z1 - z2 - ap1 - ap2
- - 2x front motorized/hydraulic bending aids
- - Hydraulic upper tool clamp
- - Hydraulic / motorized cnc crowning
Qualitative Machine Benefits:
- - Motorized fiessler safety device at the front
- - 2 hand/foot switches
- - Ec declaration of conformity

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
