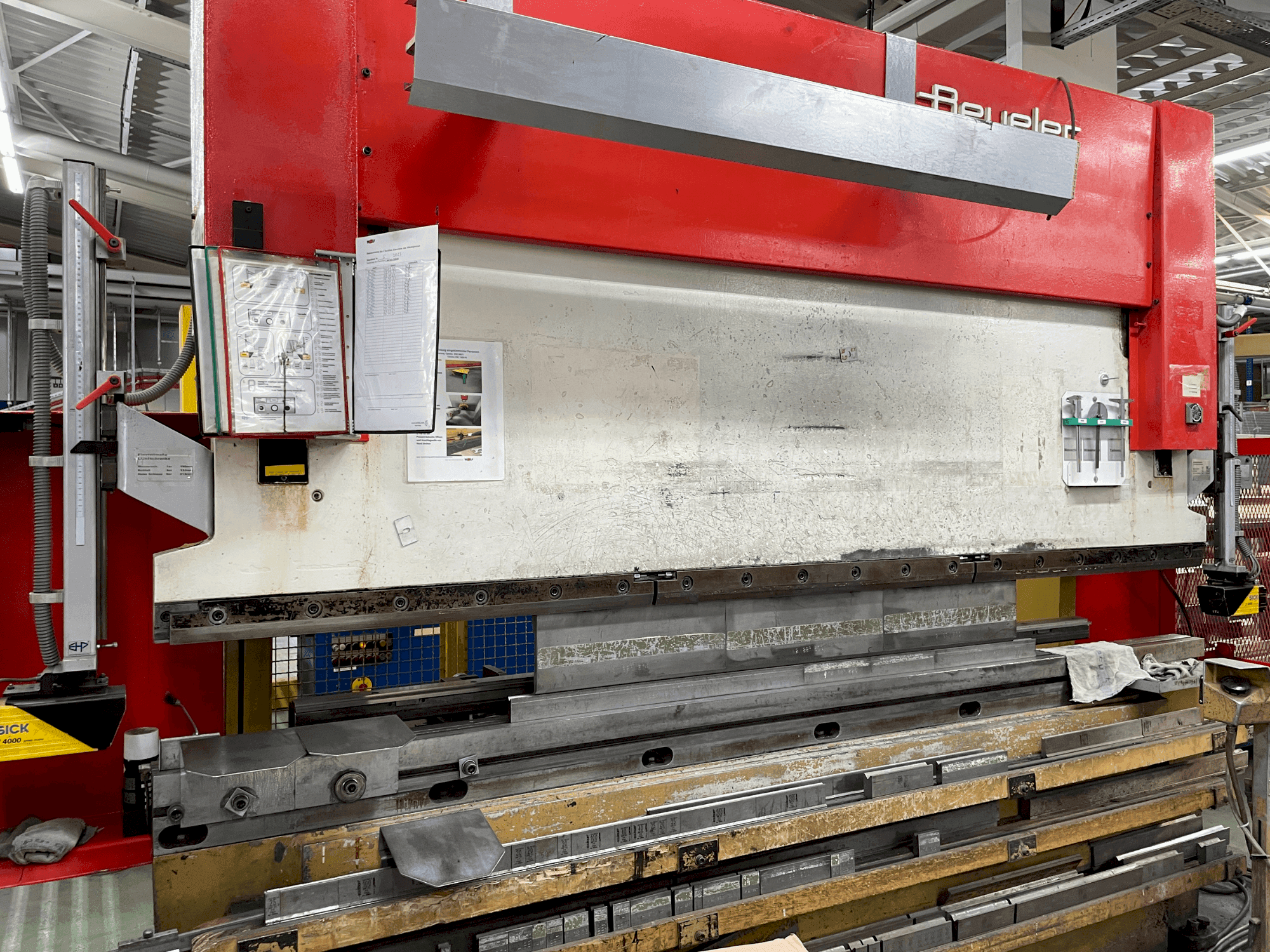

BEYELER RT 125 x 3100

Extra information

• - Control system: DNC70PS Working Parameters Pressing force 1250 kN Retraction force 60 kN Working length 3100 mm Distance between uprights 2600 mm Throat depth 305 mm Distance between lower and upper beam 526 mm Stroke 215 mm Distance floor-lower beam 828 mm Tool holder A Machine Parameters number of working cylinders 2 number of crowning cylinders 4 rapid traverse 100 mm/s working speed 7 mm/s retraction speed 90 mm/s holding time of the upper beam 0.1 s main motor power 7.5 kW oil filling 115 liters Backgauge max. adjustment speed 200 mm/s adjustment range 500 mm direct current motor 0.9 kW General Parameters lowering of the bottom beam -- mm floor lowering of the uprights -- mm
