BIESSE - ROVER 20 IE-CNC-BIE-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used BIESSE ROVER 20 - 2006 - For Sale | gindumac.com

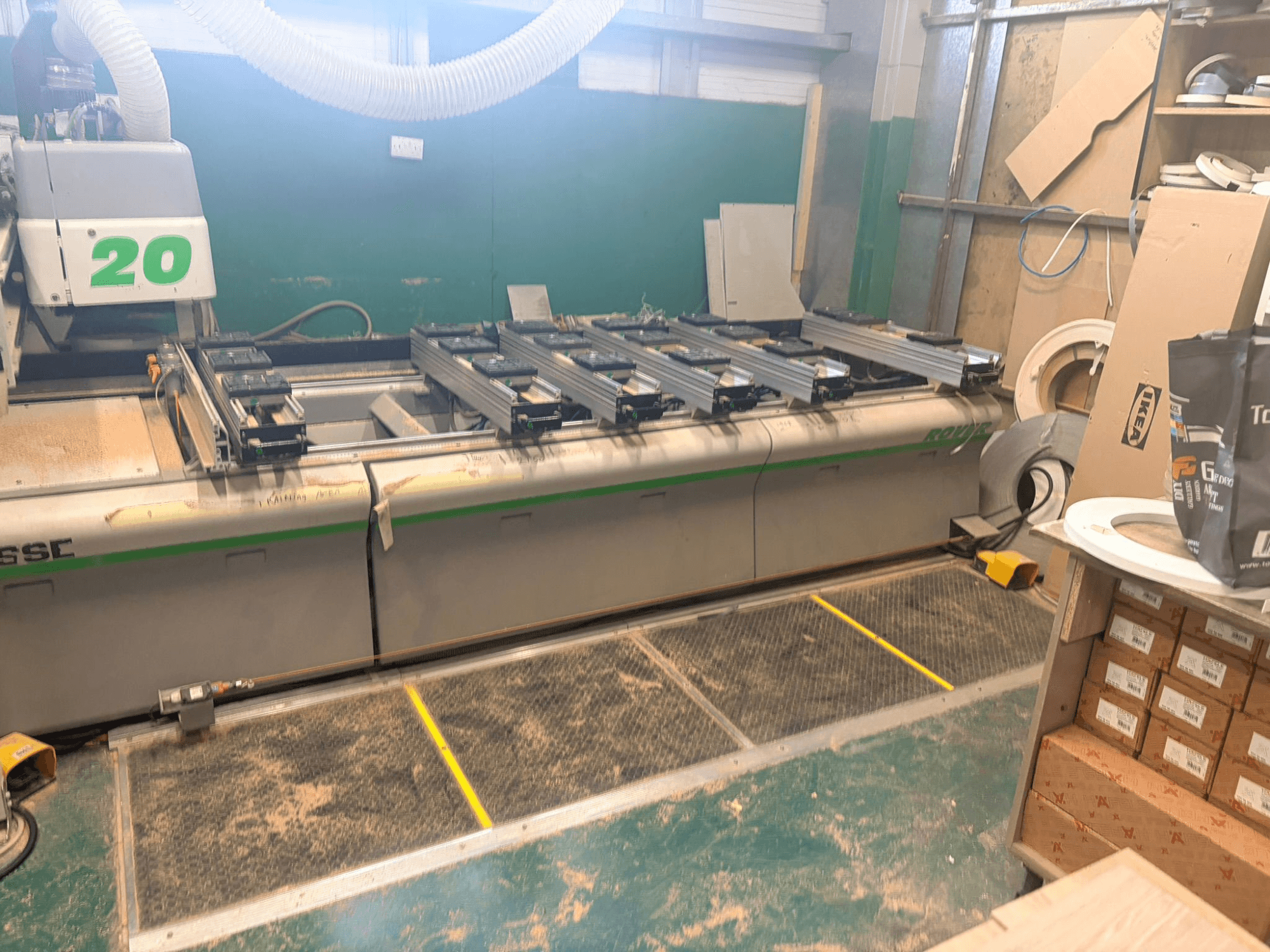

This 3-axis BIESSE ROVER 20 CNC Wood Machining Centre was manufactured in 2006. It features a working area of approximately 3060 × 1260 mm and a powerful 7–9 kW HSD electrospindle with speeds up to 24,000 RPM. The machine is equipped with an 8-position rear tool changer and offers various table types for versatility. If you are looking to get high-quality wood machining capabilities, consider the BIESSE ROVER 20 machine we have for sale. Contact us for further details.
Overview
- brand: BIESSE
- year: 2006
- MODEL: ROVER 20
- application type: CNC Wood Machining
- Location: Ireland
- machine type: CNC Wood Machining Centre
- control unit brand:
Technical Information - BIESSE ROVER 20
Movement
- Number of Axes: 3
- Z-axis Travel: 200 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 24000 RPM
Additional Information
Working area: approx. 3060 × 1260 mm (10’ × 4’); Z travel around 150–200 mm
Main spindle: 7–9 kW HSD electrospindle; up to 18,000–24,000 RPM; ISO30 or HSK tool holder (depends on package)
Tool changer: typically 8-position rear; some units with 10 or 12 positions
Drilling head: BH17/BH21 style with vertical and horizontal drill spindles; grooving saw unit (optional)
Table type: pod & rail table or flat vacuum table; ATS vacuum system
Controller: NC1000 / XP600 control; running BiesseWorks / Biesse Rover control software
Electrical: 400V 3-phase; 50/60 Hz; around 15–25 kW connected load
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
