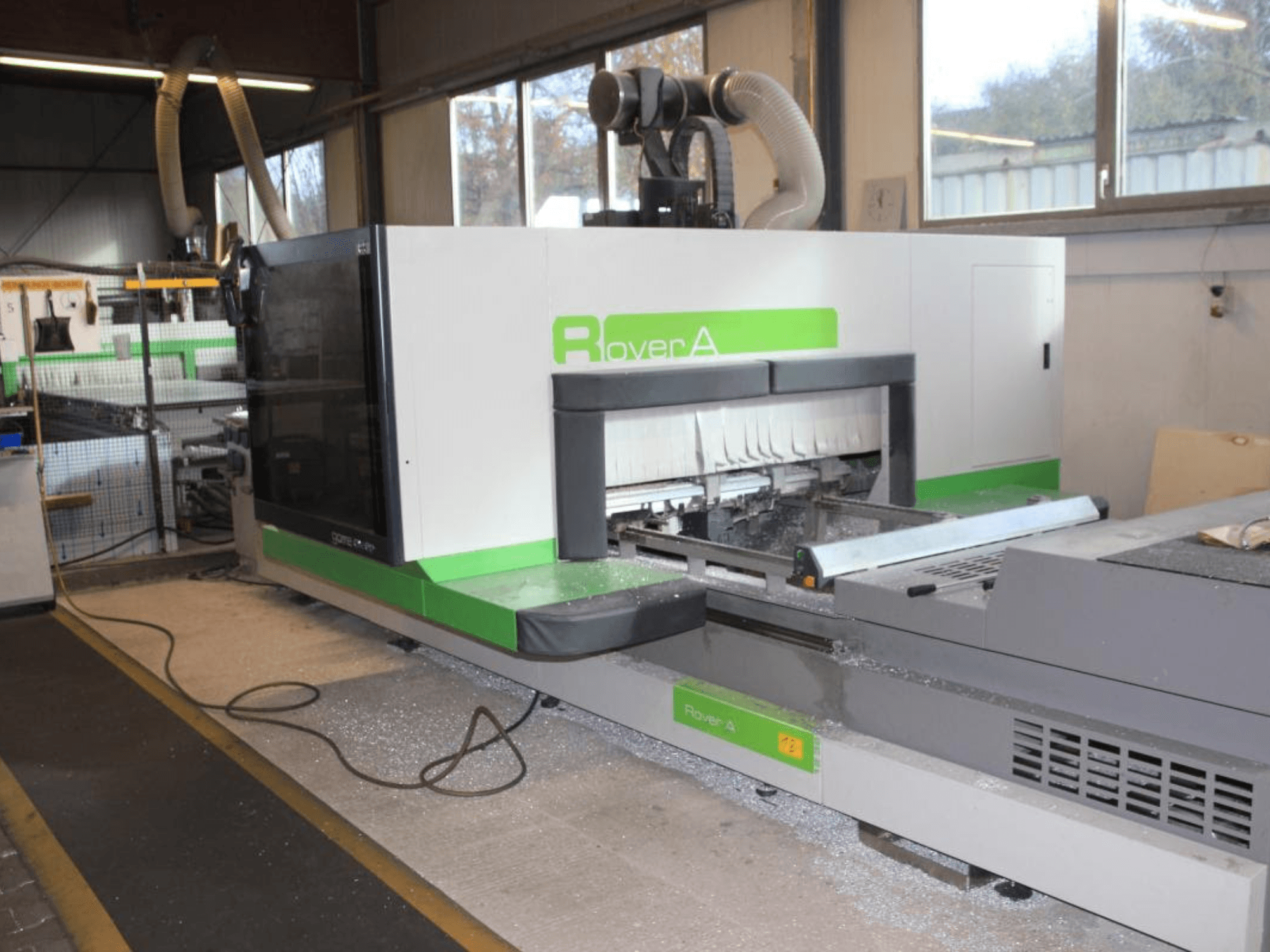

This 4-axis BIESSE Rover A 1232 was manufactured in 2021. It features a working area of 3140 mm in the X-axis, 1260 mm in the Y-axis, and a Z-axis travel of 245 mm. The machine is equipped with an electrospindle power of 13.2 kW and a maximum tool diameter of 113 mm. If you are looking to get high-quality CNC routing capabilities, consider the BIESSE Rover A 1232 machine we have for sale. Contact us for further details.
Overview
- brand: BIESSE
- year: 2021
- MODEL: Rover A 1232
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Router
- control unit brand: BIESSE
Technical Information - BIESSE Rover A 1232
Control Unit
- Control Brand: BIESSE
- Control Model: HH660 PC-based control
Dimensions
- Machine Length: 7116 mm
- Machine Weight: 3000 kg
- Machine Width: 5851 mm
Movement
- Number of Axes: 4
- X-axis Travel: 3140 mm
- Y-axis Travel: 1260 mm
- Z-axis Travel: 245 mm
Technical Specification
- Spindle Power: 13.2 kW
- Spindle Speed: 24000 RPM
Additional Information
Power supply voltage 400 VAC
Full load current 31.7 A
Number of power supply phases 3
Installed power 18.66 kW
Frequency 50 Hz
Short circuit protection rating 10 kA RMS Sym
Working area X 3140 mm
Working area Y 1260 mm
Working area Z 245 mm
Max panel thickness: depends on vacuum module height (H74 / H29) and tooling
Workpiece support length 1200 mm
Vacuum pump capacity 90 m³/h
Vacuum pump capacity 108 m³/h at 60 Hz
Vacuum system dry pump
Electrospindle power 13.2 kW
Electrospindle speed 12000 to 15000 rpm S1
Electrospindle speed 12000 to 24000 rpm programmable
Tool holder HSK F63
Rotation clockwise and counterclockwise
Two separate magazines installed:
8-position tool magazine (rear / Y-axis area)
13-position tool magazine (main X-axis unit)
Maximum tool diameter 113 mm
Maximum tool length 110 mm
Maximum tool weight 7.5 kg
Maximum total magazine weight 32 kg
Vacuum system:
Configurable vacuum pump system. Available configurations include:
– 2 × 90 m³/h
– 2 × 100 m³/h
– 1 × 250 m³/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
