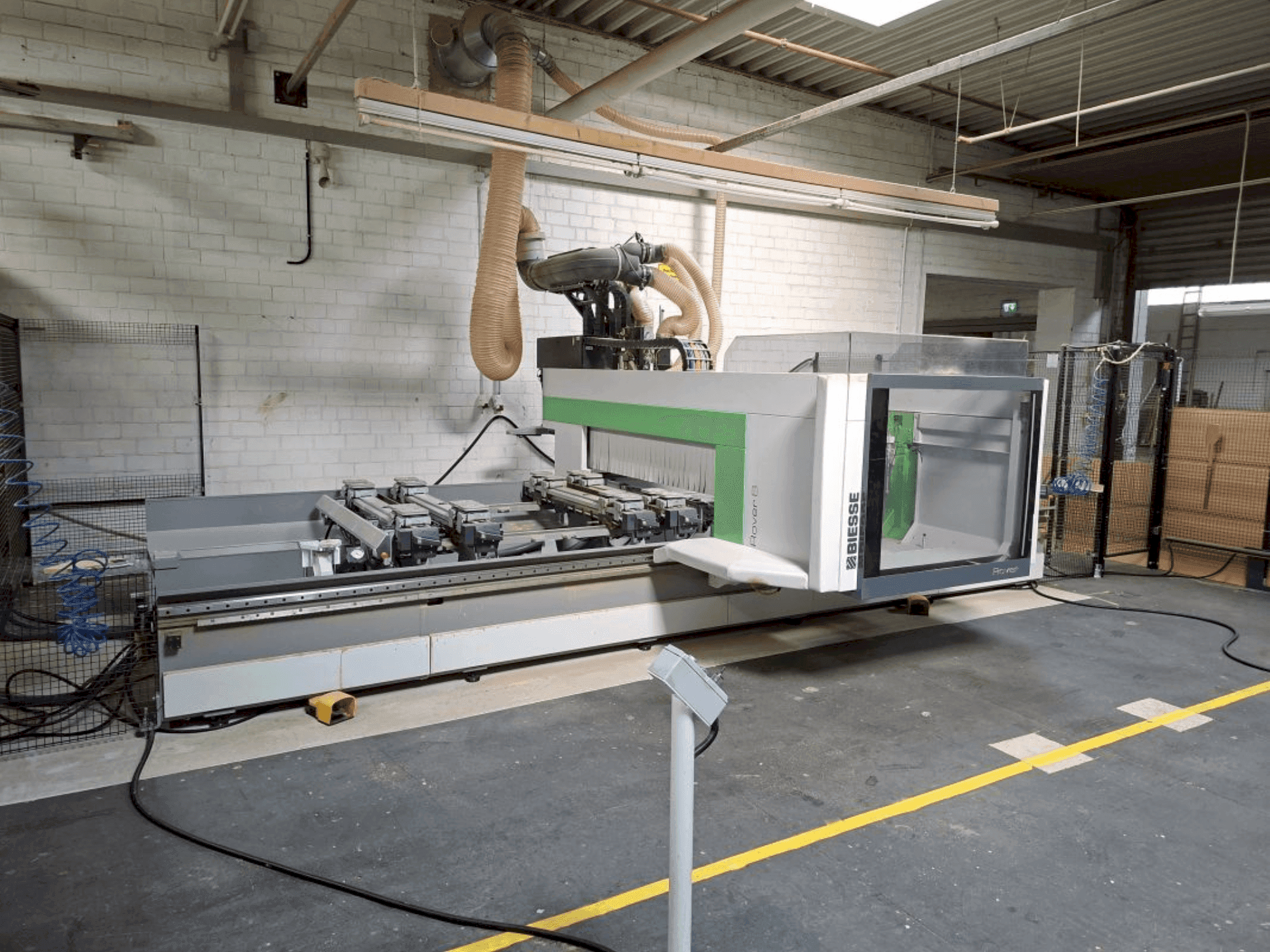

BIESSE - Rover B 1650DE-CNC-BIE-2015-00001

Additional Equipment

• - Self-floating HSK F63 copying unit for milling at a constant depth, tool diameter 62 mm
• - Runs in Windows environment
• - Runs in Windows environment
• - Runs in Windows environment
• - Runs in Windows environment

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Z = 200 mm with modules h = 74 mm // z = 245 mm with modules h = 29 mm
  • - 1650 mm with thickness up to 60 mm on modules h = 74 mm // 1600 mm with thickness over 60 mm on modules h = 74 mm
  • - Workpiece supports: 8 ats workpiece supports, 32 module carriers
  • - Pneumatic system: division into 2 working areas in x
  • - Rear row stop: 140 mm stroke
  • - Middle row stop: positioned at 820 mm, 140 mm stroke
  • - Front row stop: positioned at 1460 mm, 140 mm stroke
  • - 4 side stops with 140 mm stroke (2 left + 2 right)
  • - 2 additional side stops with 140 mm stroke (1 left + 1 right)
  • - 4 removable center stops with 140 mm stroke (2 left + 2 right)

Extra information

• - Tools Machining Unit: 5 interpolating axes, 13 kW, with HSK F63 adapter, liquid-cooled Speed: Max 20000 rpm C-axis: 360° endless rotation, speed 12.4 rpm B-axis: Position axis +/- 100°, rotation speed 12.4 rpm Drilling Head: BH 29 L with automatic lubrication 16 vertical drilling spindles, 12 in X and 4 in Y 6 horizontal drilling spindles, double output 1 groove saw in X direction, diameter 120 mm, max cutting depth 25 mm Drills speed variably adjustable up to 6000 rpm Tool Magazine: Revolver magazine with 16 slots, installed on X unit Vacuum Pump: 300 m3/h with cam Chip Conveyor Belt: Integrated into machine bed for sizes 1650 and 1950
