- ➤ Used BIESSE Rover C 9.65 Router For Sale | gindumac.com

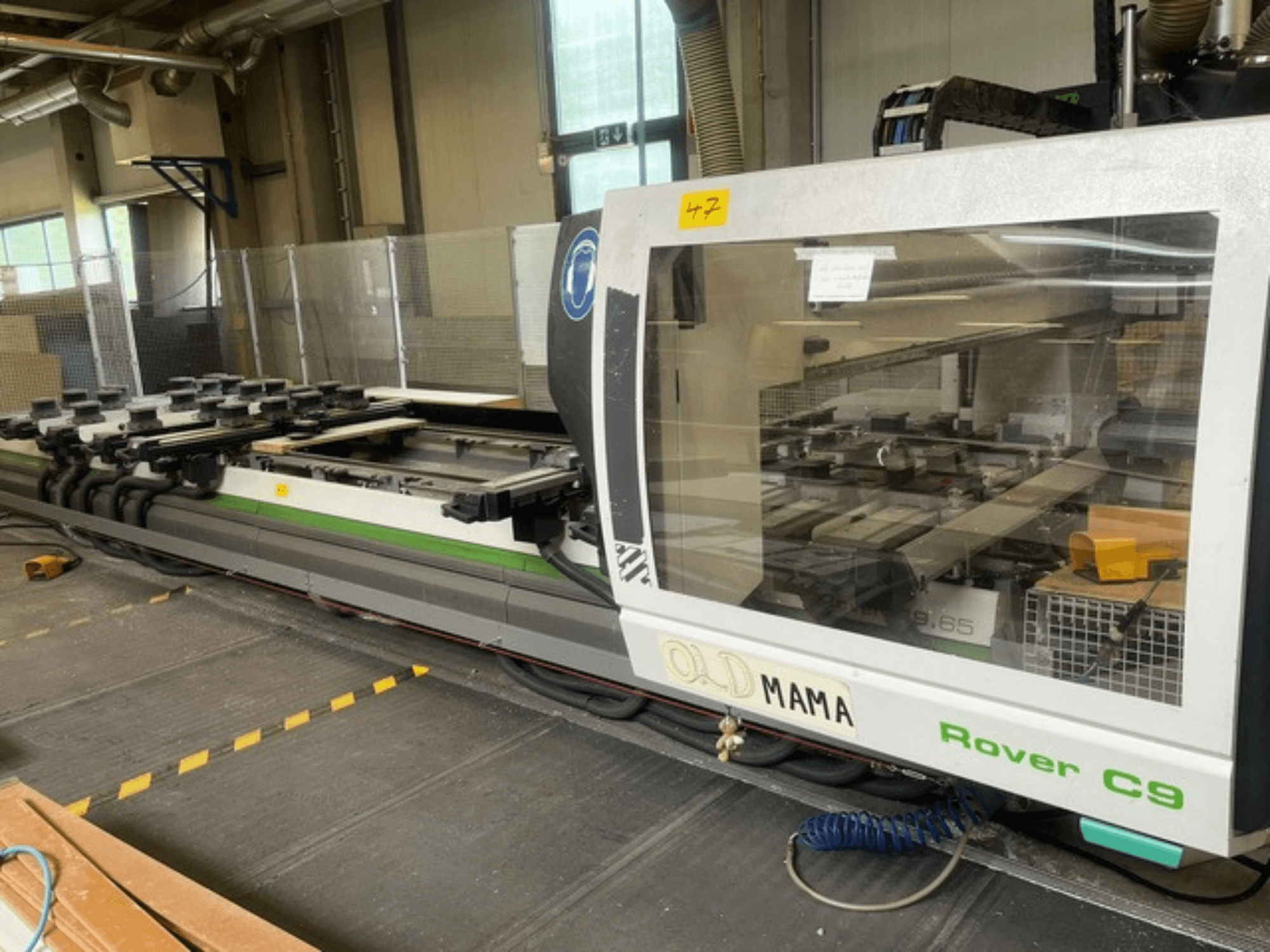

This 5-axis BIESSE Rover C 9.65 was manufactured in 2006. It features a working area of 6200 mm in X and up to 1935 mm in Y, with a Z-axis travel of 663 mm. The machine is equipped with a powerful 8 kW spindle and a tool changer with 22 positions. If you are looking to get high-quality CNC routing capabilities, consider the BIESSE Rover C 9.65 machine we have for sale. Contact us for further details.
Overview
- brand: BIESSE
- year: 2006
- MODEL: Rover C 9.65
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Router
- control unit brand: BIESSE
Technical Information - BIESSE Rover C 9.65
Control Unit
- Control Brand: BIESSE
- Control Model: XP600 PC-based control with Windows XP WRT
Dimensions
- Table Length: 6200 mm
- Table Width: 1520 mm
Movement
- Number of Axes: 5
- X-axis Travel: 6820.5 mm
- Y-axis Travel: 1963 mm
- Z-axis Travel: 663 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 22000 RPM
- Tool Stations: 22
Additional Information
Drive system X-axis: rack and pinion
Drive system Y-axis: ball screw
Drive system Z-axis: ball screw
Guide system: linear guides with recirculating ball bearing blocks
Motors: brushless motors with digital drives
Programming formats: DXF and CID3
Main spindle type: 5 interpolating axes machining unit
Spindle power S1: 8 kW at 12000 rpm
Spindle power S6: 9 kW at 12000 rpm
Maximum spindle speed: 22000 rpm
Tool interface: HSK F63
C-axis rotation: 360° continuous
C-axis speed: 13.5 rpm
B-axis rotation: ±100° (positioning) / ±98° (interpolation)
B-axis speed: 13.5 rpm
Z-axis feed speed: 30 m/min
Vacuum system: multi-zone vacuum with connections on both sides
Vacuum pump capacity: 250 m³/h (50 Hz) / 300 m³/h (60 Hz)
Worktable: ATS system with modular supports
Number of workpiece supports: 10
Number of module carriers: 40
Module size: 132 x 132 x H41.5 mm
Vacuum module size: 132 x 146 x H74 mm / 132 x 54 x H74 mm
Total module height: 115.5 mm
Clamping system: vacuum and pneumatic (Uniclamp optional)
Clamping force Uniclamp: 220 kg at 7 bar
Minimum workpiece length (Uniclamp): 140 mm
Drilling unit: BH 42 L
Vertical drilling spindles: 29
Horizontal drilling spindles: 6 (double output)
Grooving saw diameter: 120 mm
Drilling spindle speed: up to 6000 rpm
Tool changer: chain type
Tool changer capacity: 22 positions
Tool spacing: 180 mm
Max tool diameter (full load): 175 mm
Max tool diameter (single): 250 mm
Max tool length: 268 mm
Max tool weight: 7.5 kg
Total tool weight: 100 kg
Pick-up tool changer: 1 position
Max tool weight pick-up: 8 kg
Electrical supply: 380/400/415 V 50/60 Hz
Inverter for spindle: up to 14 kW
Cooling system: liquid cooling unit for electrospindles (1600 W)
Lubrication system: automatic centralized lubrication
Safety system: CE compliant with safety mats, guards and emergency stops
Chip removal: integrated chip conveyor
In 2023, the machine received a new 5-axis spindle head HS552 A HD 0S2 + ES360 F63 9 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
