Biglia - B.436-Y2 AT-TUR-BIG-2016-00001

Name: Biglia B.436-Y2
Brand: Biglia
SKU: AT-TUR-BIG-2016-00001
Price: 84000 EUR
Availability: InStock

84,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Biglia B.436-Y2 For Sale | gindumac.com

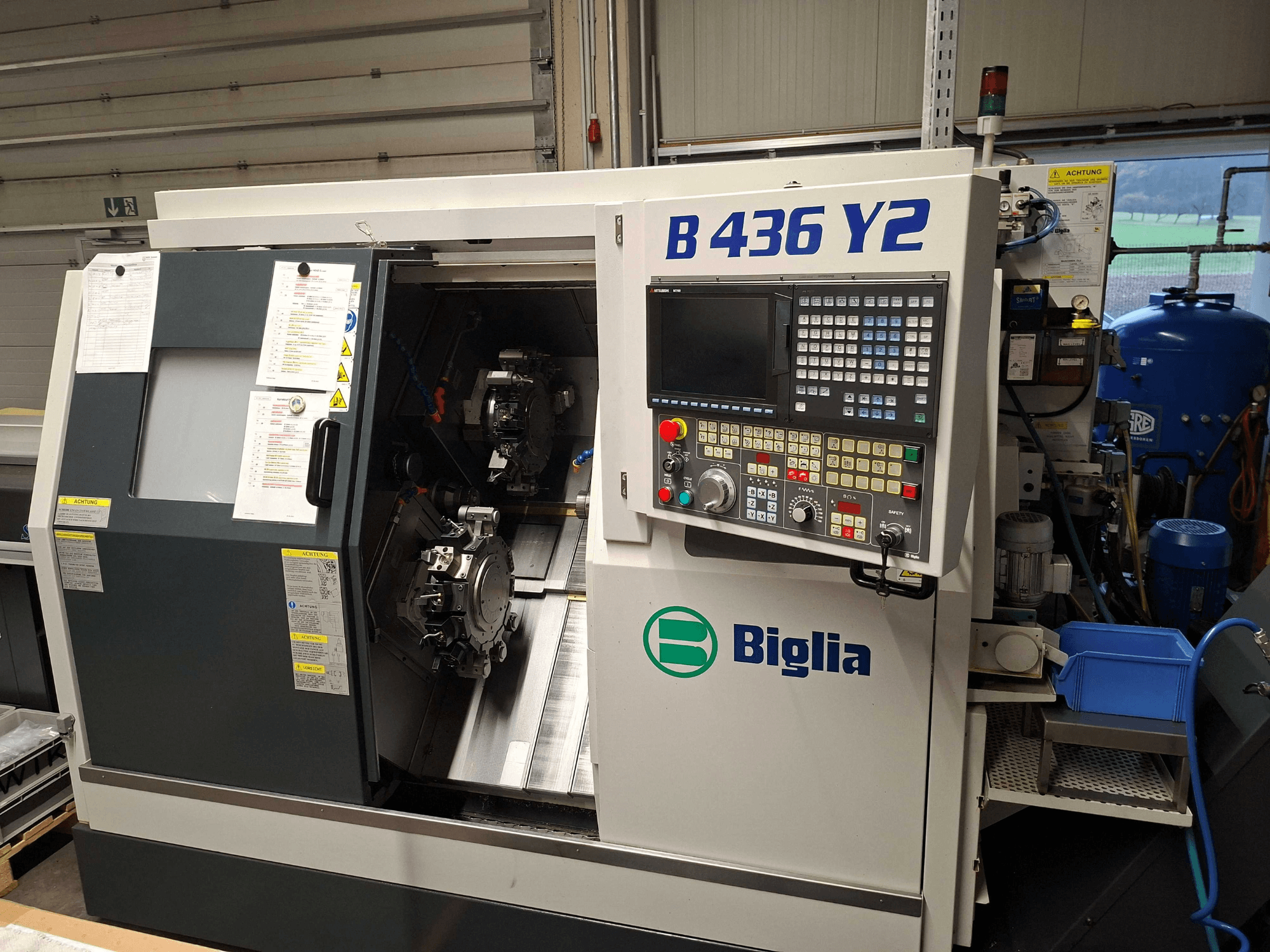

This 6-axis Biglia B.436-Y2 horizontal turning machine was manufactured in 2016. It features a maximum bar diameter of 36 mm, spindle speed up to 7000 rpm, and motor power of 11 kW. With rapid traverse rates up to 30 m/min and a comprehensive toolset including high-precision boring bar holders and radial drilling heads, this machine offers robust capabilities for complex machining tasks. If you are looking to get high-quality turning capabilities consider the Biglia B.436-Y2 machine we have for sale. Contact us for more information.

Overview

brand: Biglia
year: 2016
MODEL: B.436-Y2
production hours: 14063
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine

Technical Information - Biglia B.436-Y2

Movement

Number of Axes: 6

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 7000 RPM

Additional Information

Max. bar diameter: 36 mm
Aiming tube: 37.5 mm
Spindle nose: 115 mm
Draw tube: 46 mm
Continuous motor power: 7.5 kW
Continuous power available from: 1700 rpm
Max. torque: 62 Nm
Cylinder thrust area: 75 cm²
Cylinder stroke (max.) for clamping operation: 26 mm
Longitudinal slide (Z1 axis)
- Max. stroke: 300 mm
- Ball screw diameter/pitch: 25/10 mm
- Max. rapid traverse: 30 m/min
Cross slide (X1 axis)
- Max. stroke: 85 mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Vertical slide (Y1 axis)
- Max. stroke: 50 (+25/-25) mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Longitudinal slide (Z2 axis)
- Max. stroke: 300 mm
- Ball screw diameter/pitch: 25/10 mm
- Max. rapid traverse: 30 m/min
Cross slide (X2 axis)
- Max. stroke: 85 mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Vertical slide (Y2 axis)
- Max. stroke: 50 (+25/-25) mm
- Ball screw diameter/pitch: 25/5 mm
- Max. rapid traverse: 15 m/min
Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V
Operating pressure: 4.8–6.9 bar
Max. air consumption (supply): 0.10 m³/min (guideline)
Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm
Overall height (max.): 1900 mm

Additional equipment

High-precision boring bar holder Ø25 mm with internal coolant (Oesterle)
Precision reducing sleeve D=25/16 (Oesterle)
Precision reducing sleeve D=25/12 (Oesterle)
Precision reducing sleeve D=25/06 (Oesterle)
Collet chuck ER20, shank D=25 mm (Oesterle)
Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm
Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT)
Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT)
External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle)
Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle)
High-pressure pump 40 bar with replaceable filter cartridge
Coolant gun including its own pump
Collet chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
