BLISS-BRET - PHD 1500PL-OTH-BLI-2017-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- BLISS-BRET PHD 1500 hydraulic tryout test press machine

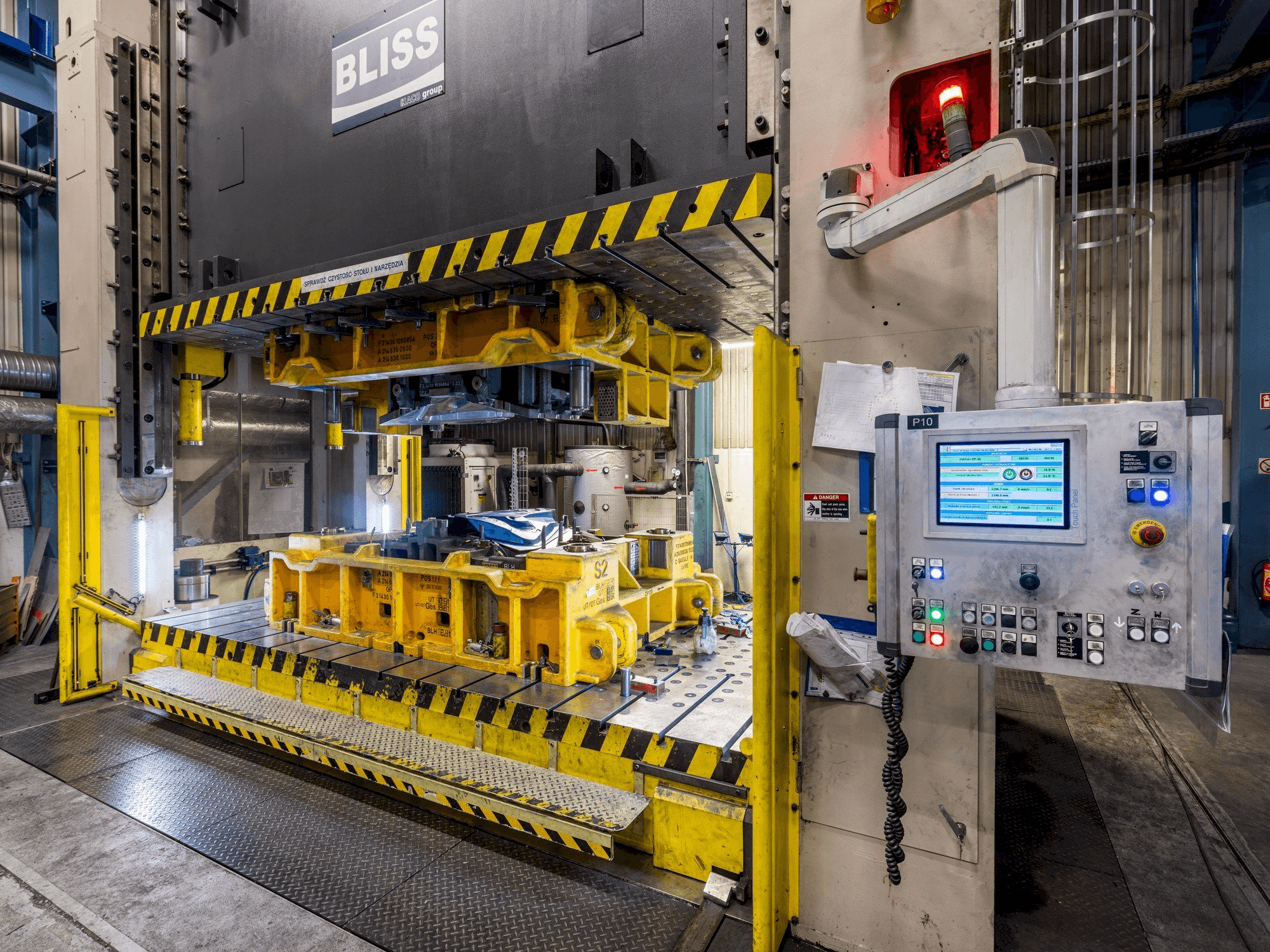

This BLISS-BRET PHD 1500 hydraulic tryout test press machine was manufactured in the year 2017 in France and has 4500 production hours. It is equipped with a PLC Siemens S7 – IM151 CPU Profinet (ET200S series) control unit. The machine has a maximum pressing force (downward): 15,000 kN and maximum pressing force (upward): 500 kN. It includes a lighting of working area inside press LED, Die rework (die-spotting) and a Fonko MAXA HWA-A/ chilled water generator SD 0385 MN AG.
Overview
- brand: BLISS-BRET
- year: 2017
- MODEL: PHD 1500
- production hours: 4500
- application type: Other Sheet Metal Machinery
- Location: Poland
- machine type: Sheet Metal Machine
- control unit brand: SIEMENS
Technical Information - BLISS-BRET PHD 1500
Control Unit
- Control Brand: SIEMENS
- Control Model: IM151 CPU Profinet (ET200Sseries)
Dimensions
- Table Length: 5000 mm
- Table Width: 2500 mm
Technical Specification
- Pressing Force: 500 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
- Adjustable speed down: 0 to 60 mm/s , adjustable speed up 0 to 60 mm/s
- Cushion strength: 5000 kn ,cushion stroke: 300 mm ,cushion area stroke: 4350 x 1850 mm
- Pin spacing: 150x150 mm
- Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
- Hydraulic drive for maintaining parallelism
- Slider/bottom + vibration damping slider / table parallelism function yes
- Vibration damping function during detection yes
- Parallelism cylinders on press bed 4 x 2250 kn, stroke of parallelism cylinders 150
- Movable table plate
Technical Machine Benefits
- Maximum slide stroke: 1400 mm
- Master cylinders 2: (570/545 mm)
- Maximum distance slider from table: 2200 mm ,minimum distance slider from table: 800 mm
- Front distance between columns: 5250 mm
- Lateral distance between columns: 1500 mm lateral distance between piston rods: 1150 mm
- Slider plate dimensions (left / right x front /back): 5000 x 2500 mm
- Slide approach speed: 350 mm/s ,adjustable working speed: 0 to 24 mm/s
- Maximum working speed at 1500t 11. 7 mm/s return speed: 250 mm/s
- Cushion strength: 5000 kn ,cushion stroke: 300 mm, cushion area stroke: 4350 x 1850 mm
- Pin spacing: 150x150 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
