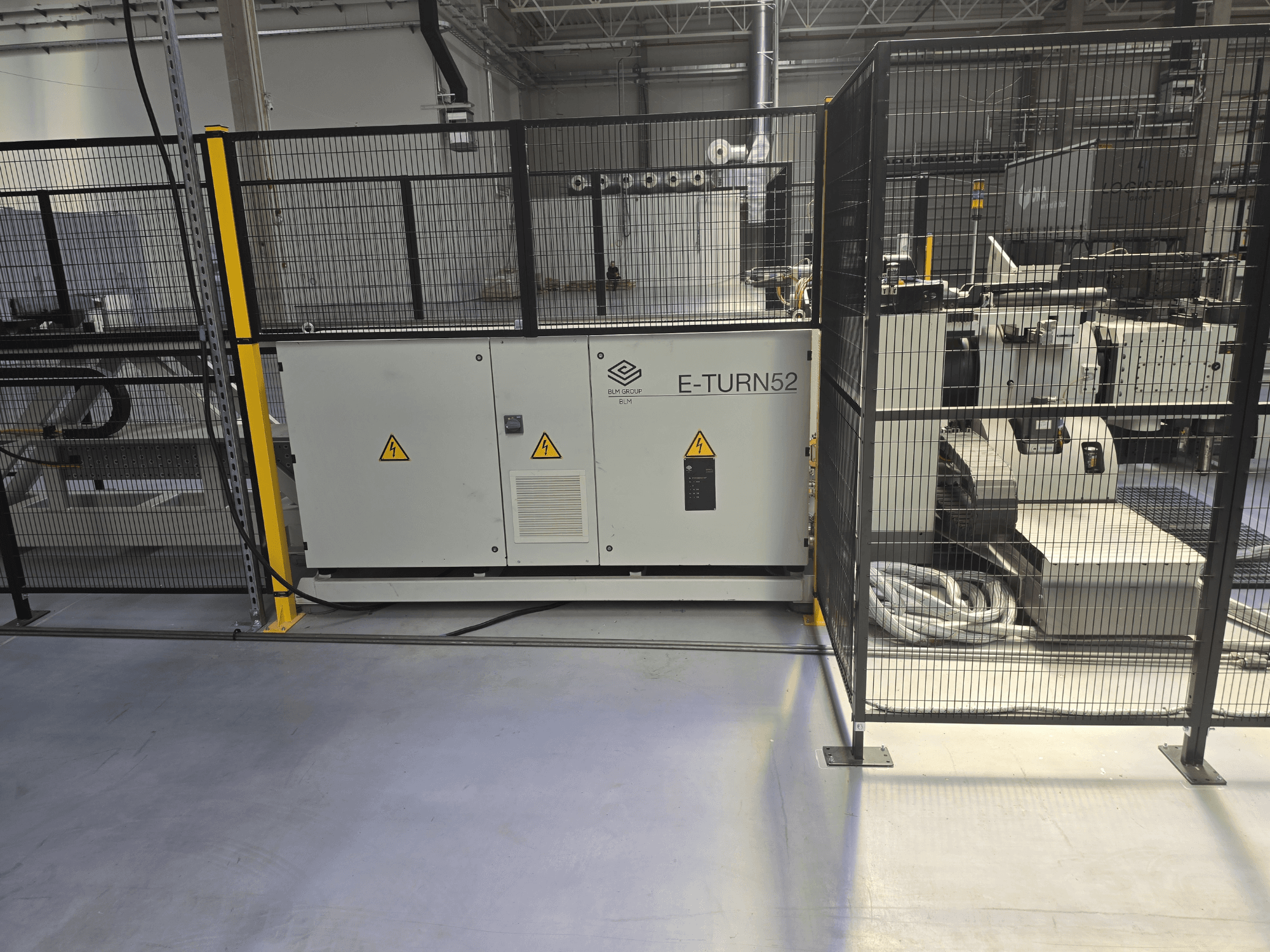

Die bending machine manufactured in 2022. This BLM E-TURN 52B features a Siemens Simotion CNC control system and offers advanced bending capabilities, including fixed radius, variable radius, and multi-radius bending. It is designed for low energy consumption and includes programmable booster and tooling stacks for enhanced performance. If you are looking to get high-quality tube bending capabilities, consider the BLM E-TURN 52B machine we have for sale. Contact us for further details.
Overview
- brand: BLM
- year: 2022
- MODEL: E-TURN 52B
- production hours: 8
- application type: Rolling
- Location: Poland
- machine type: Profile Bending Machine
- control unit brand: SIEMENS
Technical Information - BLM E-TURN 52B
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC HMI
Additional Information
Number of axes: 14
Energy consumption: Low
Bending direction: Right and left bending in-process (automatic direction change)
Bending capability: Fixed radius, variable radius, and multi-radius
Tool configuration: 3 tooling stacks + 3 additional tooling stacks
Tool stack height: 60 mm (2.4")
Tube capacity:
Carbon steel (FE37): max diameter 50.8 mm (2.0"), max wall thickness 1.5 mm (0.06"), based on RM 1.5D, Vy50%
Stainless steel (AISI 304): max diameter 50.8 mm (2.0"), max wall thickness 2.0 mm (0.08"), based on RM 2D, Vy50%
VGP3D software features:
3D graphical programming
Part feasibility verification with collision detection
Automatic cycle time calculation
Automatic machine cycle generation
Faster quotation preparation and production planning
Standard equipment:
Electrically driven pressure dies
Left and right counter-die supports
Programmable booster / variable-radius unit (booster force 20,000 N; booster speed 1,000 mm/min)
Mandrel bars: 10 mm (0.39"), 16 mm (0.63"), 24 mm (0.94")
CE compliant
Additional equipment
WELDET-07: Programmable weld seam positioning system (optical weld seam detection based on color contrast; compatible with ET30, ET35, ET40, ET52)
MC1052-01: Blind hole detection device
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
