- Used Lathe BOEHRINGER VDF 400 cm - 1997 - for sale | gindumac.com

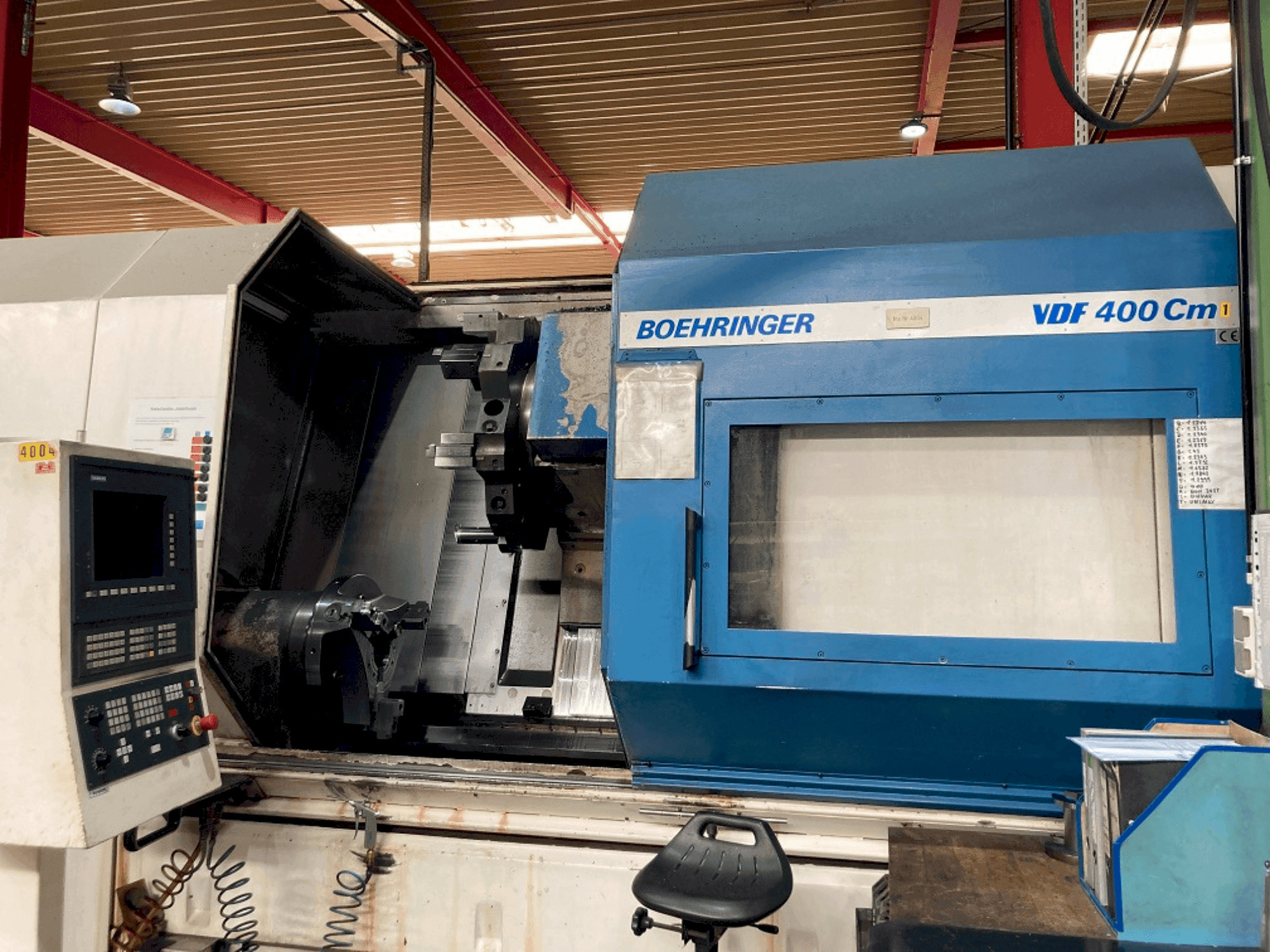

This BOEHRINGER VDF 400 cm lathe, manufactured in 1997, is adeptly equipped for demanding machining tasks. It features the Sinumerik 840C control system for precise operations and integrates a VDI 60 tooling interface. Key specifications include a swing diameter over bed of 785mm and a turning diameter over the bed slide of 700mm, with a turning length of 1000mm. Additional amenities such as a power chuck with a quick jaw change system, chip conveyor, and electronic handwheel enhance its robust capabilities. Contact us for further details regarding this lathe.
Overview
- brand: BOEHRINGER
- year: 1997
- MODEL: VDF 400 cm
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - BOEHRINGER VDF 400 cm
General Data
- Machine weight: 17800 KG
Control Unit
- Model: Sinumerik 840C
- Brand: SIEMENS
Main drive
- Spindle speed range: 7-2000 1/MIN
Media
- Chip conveyor: Yes
Additional Equipment
- - Tool carrier with 12 cylindrical shank holders diameter 60mm.
- - Tailstock
- - Pole-changing coolant pump
- - Electronic handwheel
Additional Information
- Technical Machine Benefits:
- - Vdi 60
- - Swing diameter over bed 785mm // turning diameter over bed slide 700mm
- - Turning length 1000mm
- - Main spindle head size 15
- - Clamping drive for chip removal
- - Power chuck 3 fnc 500-125 forkardt with quick jaw change system
- - Forkardt 3fnc 500 125 three-jaw chuck
- - MACHINE STILL UNDER POWER
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
