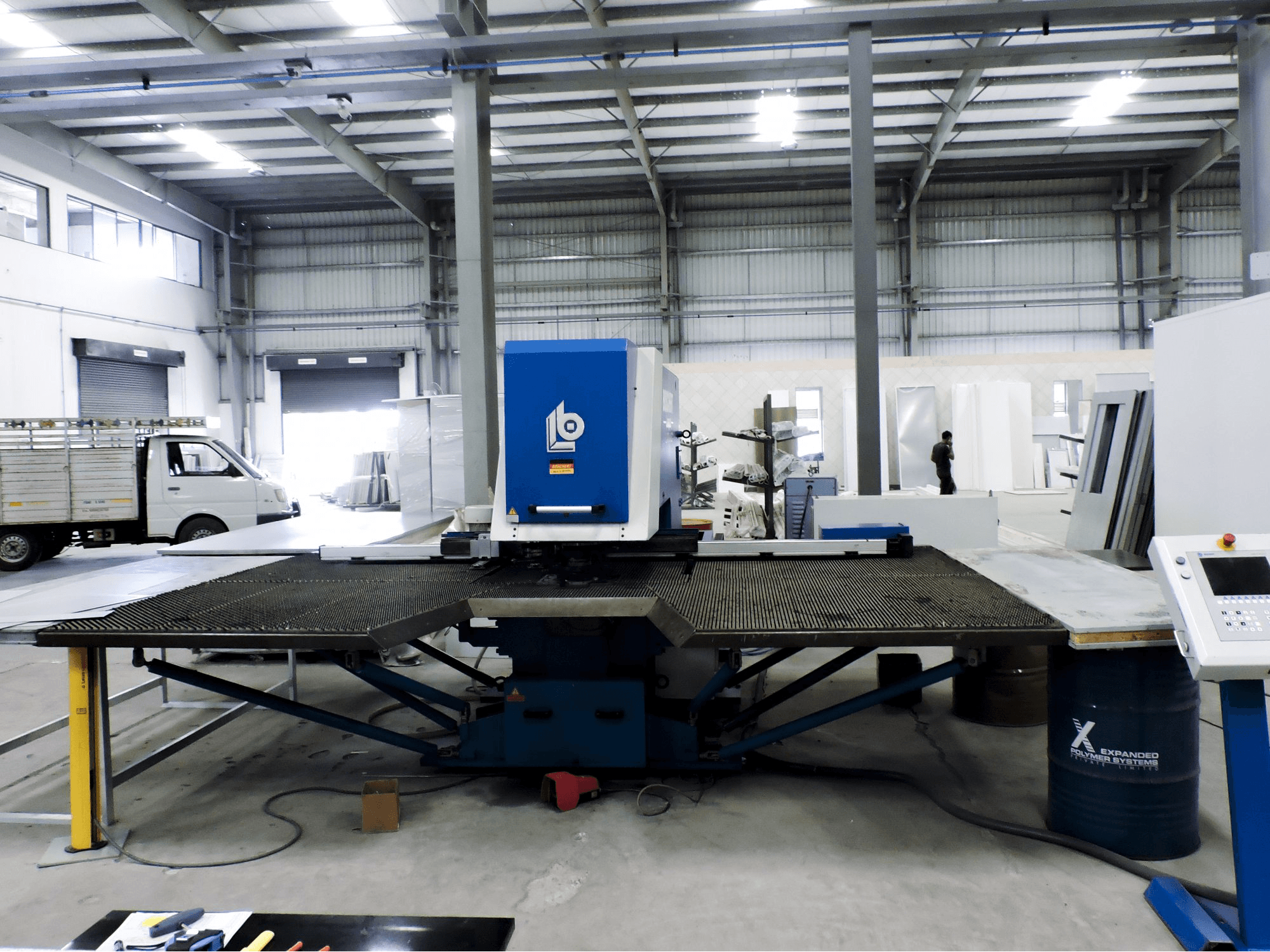

Boschert Compact 1250 Rotation Turret Punching Machine

This Boschert Compact 1250 Rotation Turret Punching Machine from 2011 has a production record of 5464 hours. Operated through a Boschert Control unit, the machine comes with a 10x Tool set and a Metalix Software V11 as additional equipment. Upon request, a stabilizer and compressor can be included as well. All tools in the Boschert Compact 1250 Rotation machine are Auto Index, and aside from its low power consumption, the machine stands out for its flexibility: sheets of up to 1350 mm in width can be punched.

Overview

brand: BOSCHERT
year: 2011
MODEL: Compact 1250 Rotation
production hours: 5464
application type: Punching
Location: India
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCHERT

Technical Information - BOSCHERT Compact 1250 Rotation

General Data

Measurements width: 4100 mm
Measurements depth: 4600 mm
Measurements height: 2200 mm
Machine weight: 10000 kg

Control Unit

Interface: RS-232
Brand: BOSCHERT

Movement

X-AXIS Movement: 2150 mm
Y-AXIS Movement: 1350 mm

Table

Outer length: 4600 mm
Outer width: 4100 mm
Height adjustment: 2200 mm
Inner length: 2100 mm
Inner width: 1350 mm

Tools

Slots in storage: 7
Max tool diameter: 13 mm
Max tool length: 30 mm

Media

Main electronic connection: 400 V
Power consumption: 16 kVA
Air pressure: 5-6 bar
Oil tank: 250 L

Additional Equipment

- 10x Toolset
- Metalix Software V11
- Stabilizer (upon request)
- Compressor (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
