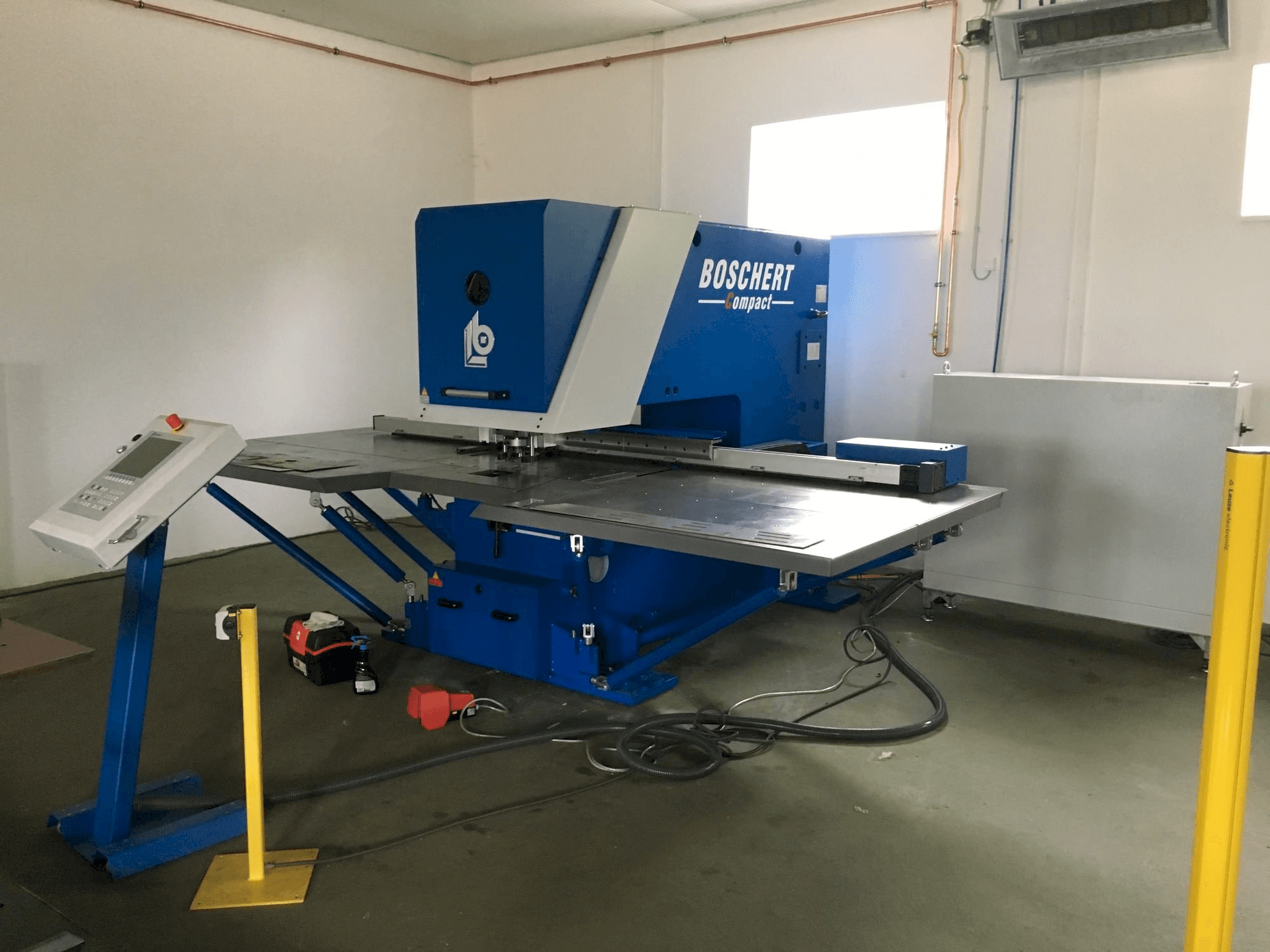

BOSCHERT - Compact 750HU-PUN-BOS-2018-00001

Additional Equipment

• - Stripper holder with slots for pins
• - Punch adjustment ring for punches up to diam. 30mm
• - Punch adjustment ring for punches over diam. 30mm
• - Punch holder for needles up to 6mm
• - Punch holder for needles up to 10.5mm
• - Punch adjustment unit for rectangle. oblong and square tools

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Punching force up to 40 tons
  • - Punching depth: 750 mm
  • - Maximum punching diameter: 105 mm
  • - Maximum stroke length: 90 mm
  • - Maximum cutting material thickness for normal steel: 6 mm
  • - Nibbling sequence: 3 mm
  • - Table height: 905 mm
  • - Positioning accuracy: 0. 1 mm // x-axis movement speed: 1,000 mm/s // y-axis movement speed: 1,000 mm/s // stroke rate at 20mm stroke: 155 strokes/minute
  • - Displacement x: 0-810 mm, y: 0-2080 mm
  • - Maximum positioning speed on the x-axis: 60 meters/minute // maximum positioning speed on the y-axis: 30 meters/minute // positioning accuracy for sheet movement: 0. 1 mm
• Qualitative Machine Benefits:
  • - Steel machine table with a gritted surface
  • - C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space
  • - Hydraulic operation for adequate force even with large sheet thicknesses
  • - Programmable stroke length adjustment // photocell workspace protection
  • - Sheet lifter device with 2 pneumatic cylinders for movement
  • - Multi-tool memory expansion with usb and lan connections for labod control
  • - Automatic repositioning up to a maximum of x-9000mm
  • - Two guide rails on the left and right sides for precise suspension of the axes // adjustable positioning speed allows manual movement of the axes in any direction
  • - Screwing and drilling attachment // fast hydraulic / 800 strokes at marking
  • - Automatic clamp positioning // marking device

Extra information

• - Two-axis graphical CNC control system LABOD PC // Waste removal suction // Spray lubrication // Revotool without rotation for standard head // Revotool index only for rotation // Balls brushes in the table // Cnc / had software to import dxf files // CE compliance
