BOY 12A

Photo Gallery

BOY - 12ADE-INJ-BOY-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

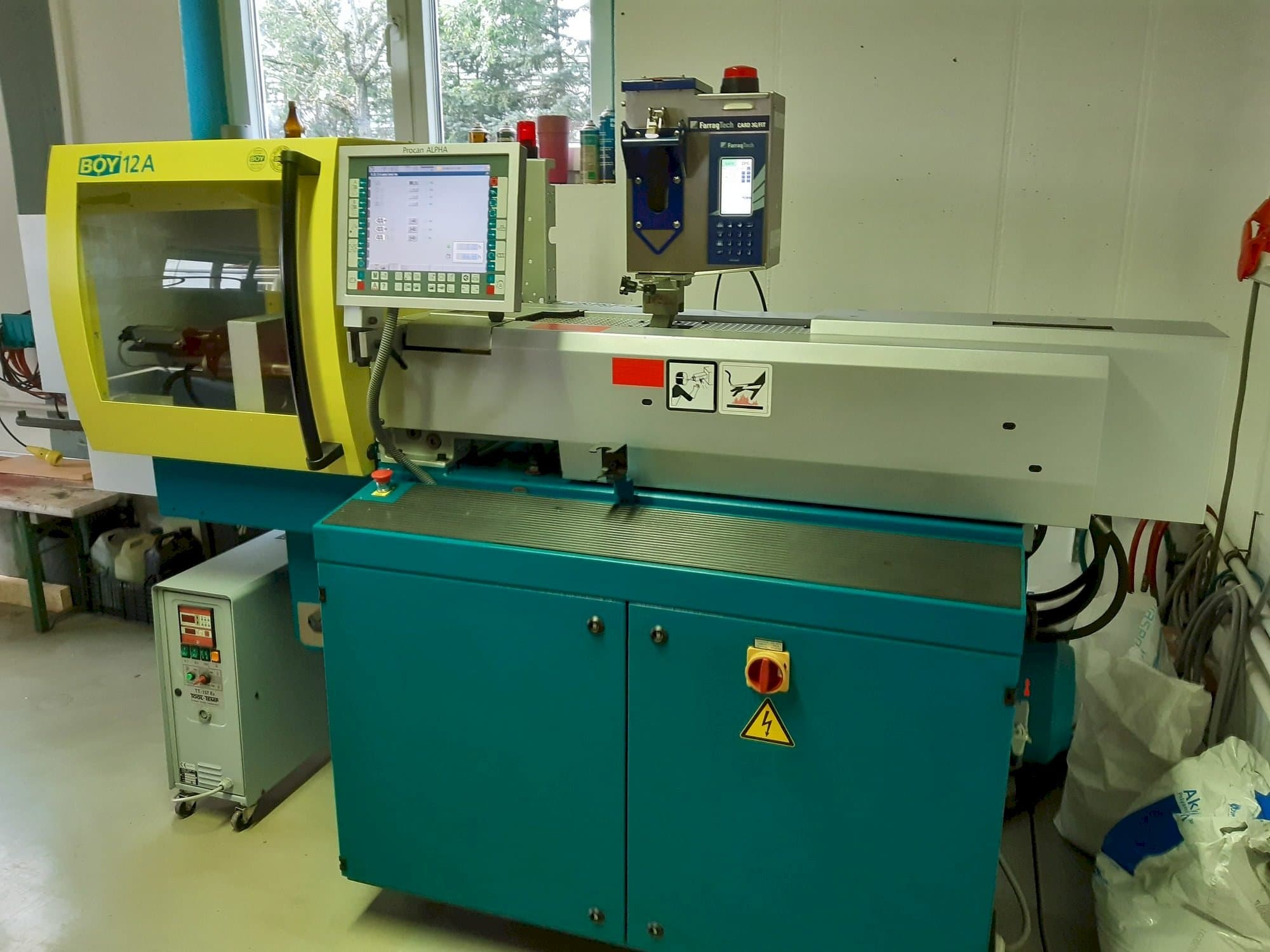

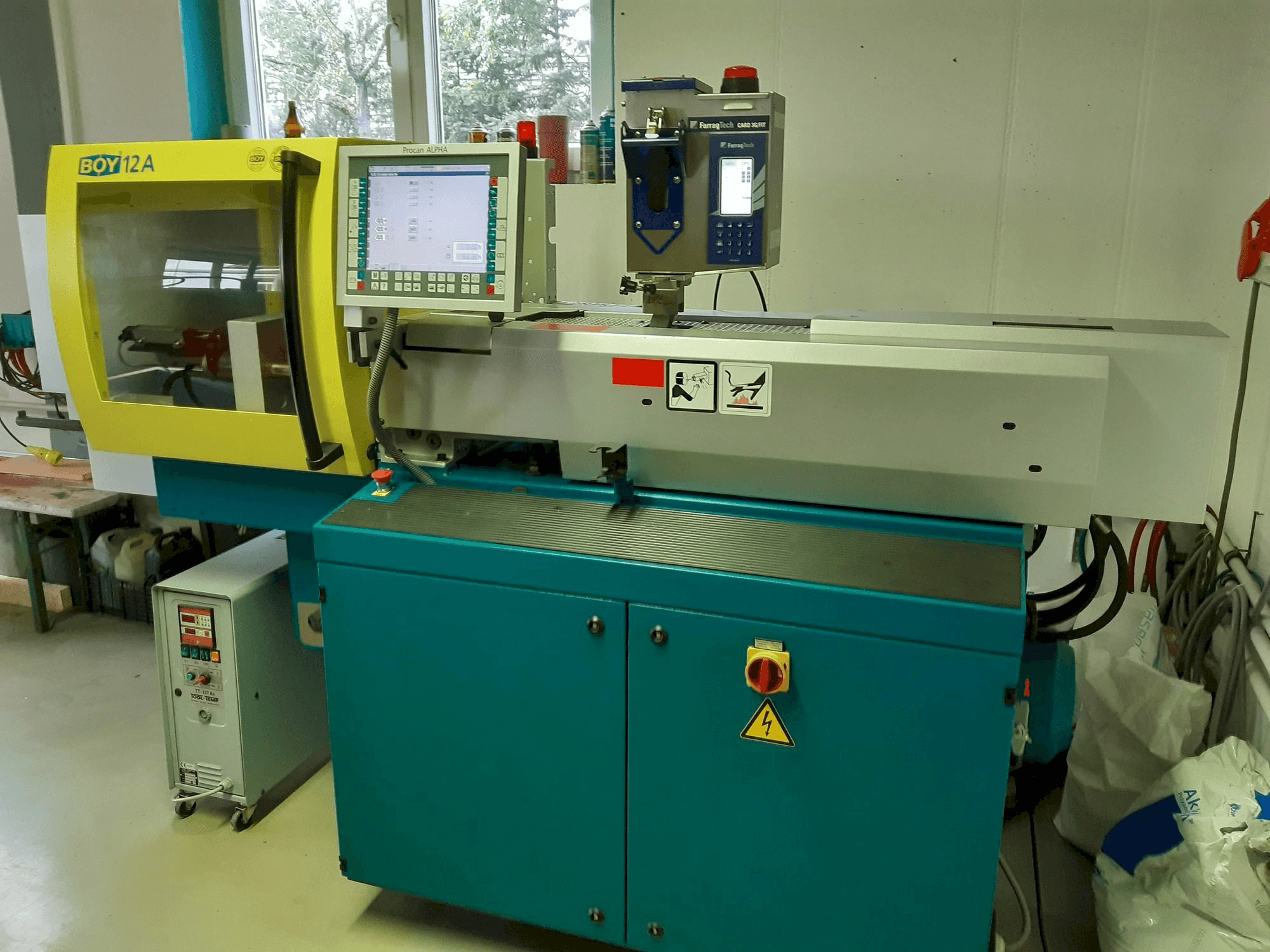

BOY 12A Injection moulding machine

This BOY 12A Injection moulding machine was made in 2007 in Germany and has 1350 production hours. It is equipped with a Procan ALPHA control unit. The machine has a clamping force of 120 kN, and includes a temperature tool GETECHA as additional equipment.

Overview

brand: BOY
year: 2007
MODEL: 12A
production hours: 1350
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - BOY 12A

General Data

Measurements width: 230 mm
Measurements depth: 600 mm
Measurements height: 600 mm
Machine weight: 770 kg

Control Unit

Model: ALPHA

Clamping unit

Clamping force: 120 kN

Additional Information

Additional equipment

Temperature Tool GETECHA

Machine Benefits

Technical Machine Benefits

Temperature range up to 90°c with water or up to 150°c with heat transfer oil
Self-optimising microprocessor controller
Temperature control
Heat output 9 kw in 3 steps switchable 3/6/9 kw for water operation
Cooling capacity
Pump capacity: 18'000 kcal /h at 90°c
Pressure operation - max. 4. 0 bar / max. 75 /min.
Suction operation - vacuum max. 8 mws
Circulating medium - 1/2" it, cooling water - 3/8' et
Silver grey ral 7001 / anthracite grey ral 7016

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
