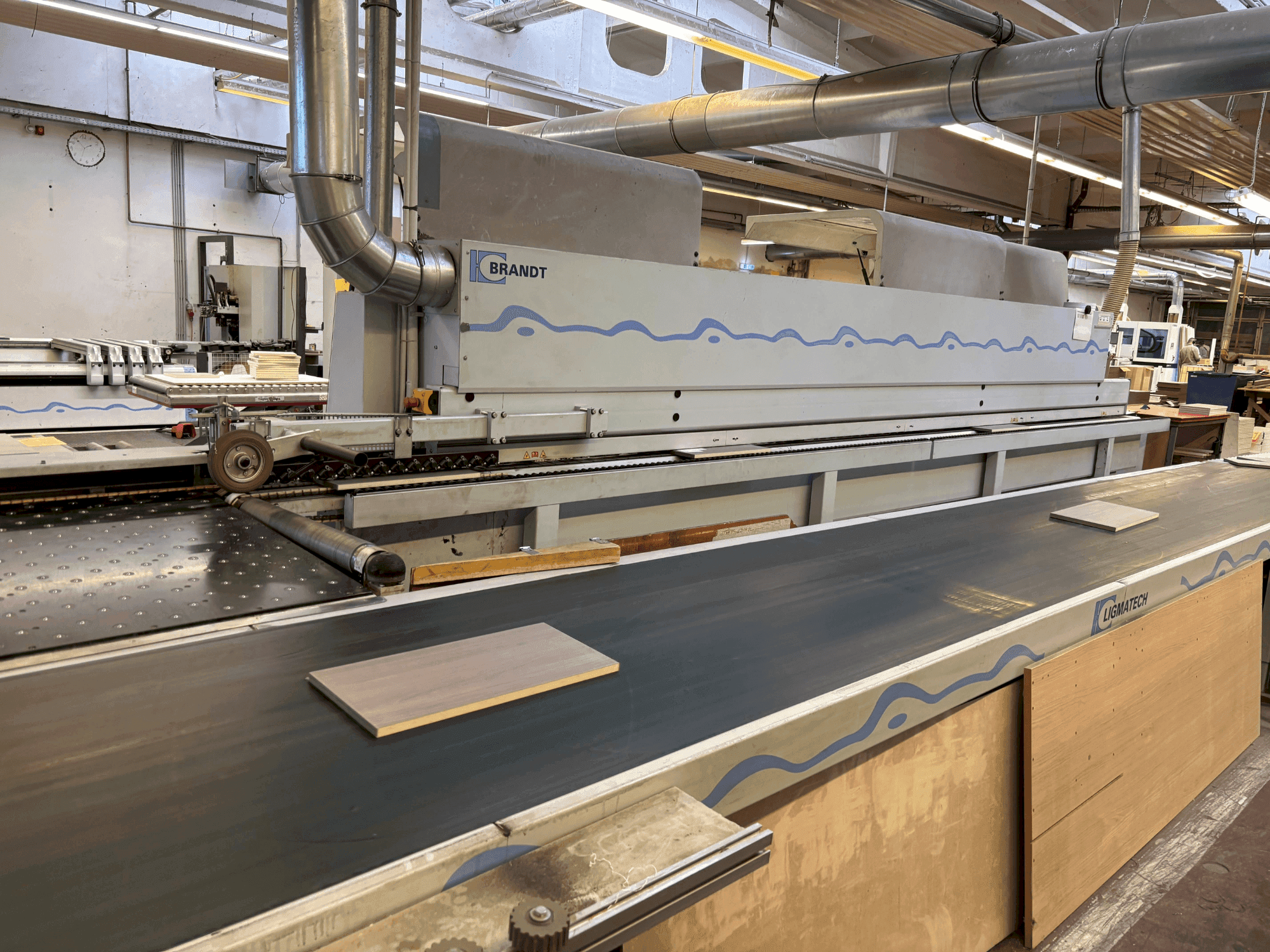

BRANDT - KDF 680IT-EDG-BRA-2008-00001

Additional Equipment

• - Adjustable Infeed Fence
• - Application of Separating Agent to Workpiece
• - Pneumatic Adjustment of End Trimming Unit (Bevel/Straight)
• - Pneumatic Adjustment of Scraper Blade
• - Pneumatic Adjustment of Milling Unit
• - Automation Package II for Dual-Router Machines
• - Pneumatic 2-Point Adjustment for End Trimming

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Edge thickness: 0. 4 – 12 mm
  • - Workpiece thickness: 8 – 60 mm
  • - Feed rate (variable): 8 – 16 m/min
  • - Electrical/mechanical interface: zhr01/zhr02/zhr15

Extra information

• - Tools Jointing Unit: 2 x 2.2 kW End Trimming Unit Bevel/Straight: 2 x 0.35 kW HL 6110 Pre-Milling Unit: 2 x 0.55 kW Milling Unit: 2 x 0.55 kW Universal Milling Unit: 1 x 4.0 kW UF 6200 Profile Trimming Unit (Top & Bottom): 2 x 0.35 kW FF 6220 Scraper with Quick-Change Heads ZK 6510 Flat Scraper for Glue Joint ZF 6600 Buffing Unit with 2 Motors FP 6810 Cleaning Agent Application
