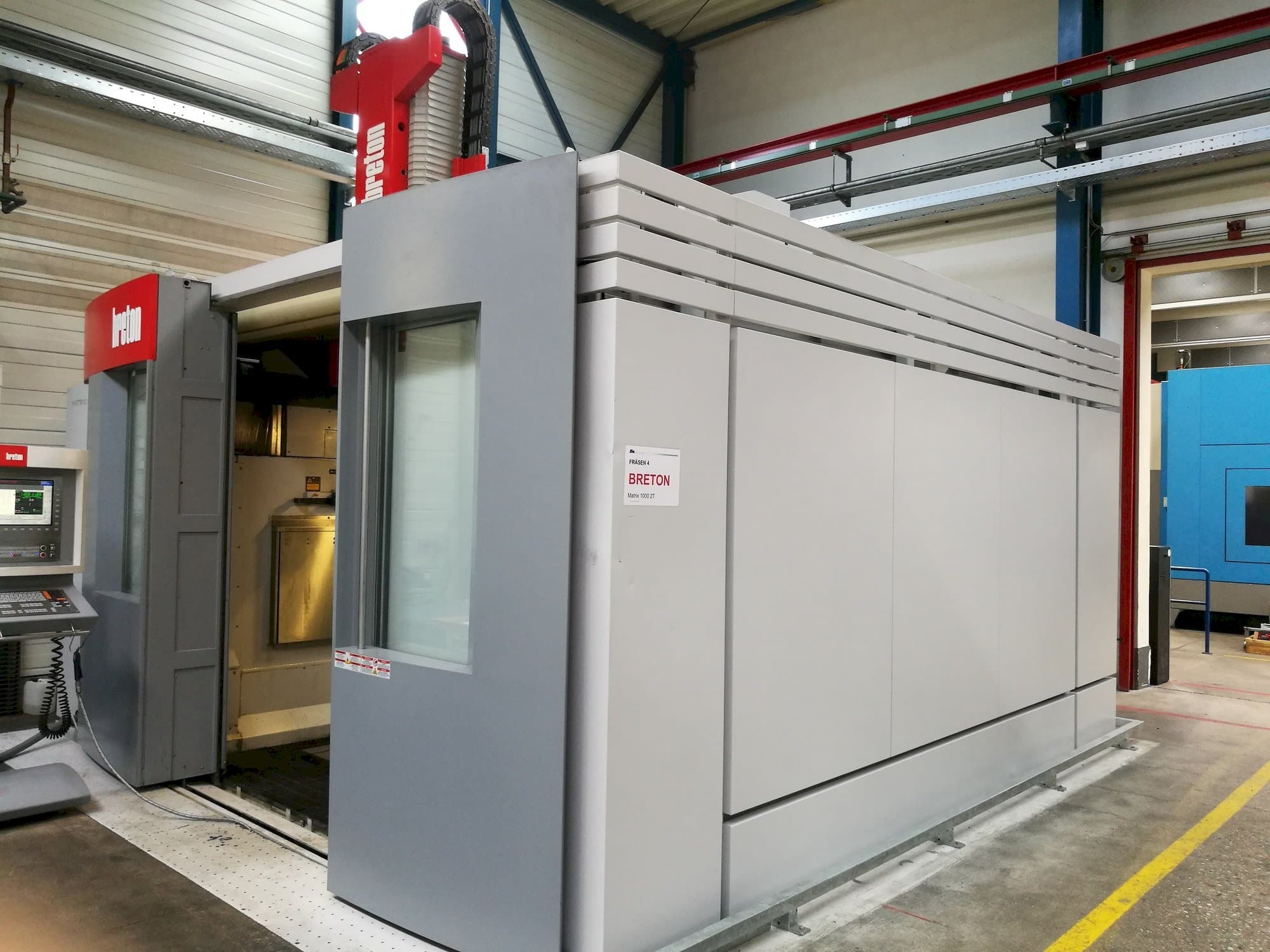

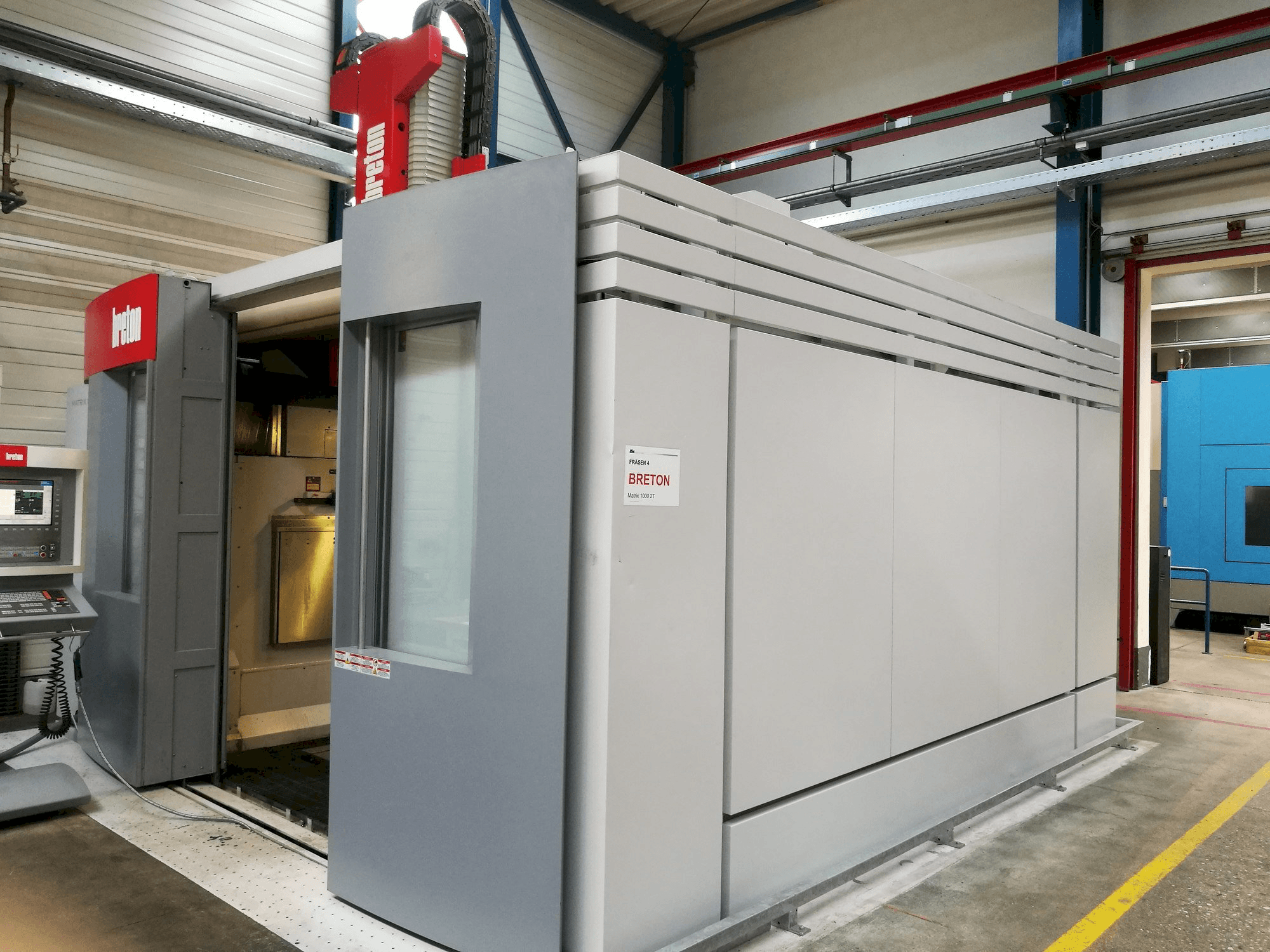

Front view of Breton Matrix 1000 2T DY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Breton Matrix 1000 2T DY

Photo Gallery

Breton - Matrix 1000 2T DYAT-MIL-BRE-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Breton Matrix 1000 2T DY Machining Center

This Breton Matrix 1000 2T DY Machining Center from 2012 was manufactured in Italy. It has a working history of 27556 production hours since then. It is operated through a Heidenhain TNC 530 control unit. This machine can works with a spindle speed range up to 18000 rpm. During the past, this Breton has mainly worked with aluminium and was well serviced. It includes a double chip conveyor, a 1000 l cooling fluid tank, a laser tool measuring systems.

Overview

brand: Breton
year: 2012
MODEL: Matrix 1000 2T DY
production hours: 27556
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Breton Matrix 1000 2T DY

General Data

Measurements width: 5700 mm
Measurements depth: 5300 mm
Measurements height: 5300 mm
Machine weight: 33000 kg

Control Unit

Model: TNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1000 mm
A-AXIS Movement: minus 105°, plus 120° MM
C-AXIS Movement: endless MM

Workpiece

Workpiece weight: 100000/m2 KG

Table

Outer length: 3000 mm
Outer width: 2000 mm
Number of tslots: 5x 22 H7/11
Distance between: 225 mm

Tools

Slots in storage: 60
Max weight: 10 kg
Max tool diameter: 90 (140) mm
Max tool length: 300 mm
Type of tool holder: HSK63A

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Double chip convoyer
- 1000 l cooling fluid tank
- High pressure cooling 40bar
- Laser Tool Measuring System (BLUM)
- Workpiece Measuring System
- Smog/Fog extraction system
- 3 clamping blocks

Additional Information

Machine history

Material type: Aluminium
End product: Moulds
Industries: Moulding industry

Machine Benefits

Technical Machine Benefits:
- - 5 axes simultan
- - 2016 - new spindle (gmn)
- - Big table and wide range of moving
- - Turning capabilities
Qualitative Machine Benefits:
- - Very good conditions
- - Well serviced
