➤ Used Bridgeport XP3-610 (VMC-610 XP3) | Machining Center

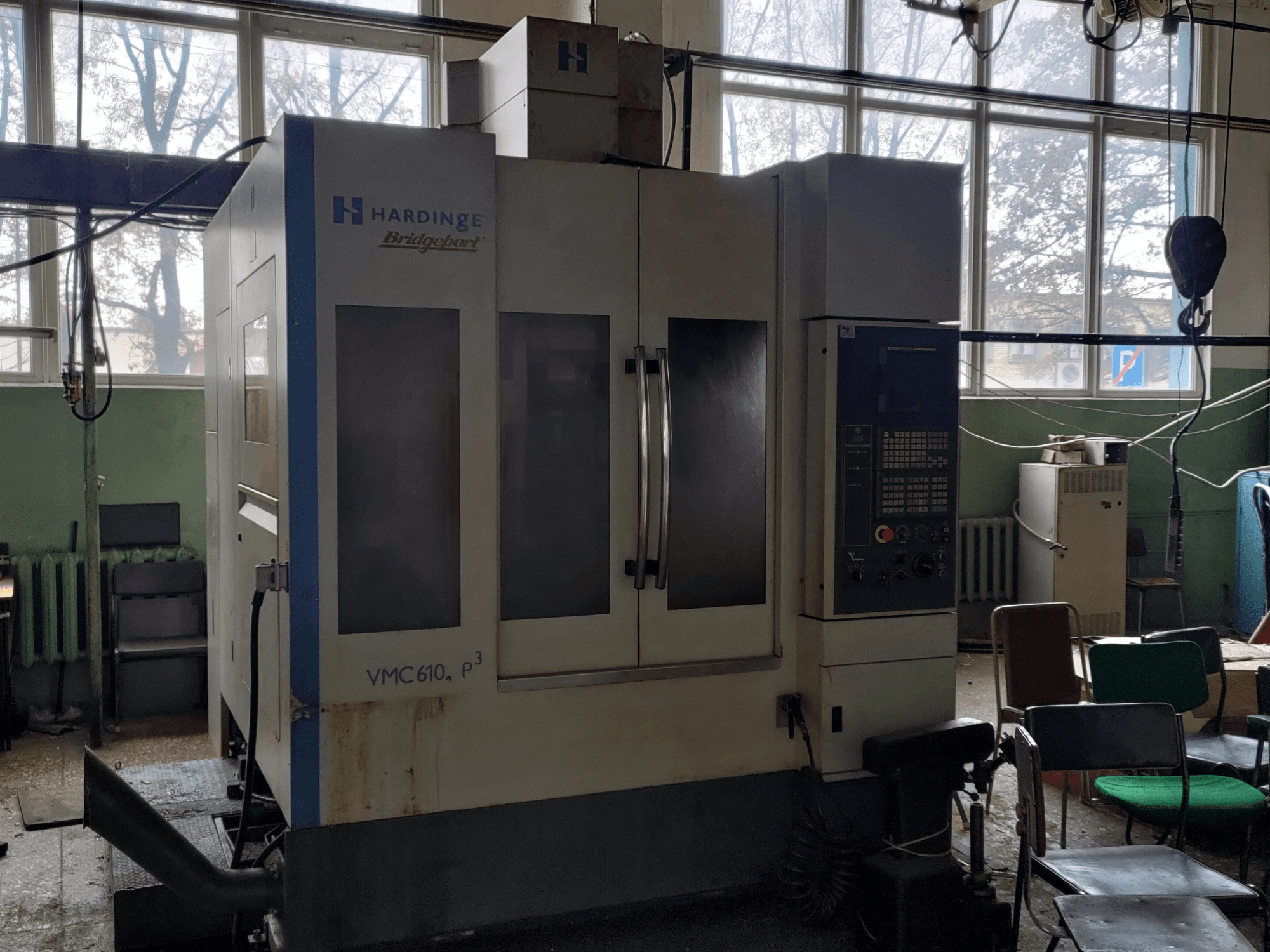

This 3-axis Bridgeport XP3-610 (VMC-610 XP3) was manufactured in 2005. It features an X-axis travel of 610 mm, Y-axis travel of 510 mm, and Z-axis travel of 510 mm. The machine includes a worktable with dimensions of 900 × 500 mm and a maximum table load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Bridgeport XP3-610 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Bridgeport
year: 2005
MODEL: XP3-610 (VMC-610 XP3)
application type: Milling
Location: Latvia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Bridgeport XP3-610 (VMC-610 XP3)

Control Unit

Control Brand: FANUC
Control Model: Series 18i-MB

Dimensions

Machine Weight: 6400 kg
Table Load: 500 kg

Movement

Number of Axes: 3
X-axis Travel: 610 mm
Y-axis Travel: 5110 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 21 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
Tool Stations: 24

Additional Information

Worktable size: 900 × 500 mm
Max workpiece weight: 500 kg
Rapid traverse (X): 43 m/min
Rapid traverse (Y): 43 m/min
Rapid traverse (Z): 36 m/min
Electrical: 400 V, 3-phase, 50 Hz
Full load current: 50 A
Short circuit interrupt rating: 415 V / 10 kA
Manufacturer address (nameplate): Hardinge Bridgeport, Whiteacres, Cambridge Rd, Whetstone, Leic, LE8 6BD, England

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
