BUCK - TBFZ 1600DE-OTH-BUC-2003-00001

Name: BUCK TBFZ 1600
Brand: BUCK
SKU: DE-OTH-BUC-2003-00001
Price: 74000 EUR
Availability: InStock

74,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used BUCK TBFZ 1600 - Drill For Sale | gindumac.com

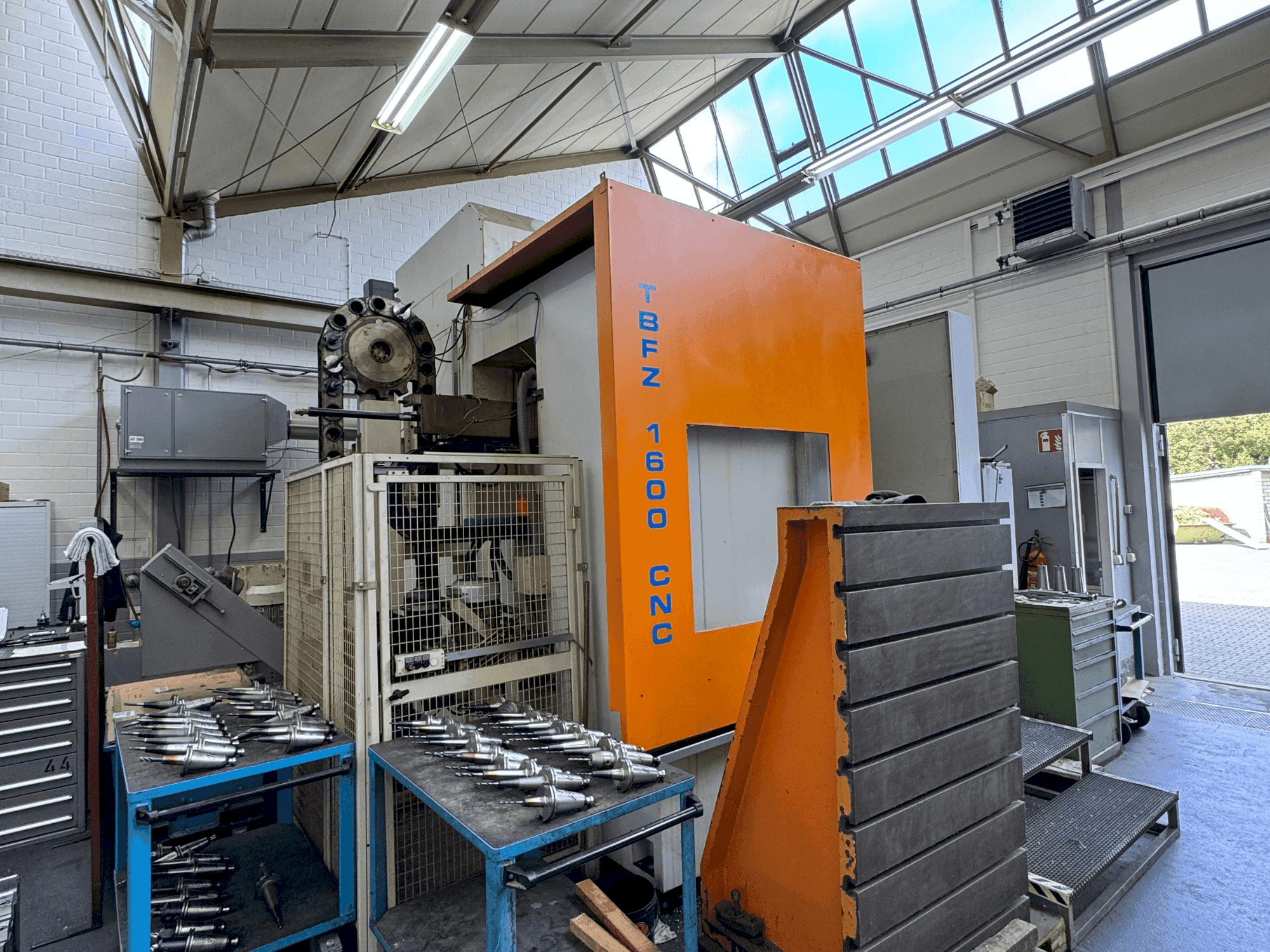

This 3-axis BUCK TBFZ 1600 drilling machine was manufactured in 2003. It features a robust table size of 1500x1500 mm, capable of handling loads up to 10,000 kg. The spindle supports SK 50 tool shanks and operates with a motor power of 30 kW, achieving speeds up to 10,000 rpm. Ideal for heavy-duty drilling, this machine offers a comprehensive range of motion with X, Y, Z, and W axes travel paths and a B-axis rotary table. Contact us for more information.

Overview

brand: BUCK
year: 2003
MODEL: TBFZ 1600
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)

Technical Information - BUCK TBFZ 1600

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Rapid traverse: 20000 mm/min
Z-AXIS Rapid traverse: 20000 mm/min

Table

Number of tslots: 5
Table load: 10000 kg

Tools

Type of tool holder: SK 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size (ixb): 1500x1500 mm
- - Slots (t-slot): 5x din 650-22 h12, 150 mm spacing
- - Tool clamping: hydraulic
- - Electrical connection: 400 v, 50 hz
- - Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar

Extra information

- Movement Feed Drive: Brushless AC servo motors Feed Rate: 0-20000 mm/min Rapid Traverse: X 20000 mm/min, Y+Z 20000 mm/min Manual Mode: 20000 mm/min Setup Mode: 0-2000 mm/min Workpiece Travel Path X-Axis: 1600 mm Travel Path Y-Axis: 1200 mm Travel Path Z-Axis: 500 mm Travel Path W-Axis: 1200 mm B-Axis: 360° (rotary table)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
